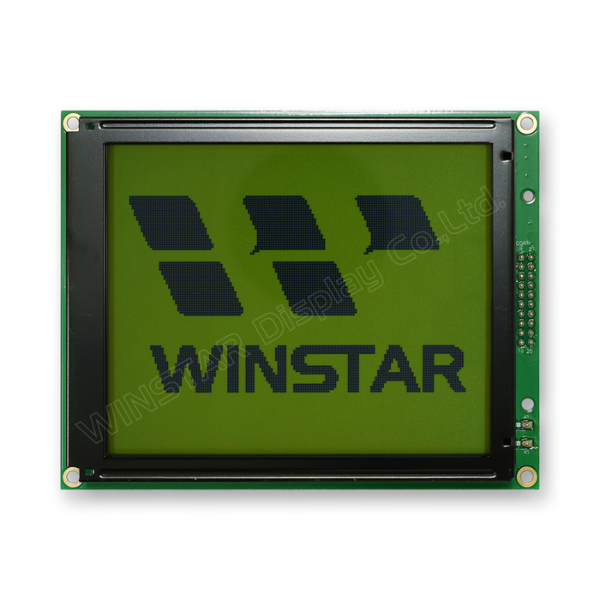

    WG160128B1-YYH-VZ#

    Graphic LCD 4.8" 160x128, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 8080, 6 O'clock, VNEG (Optimized Design)
    Manufacturer: Winstar
    SKU: WG160128B1-YYH-VZ#

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €68.70
    €61.80
    €58.10

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    €68.70 excl tax
    i h

    DESCRIPTION

    WG160128B1-YYH-VZ# is a monochrome graphic LCD 160x128 dot matrix display module featuring a COB (Chip on Board) structure with an integrated PCB. It offers a 4.84-inch diagonal active display area with module dimensions of 129 x 102 mm and an active area size of 95.96 x 75.76 mm.

    This WG160128B1-YYH-VZ# model is built with the RA6963 controller IC and communicates via an 8080 8-bit parallel interface. It supports a 5V power supply, with an optional 3.3V negative voltage operation. This LCD display 160x128 module is available in graphic mode or Character Generator mode (character font) options.

    It can operate in temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃.

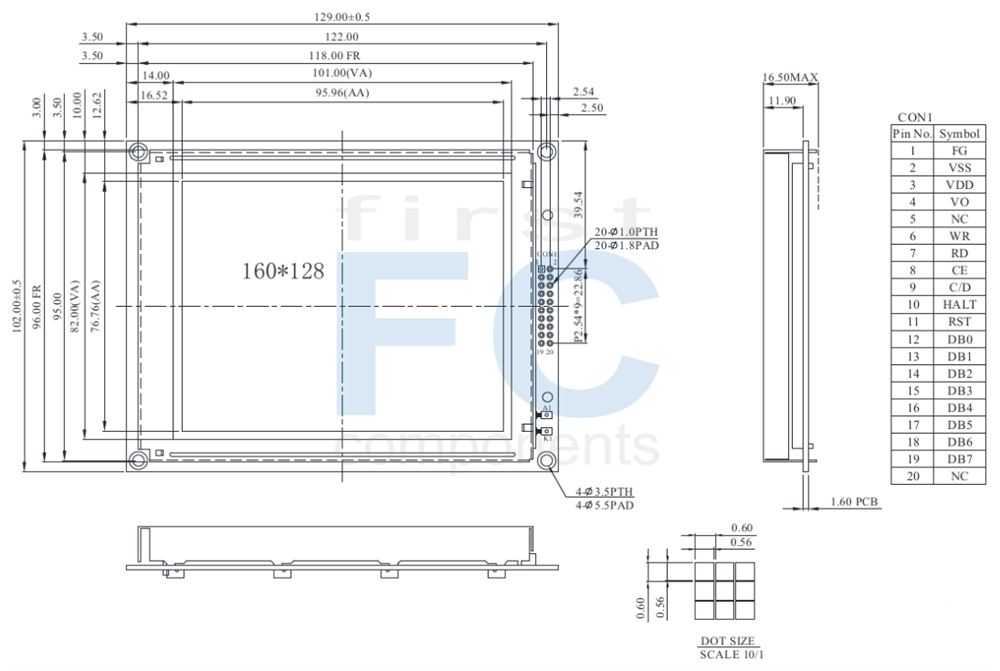

    DRAWING

    SPECIFICATIONS

    Mechanical Data

    ItemDimensionUnit
    Number of dots 160 x 128 -
    Module dimension 129.0 x 102.0 x 16.5(Max) mm
    View area 101.0 x 82.0 mm
    Active area 95.96 x 76.76 mm
    Dot size 0.56 x 0.56 mm
    Dot pitch 0.60 x 0.60 mm
    Duty 1/128
    Backlight Type LED
    IC RA6963
    Interface 8080



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃
    Input Voltage VIN -0.3 - VDD+0.3 V
    Supply Voltage For Logic VDD-VSS -0.3 - +7.0 V



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For Logic VDD-VSS - 4.5 5.0 5.5 V
    Supply Voltage For LCD VDD-V0 Ta=-20℃
    Ta=25℃
    Ta=70℃
    -
    18.6
    16.8
    -
    19.2
    -
    22.1
    19.8
    -
    V
    V
    V
    Input High Volt. VIH - 0.8VDD - VDD V
    Input Low Volt. VIL - 0 - 0.15VDD V
    Output High Volt. VOH - VDD-0.3 - VDD V
    Output Low Volt. VOL - 0 - 0.3 V
    Supply Current IDD - - 31 50 mA



    Interface Pin Function

    Pin No.SymbolLevelDescription
    1 FG - Frame ground
    2 VSS - Ground
    3 VDD - Power supply for logic
    4 VO - contrast adjustment
    5 VEE - Negative Voltage Output
    6 WR L Data write. Write data into RA6963when WR = L
    7 RD L Data read. Read data from RA6963when RD = L
    8 CE L Chip enable the controller RA6963
    9 C/D H / L WR=L , C/D=H : Command Write  C/D=L: Data write
    RD=L , C/D=H : Status Read  C/D=L: Data read
    10 HALT L Clock operating stop signal
    11 RST H / L Reset signal
    12 DB0 H / L Data bus line
    13 DB1 H / L Data bus line
    14 DB2 H / L Data bus line
    15 DB3 H / L Data bus line
    16 DB4 H / L Data bus line
    17 DB5 H / L Data bus line
    18 DB6 H / L Data bus line
    19 DB7 H / L Data bus line
    20 NC   No connection



    Products specifications
    Size 4.8"
    Resolution 160x128
    Active Area (mm) 95.96x76.76
    Dot Size 0.56x0.56
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 8080
    Display IC RA6963
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
