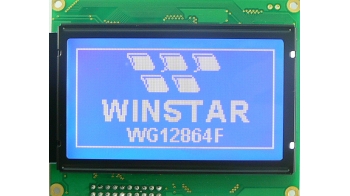

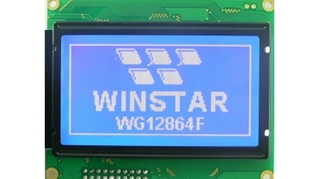

WG12864F-TMI-VZ#

Graphic LCD 2.9" 128x64, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, 6 O'clock, VNEG, Driver Neotec NT7086



DRAWING

SKU: WG12864F-TMI-VZ#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€30.20
€24.20
€23.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€30.20 excl tax

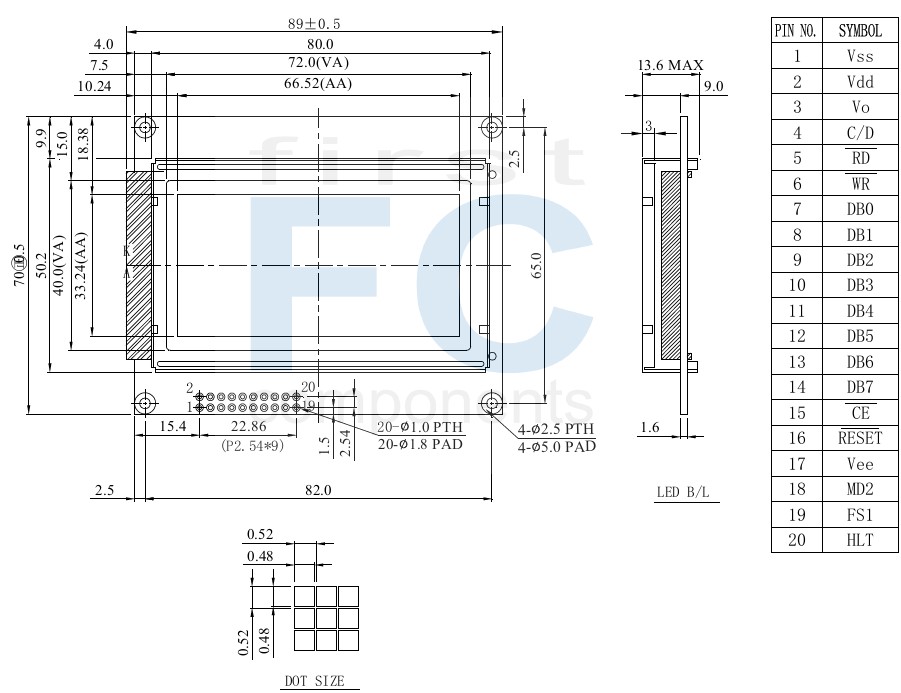

DRAWING

Date Notice Link/Description
2021/03/18 PCN RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
