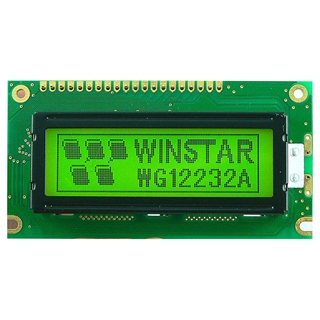

WG12232A-YYH-N#J
WG12232A-YYH-N#J
Graphic LCD 2.2" 122x32, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, No VNEG
DESCRIPTION
WG12232A is a monochrome 122x32 graphic LCD display module which is having the outline size 84 x 44 mm and viewing area size of 60 x 18 mm. This 122x32 graphic LCD display is built in with AiP31520 controller IC or compatible controller. It supports 6800 8-bit parallel interface and 5V power supply; it also Negative Voltage Generator 3V optional. The WG12232A type is available for internal oscillation, if customers require External oscillation 2KHz, please choose WG12232C type. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

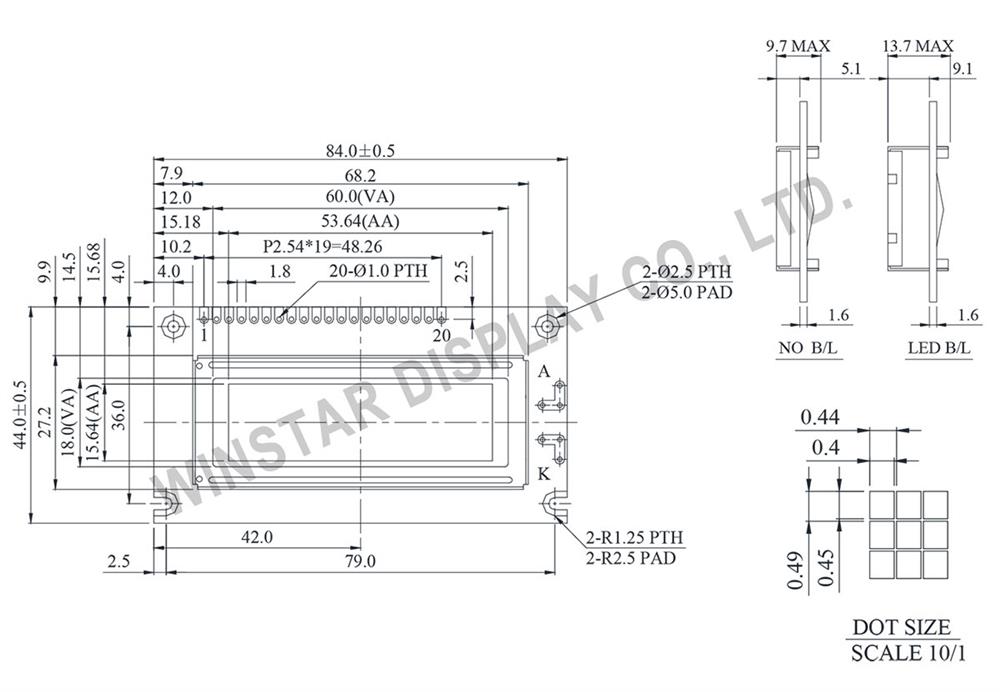

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
V
O
Contrast Adjustment
4
A0
Data/ Instruction select signal
5
CS1
Chip enable IC1
6
CS2
Chip enable IC2
7
NC/CL
No connection
8
NC/E
No connection
9
R/W
Read/Write select signal
10~17
DB0~DB7
Data bus line
18
RES
Controller reset signal, Active Low
19
A
Power supply for B/L +
20
K
Power supply for B/L -
Mechanical Data
Item
Standard Value
Unit
Module Dimension
84.0 × 44.0
mm
Viewing Area
60.0 × 18.0
mm
Mounting Hole
79.0 × 36.0
mm
Dot Pitch
0.44 × 0.49
mm
Dot Size
0.4 × 0.45
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
4.45
V
SKU:
WG12232A-YYH-N#J
Brand:
Winstar
Available:
No
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
GPHA101-2002A001R1BA-30 [+€0.80]
CSHA101-2002A001R1AB-30 [+€1.30]
GPHB101-2002A044A1BA-30 [+€1.20]
CSHA106-2002A001R1AB-30 [+€1.60]
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.80
€9.40
€9.10
€8.80
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€12.80 excl tax
Overview
Specifications
Download
Contact Us
DESCRIPTION
WG12232A is a monochrome 122x32 graphic LCD display module which is having the outline size 84 x 44 mm and viewing area size of 60 x 18 mm. This 122x32 graphic LCD display is built in with AiP31520 controller IC or compatible controller. It supports 6800 8-bit parallel interface and 5V power supply; it also Negative Voltage Generator 3V optional. The WG12232A type is available for internal oscillation, if customers require External oscillation 2KHz, please choose WG12232C type. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
V
O
Contrast Adjustment
4
A0
Data/ Instruction select signal
5
CS1
Chip enable IC1
6
CS2
Chip enable IC2
7
NC/CL
No connection
8
NC/E
No connection
9
R/W
Read/Write select signal
10~17
DB0~DB7
Data bus line
18
RES
Controller reset signal, Active Low
19
A
Power supply for B/L +
20
K
Power supply for B/L -
Mechanical Data
Item
Standard Value
Unit
Module Dimension
84.0 × 44.0
mm
Viewing Area
60.0 × 18.0
mm
Mounting Hole
79.0 × 36.0
mm
Dot Pitch
0.44 × 0.49
mm
Dot Size
0.4 × 0.45
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
4.45
V
Products specifications
Brand
Winstar
Size
2.2"
Resolution
122x32
Active Area (mm)
53.64x15.64
Dot Size
0.40x0.45
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Display Interface
6800
Display IC
AiP31520
Constructive Structure
COB
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
20
Pin Pitch
2.54mm
Preferred - Not Preferred
Not Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
2.2"
Resolution
122x32
Active Area (mm)
53.64x15.64
Dot Size
0.40x0.45
B/L color, LCD type
B/L yellow/green, STN yellow/green pos
Power supply
5V
Display Interface
6800
Display IC
AiP31520
Constructive Structure
COB
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
20
Pin Pitch
2.54mm
Preferred - Not Preferred
Not Preferred
Related products
GPHA101-2002A001R1BA-30
Pin Header - Straight Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 6mm)
From €0.40 excl tax
CSHA101-2002A001R1AB-30
Female Header - Straight Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6mm)
From €0.61 excl tax
GPHB101-2002A044A1BA-30
Pin Header - R/A Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3,20mm)
From €0.60 excl tax
CSHA106-2002A001R1AB-30
Female Header - Straight Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3-4,50mm)
From €0.76 excl tax
WG12232A-YYH-N#A
Graphic LCD 2.2" 122x32, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, No VNEG, IC SBN1661G
From €9.20 excl tax
