WFN0500DA2#000-FC

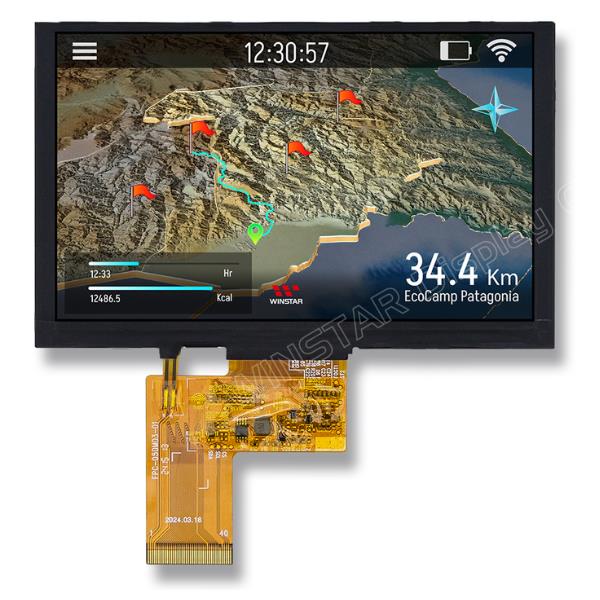

Picture of WFN0500DA2#000-FC Picture of WFN0500DA2#000-FC
TFT 5" 800x480 LCD Panel, Transflective, Interface RGB, 200cd/m², Wide view angle (IPS), Super extended Temperature, No touch

DESCRIPTION

The WFN0500DA2#000-FC is a 5-inch transflective color TFT display module that offers excellent sunlight readability and consistent viewing from all angles, thanks to its IPS panel. This module is well-suited for outdoor industrial devices, vehicle GPS displays, and portable equipment used in challenging environments.

Featuring an RGB interface and integrated JD9165 driver IC, the WFN0500DA2#000-FC is easy to integrate into space-constrained systems. The transflective display mode helps reduce power consumption while maintaining visibility in a wide range of lighting conditions, making it a reliable choice for compact and efficient HMI designs.

Key Features:

  • 5-inch transflective IPS TFT with 800x480 resolution
  • Wide viewing angles in both transmissive and reflective modes
    • Transmissive: 60/60/60/50 (U/D/L/R)
    • Reflective: 70/60/70/60 (U/D/L/R)
  • Brightness: 200 cd/m² for improved outdoor readability
  • Long-life LED backlight rated for 25,000 hours
  • Operating temperature: -30°C to +85°C (wide range)

With its sunlight-readable performance, low power consumption, and rugged specifications, the WFN0500DA2#000-FC is an ideal solution for engineers developing reliable HMI systems for outdoor or vehicle applications.

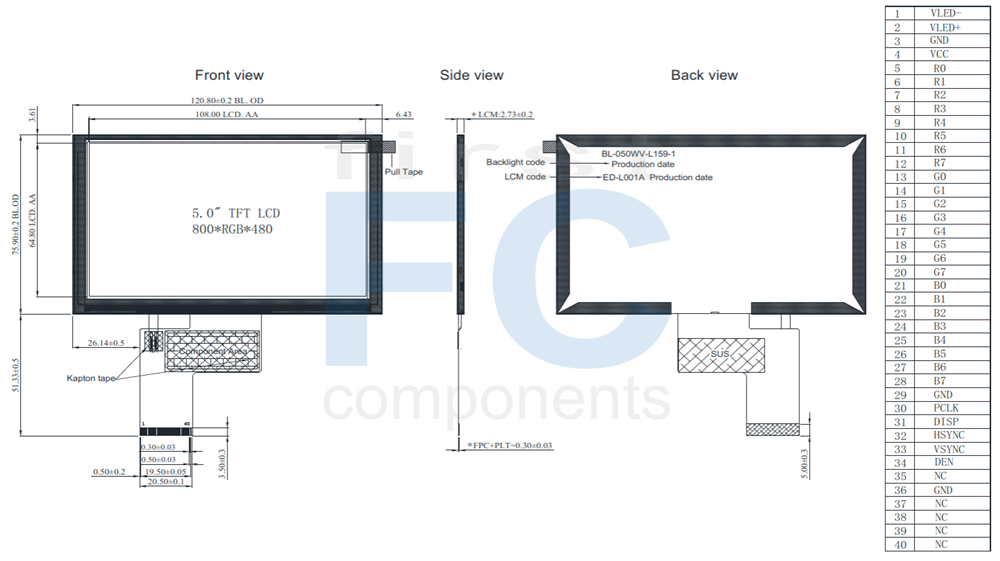

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 120.8 × 75.9 × 2.73 mm
Active area 108.0 × 64.8 mm
Pixel Pitch 0.135 × 0.135 mm
LCD type TFT, Normally Black, Transflective
Viewing angle: Trans： Typ. 60/60/60/50(U/D/L/R)
Ref： Typ. 70/60/70/60(U/D/L/R)
TFT Driver IC JD9165
TFT Interface RGB 24bits
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power Supply Voltage VDD 3.0 3.3 3.6 V
Power Supply Current IDD - 30 - mA
Logic Input High Voltage VIH 0.7VDD - VDD V
Logic Input Low Voltage VIL 0 - 0.3VDD V
Panel Power Consumption PVDD - 0.099 - W
Module Power Consumption PLCM - 1.719 - W


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 90 - mA
LED voltage VLED+ 16.8 18 19.2 V
Backlight Power consumption PLED - 1.62 - W
LED Life Time - 25,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin No.SymbolI/ODescription
1 VLED- P Power supply for backlight cathode
2 VLED+ P Power supply for backlight anode
3 GND P Power Ground
4 VDD P Power supply to the internal logic power regulator( 3.3V)
5-12 R0-R7 I Red data input.
13-20 G0-G7 I Green data input.
21-28 B0-B7 I Blue data input.
29 GND P Power Ground
30 PCLK I Pixel clock input pin, Negative polarity
31 DISP I Standby mode. Normally pulled high.
32 HSYNC I Horizontal sync signal, Negative polarity
33 VSYNC I Vertical sync signal, Negative polarity
34 DE I Data input enable. Display access is enabled when DE is “H”
35 NC - Dummy
36 GND P Power Ground
37 NC - Dummy
38 NC - Dummy
39 NC - Dummy
40 NC - Dummy


SKU: WFN0500DA2#000-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€53.20
€44.40
€33.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€53.20 excl tax

DESCRIPTION

The WFN0500DA2#000-FC is a 5-inch transflective color TFT display module that offers excellent sunlight readability and consistent viewing from all angles, thanks to its IPS panel. This module is well-suited for outdoor industrial devices, vehicle GPS displays, and portable equipment used in challenging environments.

Featuring an RGB interface and integrated JD9165 driver IC, the WFN0500DA2#000-FC is easy to integrate into space-constrained systems. The transflective display mode helps reduce power consumption while maintaining visibility in a wide range of lighting conditions, making it a reliable choice for compact and efficient HMI designs.

Key Features:

  • 5-inch transflective IPS TFT with 800x480 resolution
  • Wide viewing angles in both transmissive and reflective modes
    • Transmissive: 60/60/60/50 (U/D/L/R)
    • Reflective: 70/60/70/60 (U/D/L/R)
  • Brightness: 200 cd/m² for improved outdoor readability
  • Long-life LED backlight rated for 25,000 hours
  • Operating temperature: -30°C to +85°C (wide range)

With its sunlight-readable performance, low power consumption, and rugged specifications, the WFN0500DA2#000-FC is an ideal solution for engineers developing reliable HMI systems for outdoor or vehicle applications.

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 120.8 × 75.9 × 2.73 mm
Active area 108.0 × 64.8 mm
Pixel Pitch 0.135 × 0.135 mm
LCD type TFT, Normally Black, Transflective
Viewing angle: Trans： Typ. 60/60/60/50(U/D/L/R)
Ref： Typ. 70/60/70/60(U/D/L/R)
TFT Driver IC JD9165
TFT Interface RGB 24bits
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power Supply Voltage VDD 3.0 3.3 3.6 V
Power Supply Current IDD - 30 - mA
Logic Input High Voltage VIH 0.7VDD - VDD V
Logic Input Low Voltage VIL 0 - 0.3VDD V
Panel Power Consumption PVDD - 0.099 - W
Module Power Consumption PLCM - 1.719 - W


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 90 - mA
LED voltage VLED+ 16.8 18 19.2 V
Backlight Power consumption PLED - 1.62 - W
LED Life Time - 25,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin No.SymbolI/ODescription
1 VLED- P Power supply for backlight cathode
2 VLED+ P Power supply for backlight anode
3 GND P Power Ground
4 VDD P Power supply to the internal logic power regulator( 3.3V)
5-12 R0-R7 I Red data input.
13-20 G0-G7 I Green data input.
21-28 B0-B7 I Blue data input.
29 GND P Power Ground
30 PCLK I Pixel clock input pin, Negative polarity
31 DISP I Standby mode. Normally pulled high.
32 HSYNC I Horizontal sync signal, Negative polarity
33 VSYNC I Vertical sync signal, Negative polarity
34 DE I Data input enable. Display access is enabled when DE is “H”
35 NC - Dummy
36 GND P Power Ground
37 NC - Dummy
38 NC - Dummy
39 NC - Dummy
40 NC - Dummy


Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable Transflective
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
