WFN0460DB2#0P1-FC

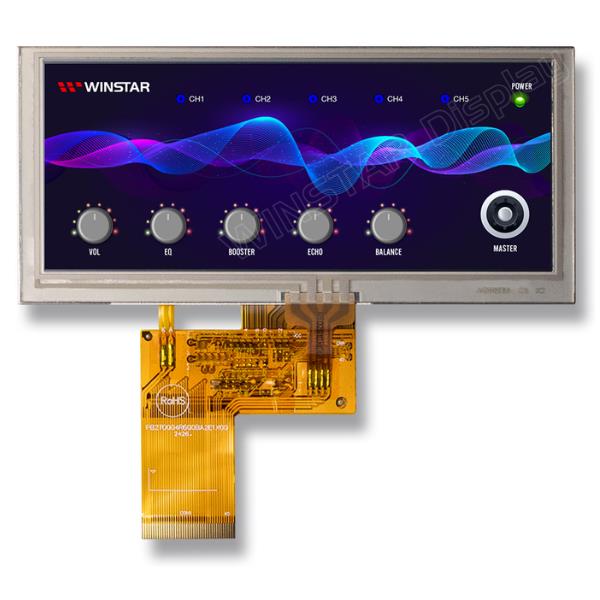

Picture of WFN0460DB2#0P1-FC Picture of WFN0460DB2#0P1-FC
TFT 4.6" 800x320, Bar Type, Interface RGB, 350cd/m², Wide Viewing Angle (IPS), Resistive touch panel

DESCRIPTION

The WFN0460DB2#0P1-FC is a 4.6-inch bar type TFT LCD display with 800x320 resolution, using an IPS panel for wide viewing angles (80/80/80/80) and 350 cd/m² brightness. It adopts a normally black, transmissive TFT with the ST7262 driver IC and supports 24-bit RGB interface.

This model features a resistive touch panel, providing precise touch input suitable for applications where resistive touch is preferred.

With compact dimensions, bar-type aspect ratio, and anti-glare surface treatment, this display is ideal for horizontal layouts or limited spaces. It is particularly applicable in DJ mixers, digital keyboards, audio mixers, industrial control systems, medical devices, self-service kiosks, and other equipment requiring reliable resistive touch functionality.

For applications requiring capacitive touch and higher brightness, the WFN0460DB2#0SP2-FC model from the same series is available as an alternative.

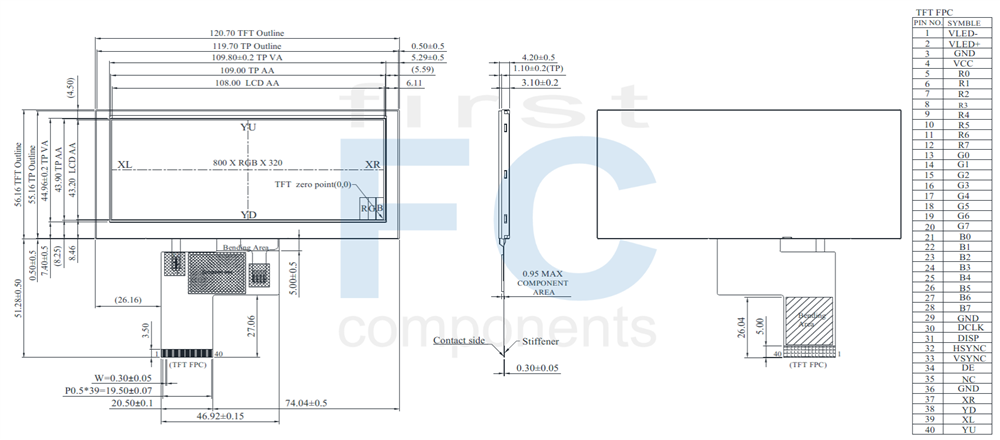

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 4.6 inch
Dot Matrix 800 × RGB × 320(TFT) dots
Module dimension 120.7 (W) × 56.16 (H) × 4.2 mm
Active area 108.0 (W) × 43.2 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio Bar Type
TFT Driver IC ST7262 or equivalent
TFT Interface 24 bit R.G.B.
Touch Panel Resistive Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 56.0 85.0 mA


Backlight Driving Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VLED 16.2 18.0 19.8 V
Current for LED backlight ILED - 40 - mA
LED life time - 50,000 - - Hr



Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VCC Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 DCLK Sample clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal applied to the RGB interface, default is negative polarity.
33 VSYNC Vertical sync signal applied to the RGB interface, default is negative polarity.
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection
SKU: WFN0460DB2#0P1-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€41.30
€34.40
€30.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€41.30 excl tax

DESCRIPTION

The WFN0460DB2#0P1-FC is a 4.6-inch bar type TFT LCD display with 800x320 resolution, using an IPS panel for wide viewing angles (80/80/80/80) and 350 cd/m² brightness. It adopts a normally black, transmissive TFT with the ST7262 driver IC and supports 24-bit RGB interface.

This model features a resistive touch panel, providing precise touch input suitable for applications where resistive touch is preferred.

With compact dimensions, bar-type aspect ratio, and anti-glare surface treatment, this display is ideal for horizontal layouts or limited spaces. It is particularly applicable in DJ mixers, digital keyboards, audio mixers, industrial control systems, medical devices, self-service kiosks, and other equipment requiring reliable resistive touch functionality.

For applications requiring capacitive touch and higher brightness, the WFN0460DB2#0SP2-FC model from the same series is available as an alternative.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 4.6 inch
Dot Matrix 800 × RGB × 320(TFT) dots
Module dimension 120.7 (W) × 56.16 (H) × 4.2 mm
Active area 108.0 (W) × 43.2 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio Bar Type
TFT Driver IC ST7262 or equivalent
TFT Interface 24 bit R.G.B.
Touch Panel Resistive Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 56.0 85.0 mA


Backlight Driving Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VLED 16.2 18.0 19.8 V
Current for LED backlight ILED - 40 - mA
LED life time - 50,000 - - Hr



Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VCC Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 DCLK Sample clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal applied to the RGB interface, default is negative polarity.
33 VSYNC Vertical sync signal applied to the RGB interface, default is negative polarity.
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection
Products specifications
Brand Winstar
Size 4.6"
Resolution 800x320
Active Area (mm) 108.00x43.20
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.6"
Resolution 800x320
Active Area (mm) 108.00x43.20
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
