WFN0286DA2#0PW0-FC

Picture of WFN0286DA2#0PW0-FC Picture of WFN0286DA2#0PW0-FC
TFT 2.86'' 376x960 Bar Type, Interface RGB+SPI, 600cd/m², Wide View Angle (IPS), Super extended Temperature, No touch

DESCRIPTION

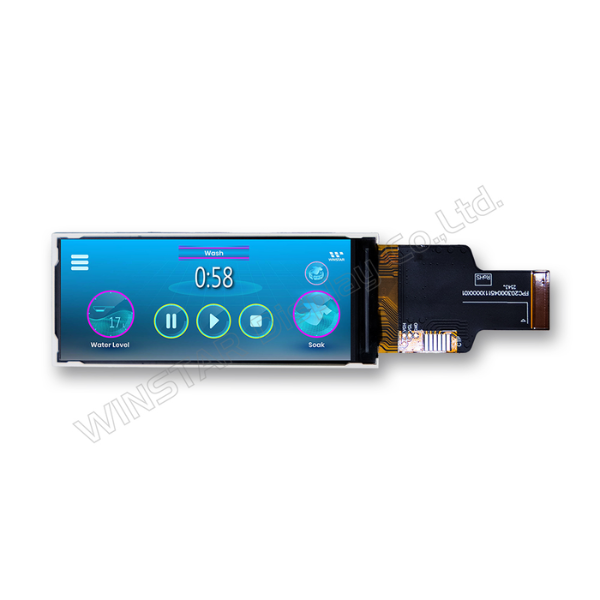

WFN0286DA2#0PW0-FC is a 2.86-inch bar type TFT LCD module with a resolution of 376x960 pixels. The module uses amorphous silicon TFT technology and has an active area measured diagonally at 2.86 inches.

This module supports a 3-wire SPI + RGB 24-bit interface and is driven by the ST7701P IC or equivalent. It is supplied without a touch panel.

The panel adopts IPS technology and provides 85-degree viewing angles in all directions. The typical brightness is 600 cd/m².

WFN0286DA2#0PW0-FC is a normally black, transmissive TFT LCD module with a glossy surface and an aspect ratio of 1:2.5. The operating temperature range is -30℃ to +85℃, and the storage temperature range is also -30℃ to +85℃.

Other options in this series include the high brightness version without touch, WFN0286DA2#0SPW0-FC, and the high brightness version with PCAP touch panel, WFN0286DA2#0SPW15-FC.

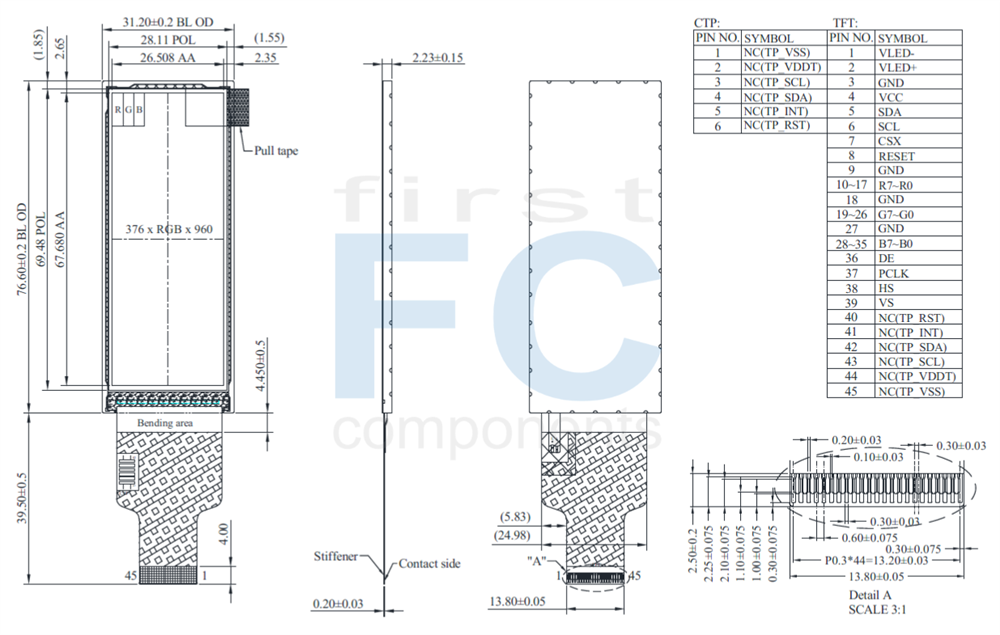

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.86 inch
Dot Matrix 376 x RGB x 960 (TFT) dots
Module dimension 31.2 (W) x 76.6 (H) x 2.23 (D) mm
Active area 26.508 x 67.68 mm
Pixel Pitch 0.0705 x 0.0705 mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 85/85/85/85
Aspect Ratio 1:2.5
TFT Interface 3W SPI+RGB24bit
TFT Driver IC ST7701P or Equivalent
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electronical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Interface Supply Voltage VCC 2.5 2.8 3.3 V
Current for Driver IVCC － 25 40 mA
Input voltage 'H' level VIH 0.7*VCC － VCC V
Input voltage 'L' level VIL GND － 0.3*VCC V
Output voltage 'H' level VOH 0.8* VCC － VCC V
Output voltage 'L' level VOL GND － 0.2* VCC V


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 20 － mA
LED voltage VLED+ 18.2 20.0 22.4 V
LED Life Time － 50,000 － － Hr



Interface

LCM PIN Definition

Match connector: Molex 5025984593 or equivalent.
Pin No.SymbolDescription
1 VLED- LED backlight cathode
2 VLED+ LED backlight anode
3 GND Power ground
4 VCC Power Supply for Digital Circuit
5 SDA SDA: Serial data input/output bidirectional pin for SPI Interface.
6 SCL SCL: Serial clock input for SPI interface.
7 CSX - A chip select signal
Low: the chip is selected and accessible
High: the chip is not selected and not accessible
8 RESET Reset signal(low active)
9 GND Power ground
10~17 R7~R0 Red Data 7~0
18 GND Power ground
19~26 G7~G0 Green Data 7~0
27 GND Power ground
28~35 B7~B0 Blue Data 7~0
36 DE Data Enable (ENABLE)
37 PCLK Clock Signals ; Latch Data at the Falling Edge (DOTCLK)
38 HS Line synchronizing signal for RGB interface operation (HSYNC)
39 VS Frame synchronizing signal for RGB interface operation (VSYNC)
40 NC(TP_RST) No connection (CTP External Reset, Low is active)
41 NC(TP_INT) No connection (CTP External interrupt to the host)
42 NC(TP_SDA) No connection (CTP I2C data input and output)
43 NC(TP_SCL) No connection (CTP I2C clock input)
44 NC(TP_VDDT) No connection (CTP Power supply: +3.3V)
45 NC(TP_VSS) No connection (CTP Ground for analog circuit)


SKU: WFN0286DA2#0PW0-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€15.10
€11.10
€9.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€15.10 excl tax

DESCRIPTION

WFN0286DA2#0PW0-FC is a 2.86-inch bar type TFT LCD module with a resolution of 376x960 pixels. The module uses amorphous silicon TFT technology and has an active area measured diagonally at 2.86 inches.

This module supports a 3-wire SPI + RGB 24-bit interface and is driven by the ST7701P IC or equivalent. It is supplied without a touch panel.

The panel adopts IPS technology and provides 85-degree viewing angles in all directions. The typical brightness is 600 cd/m².

WFN0286DA2#0PW0-FC is a normally black, transmissive TFT LCD module with a glossy surface and an aspect ratio of 1:2.5. The operating temperature range is -30℃ to +85℃, and the storage temperature range is also -30℃ to +85℃.

Other options in this series include the high brightness version without touch, WFN0286DA2#0SPW0-FC, and the high brightness version with PCAP touch panel, WFN0286DA2#0SPW15-FC.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.86 inch
Dot Matrix 376 x RGB x 960 (TFT) dots
Module dimension 31.2 (W) x 76.6 (H) x 2.23 (D) mm
Active area 26.508 x 67.68 mm
Pixel Pitch 0.0705 x 0.0705 mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 85/85/85/85
Aspect Ratio 1:2.5
TFT Interface 3W SPI+RGB24bit
TFT Driver IC ST7701P or Equivalent
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electronical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Interface Supply Voltage VCC 2.5 2.8 3.3 V
Current for Driver IVCC － 25 40 mA
Input voltage 'H' level VIH 0.7*VCC － VCC V
Input voltage 'L' level VIL GND － 0.3*VCC V
Output voltage 'H' level VOH 0.8* VCC － VCC V
Output voltage 'L' level VOL GND － 0.2* VCC V


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 20 － mA
LED voltage VLED+ 18.2 20.0 22.4 V
LED Life Time － 50,000 － － Hr



Interface

LCM PIN Definition

Match connector: Molex 5025984593 or equivalent.
Pin No.SymbolDescription
1 VLED- LED backlight cathode
2 VLED+ LED backlight anode
3 GND Power ground
4 VCC Power Supply for Digital Circuit
5 SDA SDA: Serial data input/output bidirectional pin for SPI Interface.
6 SCL SCL: Serial clock input for SPI interface.
7 CSX - A chip select signal
Low: the chip is selected and accessible
High: the chip is not selected and not accessible
8 RESET Reset signal(low active)
9 GND Power ground
10~17 R7~R0 Red Data 7~0
18 GND Power ground
19~26 G7~G0 Green Data 7~0
27 GND Power ground
28~35 B7~B0 Blue Data 7~0
36 DE Data Enable (ENABLE)
37 PCLK Clock Signals ; Latch Data at the Falling Edge (DOTCLK)
38 HS Line synchronizing signal for RGB interface operation (HSYNC)
39 VS Frame synchronizing signal for RGB interface operation (VSYNC)
40 NC(TP_RST) No connection (CTP External Reset, Low is active)
41 NC(TP_INT) No connection (CTP External interrupt to the host)
42 NC(TP_SDA) No connection (CTP I2C data input and output)
43 NC(TP_SCL) No connection (CTP I2C clock input)
44 NC(TP_VDDT) No connection (CTP Power supply: +3.3V)
45 NC(TP_VSS) No connection (CTP Ground for analog circuit)


Products specifications
Brand Winstar
Size 2.86"
Resolution 376x960
Active Area (mm) 26.50x67.68
Color Full Color
Display Interface RGB+SPI
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 45
Pin Pitch 0.3mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.86"
Resolution 376x960
Active Area (mm) 26.50x67.68
Color Full Color
Display Interface RGB+SPI
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 45
Pin Pitch 0.3mm
Preferred - Not Preferred Preferred
