WFN0160MA2#0P0-FC

TFT 1.6" 400x400, Round LCD Panel, Full Color, Interface MIPI IC ST7797, Wide View Angle (IPS), 350 cd/m2, Standard Temp., No touch

DESCRIPTION

This 1.6-inch Circular IPS TFT LCD Display Module features advanced Thin Film Transistor (TFT) technology, utilizing Amorphous Silicon TFT as the switching element. The module offers a high-resolution display of 400x400 pixels with support for up to 16.7 million colors, ensuring sharp and vibrant visuals.

The display is equipped with In-Plane Switching (IPS) technology, providing a wide viewing angle of 85° in all directions (up, down, left, and right). With a typical brightness of 350 cd/m² and a contrast ratio of 1000:1, it delivers stable and clear visuals in most standard application environments.

The module is controlled by the ST7797 IC and has a 1-Lane MIPI interface, making it easy to integrate with a variety of embedded systems. It operates with a digital supply voltage range of 2.5V to 3.6V (typical 3.3V) and boasts an LED backlight lifetime of up to 50,000 hours, ensuring long-lasting performance.

This circular display module is ideal for applications in smart home devices, industrial control systems, and wearable technologies, as well as any other innovative designs requiring a round display area.


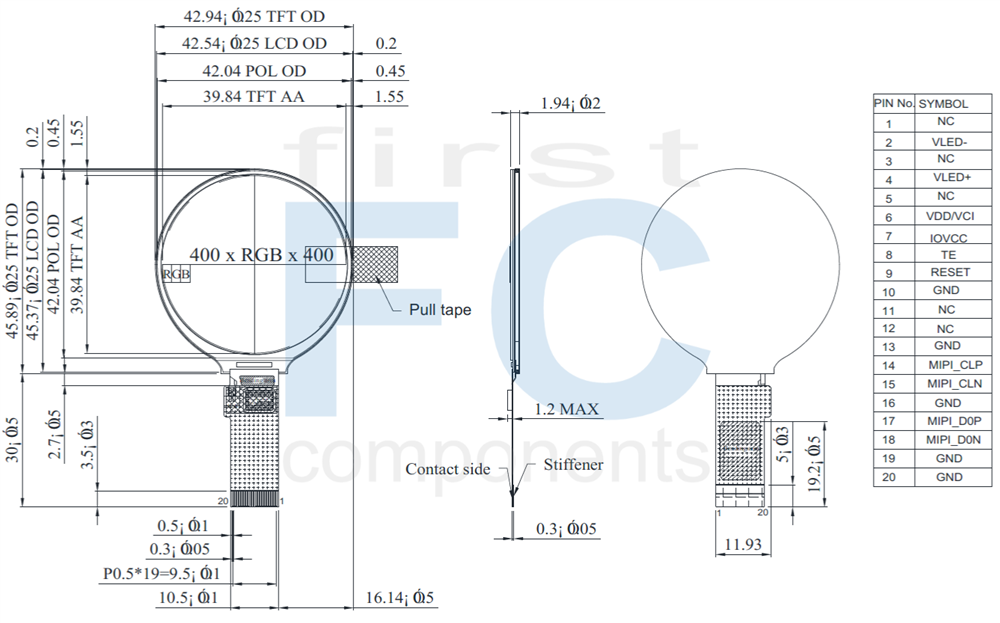

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 1.6 inch
Dot Matrix 400 x RGB x 400 (TFT) dots
Module dimension 42.94 x 45.89 x 1.94 mm
Active area 39.84 x 39.84 mm
Pixel pitch 0.0996 x 0.0996 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 1-Lane MIPI
Backlight Type LED ,Normally White
TFT Controller IC ST7797 or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating Conditions

ItemSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.5 3.3 3.6 V
Interface Operation Voltage IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 10 20 mA
Level input voltage VIH 0.7 IOVCC -- Iovcc V
VIL GND -- 0.3 IOVCC V
Level output voltage VOH 0.8 IOVCC -- Iovcc V
VOL GND -- 0.2 IOVCC V
Differential Input High Threshold Voltage VIT+ -- 0 50 mV
Differential Input Low Threshold Voltage VIT- -50 0 -- mV
Single-ended Receiver Input Operation Voltage Range VIR 0.5 - 1.2 V



LED Driving Conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 60 - mA
LED voltage VLED+ 2.8 3.2 3.4 V
LED Life Time - 50000 - - Hr



Interface

LCM PIN Definition

Pin NoSymbolFunction
1 NC No connection
2 VLED- Cathode pin of backlight.
3 NC No connection
4 VLED+ Anode pin of backlight.
5 NC No connection
6 VDD/VCI Supply Voltage (3.3V).
7 IOVCC I/O power supply voltage.
8 TE -Tearing effect output
Leave the pin to open when not in use.
9 RESET - The external reset input.
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
10 GND Ground.
11 NC No connection
12 NC No connection
13 GND Ground.
14 MIPI_CLP MIPI DSI differential clock pair (DSI-CLK+/-).
15 MIPI_CLN
16 GND Ground.
17 MIPI_D0P MIPI DSI differential data pair (DSI-Dn+/-).
18 MIPI_D0N
19 GND Ground.
20 GND Ground.


SKU: WFN0160MA2#0P0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€15.40
€11.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€15.40 excl tax

DESCRIPTION

This 1.6-inch Circular IPS TFT LCD Display Module features advanced Thin Film Transistor (TFT) technology, utilizing Amorphous Silicon TFT as the switching element. The module offers a high-resolution display of 400x400 pixels with support for up to 16.7 million colors, ensuring sharp and vibrant visuals.

The display is equipped with In-Plane Switching (IPS) technology, providing a wide viewing angle of 85° in all directions (up, down, left, and right). With a typical brightness of 350 cd/m² and a contrast ratio of 1000:1, it delivers stable and clear visuals in most standard application environments.

The module is controlled by the ST7797 IC and has a 1-Lane MIPI interface, making it easy to integrate with a variety of embedded systems. It operates with a digital supply voltage range of 2.5V to 3.6V (typical 3.3V) and boasts an LED backlight lifetime of up to 50,000 hours, ensuring long-lasting performance.

This circular display module is ideal for applications in smart home devices, industrial control systems, and wearable technologies, as well as any other innovative designs requiring a round display area.


DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 1.6 inch
Dot Matrix 400 x RGB x 400 (TFT) dots
Module dimension 42.94 x 45.89 x 1.94 mm
Active area 39.84 x 39.84 mm
Pixel pitch 0.0996 x 0.0996 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 1-Lane MIPI
Backlight Type LED ,Normally White
TFT Controller IC ST7797 or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating Conditions

ItemSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.5 3.3 3.6 V
Interface Operation Voltage IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 10 20 mA
Level input voltage VIH 0.7 IOVCC -- Iovcc V
VIL GND -- 0.3 IOVCC V
Level output voltage VOH 0.8 IOVCC -- Iovcc V
VOL GND -- 0.2 IOVCC V
Differential Input High Threshold Voltage VIT+ -- 0 50 mV
Differential Input Low Threshold Voltage VIT- -50 0 -- mV
Single-ended Receiver Input Operation Voltage Range VIR 0.5 - 1.2 V



LED Driving Conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 60 - mA
LED voltage VLED+ 2.8 3.2 3.4 V
LED Life Time - 50000 - - Hr



Interface

LCM PIN Definition

Pin NoSymbolFunction
1 NC No connection
2 VLED- Cathode pin of backlight.
3 NC No connection
4 VLED+ Anode pin of backlight.
5 NC No connection
6 VDD/VCI Supply Voltage (3.3V).
7 IOVCC I/O power supply voltage.
8 TE -Tearing effect output
Leave the pin to open when not in use.
9 RESET - The external reset input.
Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
10 GND Ground.
11 NC No connection
12 NC No connection
13 GND Ground.
14 MIPI_CLP MIPI DSI differential clock pair (DSI-CLK+/-).
15 MIPI_CLN
16 GND Ground.
17 MIPI_D0P MIPI DSI differential data pair (DSI-Dn+/-).
18 MIPI_D0N
19 GND Ground.
20 GND Ground.


Products specifications
Brand Winstar
Size 1.6"
Resolution 400x400
Active Area (mm) 39.84x39.84
Color Full Color
Display Interface MIPI
Display IC ST7797
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 20
Pin Pitch 0.5mm
