    WF80-8001280GM#0SP3-FC

    TFT 8" 800x1280 LCD Panel, Interface MIPI (4-lanes) IC ILI9881C, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, ILI2130 IC)
    Manufacturer: Winstar
    SKU: WF80-8001280GM#0SP3-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €83.60
    €75.20
    €70.70

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €83.60 excl tax
    i h

    DESCRIPTION

    The WF80-8001280GM#0SP3-FC is an 8-inch touchscreen display utilizing color TFT technology. With a resolution of 800×1280 pixels, a high brightness of 900 nits (typical value), and a contrast ratio of 1500:1 (typical value), this TFT module employs the ILI9881C driver IC and supports the 4-Lanes MIPI DSI interface. It offers advantages such as low power consumption, a high transmission rate, support for multiple data-encoding formats, and low noise and interference. The module is equipped with a projected capacitive touch panel (PCAP) incorporating the ILI2130 driver IC, supporting I2C interfaces, and providing a 5-point touch function.

    Utilizing IPS panel technology, the WF80-8001280GM#0SP3-FC module ensures relatively wide viewing angles of left: 85/right: 85/up: 85/down: 85 degrees (typical value). It features a glare surface with an aspect ratio of 10:16.

    The analog circuit of the power supply operates within the range of 3.0V~3.6V, with a typical value of 3.3V. Operating temperatures range from -20℃ to +70℃, and storage temperatures range from -30℃ to +80℃. The WF80-8001280GM#0SP3-FC 8-inch touchscreen display is versatile, finding wide applications, especially in vertical screen orientations suitable for vending machines, ship control panels, home surveillance systems, and smart door locks.




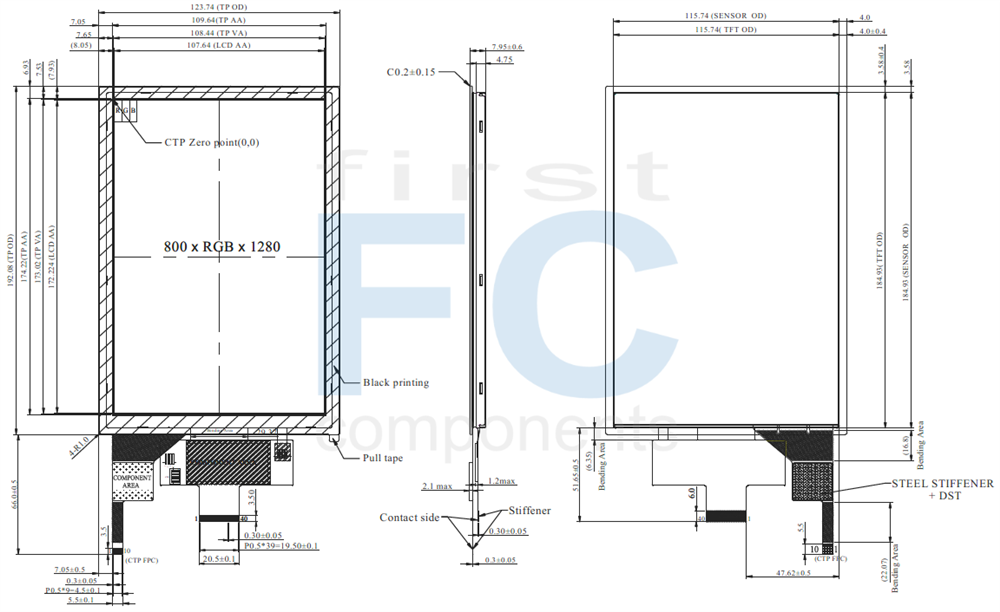

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    LCM PIN Definition

    PinSymbolFunction
    1-9 NC No connection
    10-11 VCI Power supply for analog circuits. Connect to an external power supply of 3.0V to 3.6V
    12-13 NC No connection
    14 RESET The external reset input (RESX)
    Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
    Fix to IOVCC level when not in use.
    15 TE Tearing effect output pin.
    Leave the pin open when not in use.
    16 NC No connection (LED PWM)
    17-18 GND Power ground
    19-20 IOVCC Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
    21 GND Power ground
    22 D3P MIPI DSI differential data pair. (Data lane 3)
    23 D3N
    24 GND Power ground
    25 D2P MIPI DSI differential data pair. (Data lane 2)
    26 D2N
    27 GND Power ground
    28 CLKP MIPI DSI differential clock pair
    29 CLKN
    30 GND Power ground
    31 D1P MIPI DSI differential data pair. (Data lane 1)
    32 D1N
    33 GND Power ground
    34 D0P MIPI DSI differential data pair. (Data lane 0)
    35 D0N
    36 GND Power ground
    37 VLED1+ Power for LED1 backlight anode
    38 VLED2+ Power for LED2 backlight anode
    39 VLED1- Power for LED1 backlight cathode
    40 VLED2- Power for LED2 backlight cathode


    PCAP PIN Definition

    PinSymbolFunction
    1 VSS Ground for analog circuit
    2 VDDT Power Supply : +3.3V
    3 SCL I2C clock input
    4 NC No connection
    5 SDA I2C data input and output
    6 NC No connection
    7 /RST External Reset, Low is active
    8 NC No connection
    9 /INT External interrupt to the host
    10 VSS Ground for analog circuit




    General Specifications

    ItemDimensionUnit
    Size 8.0 inch
    Dot Matrix 800 × 3(RGB) ×1280 dots
    Module dimension 123.74 × 192.08 × 7.95 mm
    Active area 107.64 × 172.224 mm
    Pixel pitch 0.13455 × 0.13455 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing angle 85/85/85/85
    TFT Drive IC ILI9881C or Equivalent
    TFT Interface 4-Lanes MIPI
    Aspect Ratio 10:16
    Backlight Type LED, Normally White
    PCAP FW Version 0x07.0x00.0x00.0x00.0x01.0x00.0x83.0x65
    PCAP interface I2C
    PCAP IC ILI2130 or equivalent
    PCAP Resolution 16384 * 16384
    Touch Panel Projected Capacitive Touch Panel
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Typical Operation Conditions

    ItemSymbolValuesUnit
    Min.Typ.Max.
    Power supply for analog circuit VCI 3.0 3.3 3.6 V
    Power supply for logic circuit IOVCC 1.65 1.8 3.6 V
    Current for Driver IVCI - 45 70 mA
    I IOVCC - 20 30 mA
    Supply PCAP +3.3 3.15 3.3 3.45 V
    +3.3V - 70 100 mA
    Products specifications
    Size 8"
    Resolution 800x1280
    Active Area (mm) 107.64x172.22
    Color Full Color
    Display Interface MIPI
    Display IC ILI9881C
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
