WF70-800480D3P#001-FC

Name: WF70-800480D3P#001-FC
SKU: WF70-800480D3P#001-FC
Price: 61.50 EUR
Availability: OutOfStock

Be the first to review this product

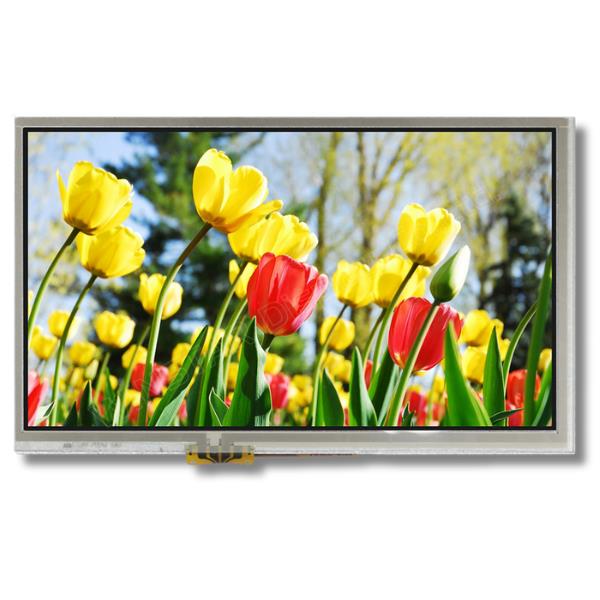

TFT 7" 800x480, LCD + IC Controller, Interface MCU (Parallel), IC SSD1963 (8/16bit), 250cd/m², Resistive Touch Panel

Manufacturer: Winstar

SKU: WF70-800480D3P#001-FC

Accessory kit

FFC Cable
Display Connector

PRICE BREAKS

Quantity

10+

Price

€61.50

€55.40

€52.10

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: The product can not be added to the cart. Please check with FC for future availability

€61.50 excl tax

Qty:

i h

Overview
Specifications
Contact Us

DESCRIPTION

TFT 7.0”is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

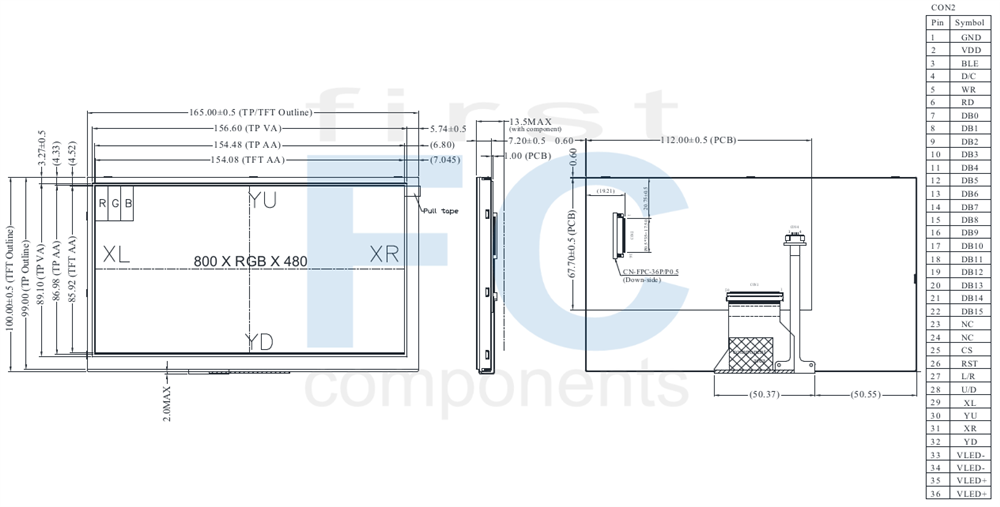

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 x RGB x 480 (TFT)	dots
Module dimension	165.0 x 100.0 x 13.5	mm
Active area	154.08 x 85.92	mm
Pixel Pitch	0.1926 x 0.179	mm
LCD type	TFT, Normally White, Transmissive
Controller IC	SSD1963
TFT Interface	Digital 8080 family MPU 8bit/16bit
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Color arrangement	RGB-Stripe
With/Without TP	With RTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	3.0	3.1	3.3	V
Supply Current For LCM	IDD	-	140	210	mA

Interface

Pin	Symbol	Function
1	GND	System ground pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BLE	Backlight control signal, H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7	DB0	Data bus
8	DB1	Data bus
9	DB2	Data bus
10	DB3	Data bus
11	DB4	Data bus
12	DB5	Data bus
13	DB6	Data bus
14	DB7	Data bus
15	DB8	Data bus (When select 8bits Mode, this pin is NC)
16	DB9	Data bus (When select 8bits Mode, this pin is NC)
17	DB10	Data bus (When select 8bits Mode, this pin is NC)
18	DB11	Data bus (When select 8bits Mode, this pin is NC)
19	DB12	Data bus (When select 8bits Mode, this pin is NC)
20	DB13	Data bus (When select 8bits Mode, this pin is NC)
21	DB14	Data bus (When select 8bits Mode, this pin is NC)
22	DB15	Data bus (When select 8bits Mode, this pin is NC)
23	NC	No connect
24	NC	No connect
25	CS	Chip select
26	RST	Hardware reset (RESET)
27	L/R	Left / right selection; Default L/R=H
28	U/D	Up/down selection; ; Default U/D=L
29	XL	Left electrode
30	YU	Top electrode
31	XR	Right electrode
32	YD	Bottom electrode
33	VLED-	Power for LED Driver IC(GND)
34	VLED-	Power for LED Driver IC(GND)
35	VLED+	Power for LED Driver IC(+5V)
36	VLED+	Power for LED Driver IC(+5V)

Products specifications

Size	7"
Resolution	800x480
Active Area (mm)	154.08x85.92
Color	Full Color
Display Interface	MCU (Parallel)
Display IC	SSD1963
View Angle	TN
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Data Connection	ZIF Connector
Pin Nr.	36
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
