WF70-800480D3D#0S1-FC

Name: WF70-800480D3D#0S1-FC
SKU: WF70-800480D3D#0S1-FC
Price: 44.50 EUR
Availability: OutOfStock

Be the first to review this product

TFT 7" 800x480 LCD Panel, Interface RGB (50pin), High Brightness 600cd/m², Resistive touch panel

Manufacturer: Winstar

SKU: WF70-800480D3D#0S1-FC

Accessory kit

Display Connector
Touch-Panel Connector

PRICE BREAKS

Quantity

10+

Price

€44.50

€40.00

€37.60

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: The product can not be added to the cart. Please check with FC for future availability

€44.50 excl tax

Qty:

i h

Overview
Specifications
Contact Us

DESCRIPTION

TFT 7.0”is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

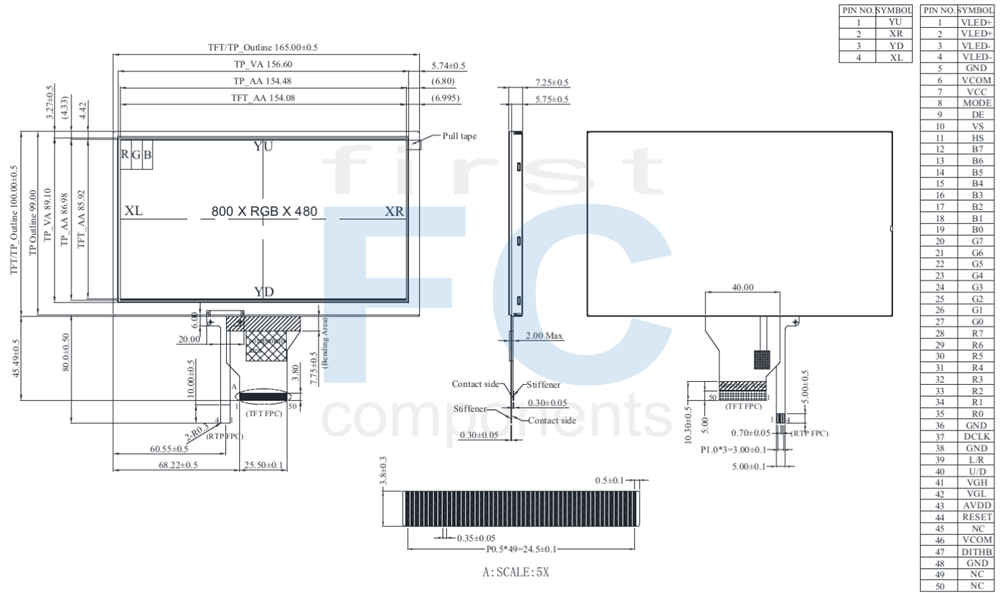

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	165 × 100.0 × 7.25	mm
Active area	154.08 × 85.92	mm
Pixel Pitch	0.1926 × 0.179	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Color arrangement	RGB-Stripe
TFT Driver IC	ILI6137A+ILI5960-9G or equivalent
TFT Interface	24-bit RGB
With/Without TP	With RTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	3.0	3.3	3.6	V
Power voltage	AVDD	10.2	10.4	10.6	V
Power Supply For Current	VCC =3.3V	-	3.1	-	mA
Power voltage	VGH	14.5	15.0	15.5	V
Power voltage	VGL	-10.5	-10	-9.5	V
Input signal voltage	VCOM	3.54	4.04	4.54	V
Power AVDD For Current	IADD	-	13.7	-	mA
Power VGH For Current	IGH	-	0.57	-	mA
Power VGL For Current	IGL	-	0.63	-	mA
Power VCOM For Current	ICOM	-	0.03	-	mA

Interface

LCM PIN Definition

Pin	Symbol	Function
1	VLED+	Power supply for backlight
2	VLED+	Power supply for backlight
3	VLED-	Backlight ground
4	VLED-	Backlight ground
5	GND	Power ground
6	VCOM	Common voltage
7	VCC	Power for Digital Circuit
8	MODE	DE/SYNC mode select
9	DE	Data Input Enable (DEN)
10	VS	Vertical Sync Input (VSD)
11	HS	Horizontal Sync Input (HSD)
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data(LSB)
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data(LSB)
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Sample clock (CLK)
38	GND	Power Ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin.
45	NC	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC	No connection
50	NC	No connection

Products specifications

Size	7"
Resolution	800x480
Active Area (mm)	154.08x85.92
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	TN
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Data Connection	FPC for ZIF Connector
Pin Nr.	50
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
