WF70-800480C4P#001-FC

Picture of WF70-800480C4P#001-FC Picture of WF70-800480C4P#001-FC
TFT 7" 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 350cd/m², Resistive touch panel

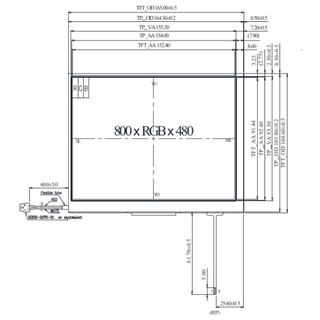

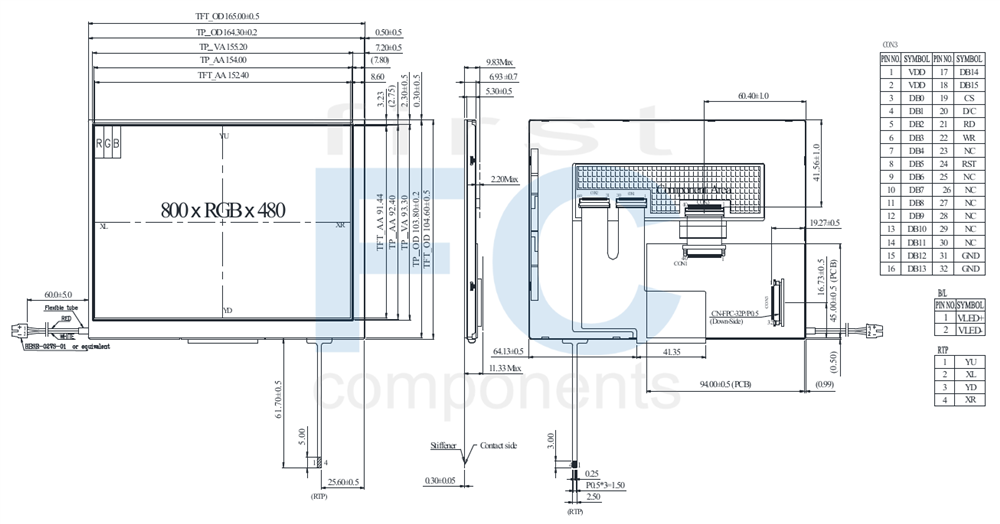

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 VDD Power Supply : +3.3V
2 VDD Power Supply : +3.3V
3 DB0 Data Bus
4 DB1 Data Bus
5 DB1 Data Bus
6 DB3 Data Bus
7 DB4 Data Bus
8 DB5 Data Bus
9 DB6 Data Bus
10 DB7 Data Bus
11 DB8 Data Bus
12 DB9 Data Bus
13 DB10 Data Bus
14 DB11 Data Bus
15 DB12 Data Bus
16 DB13 Data Bus
17 DB14 Data Bus
18 DB15 Data Bus
19 CS Chip select
20 D/C Data/Command select
21 RD Read strobe signal
22 WR Write strobe signal
23 NC No connect
24 RST Hardware reset
25 NC No connect
26 NC No connect
27 NC No connect
28 NC No connect
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800×RGB×480  (TFT) dots
Module dimension 165.0 (W)×104.6 (H)×9.83 (MAX)(D) mm
Active area 152.4×91.44 mm
Pixel Pitch 0.1905×0.1905 mm
LCD type TFT, Normally White, Transmissive
View Direction  12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU (16bit Parallel)
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD - 3.0 3.3 3.6 V
Supply Current For LCM IDD Black Pattern - 200 300 mA



SKU: WF70-800480C4P#001-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€87.60
€78.80
€65.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€87.60 excl tax

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 VDD Power Supply : +3.3V
2 VDD Power Supply : +3.3V
3 DB0 Data Bus
4 DB1 Data Bus
5 DB1 Data Bus
6 DB3 Data Bus
7 DB4 Data Bus
8 DB5 Data Bus
9 DB6 Data Bus
10 DB7 Data Bus
11 DB8 Data Bus
12 DB9 Data Bus
13 DB10 Data Bus
14 DB11 Data Bus
15 DB12 Data Bus
16 DB13 Data Bus
17 DB14 Data Bus
18 DB15 Data Bus
19 CS Chip select
20 D/C Data/Command select
21 RD Read strobe signal
22 WR Write strobe signal
23 NC No connect
24 RST Hardware reset
25 NC No connect
26 NC No connect
27 NC No connect
28 NC No connect
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800×RGB×480  (TFT) dots
Module dimension 165.0 (W)×104.6 (H)×9.83 (MAX)(D) mm
Active area 152.4×91.44 mm
Pixel Pitch 0.1905×0.1905 mm
LCD type TFT, Normally White, Transmissive
View Direction  12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU (16bit Parallel)
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD - 3.0 3.3 3.6 V
Supply Current For LCM IDD Black Pattern - 200 300 mA



Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 32
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 32
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
