WF70-800480B2D#001-FC

Pin

Symbol

Function

Remark

1

VLED-

Backlight ground

2

VLED+

Power supply for backlight

3

GND

Power ground

4

VCC

Power for Digital Circuit

5

R0

Red data(LSB)

Note 2

6

R1

Red data

Note 2

7

R2

Red data

8

R3

Red data

9

R4

Red data

10

R5

Red data

11

R6

Red data

12

R7

Red data(MSB)

13

G0

Green data(LSB)

Note 2

14

G1

Green data

Note 2

15

G2

Green data

16

G3

Green data

17

G4

Green data

18

G5

Green data

19

G6

Green data

20

G7

Green data(MSB)

21

B0

Blue data(LSB)

Note 2

22

B1

Blue data

Note 2

23

B2

Blue data

24

B3

Blue data

25

B4

Blue data

26

B5

Blue data

27

B6

Blue data

28

B7

Blue data(MSB)

29

GND

Power Ground

30

CLK

Sample clock

Note 3

31

R/L

Right / Left selection

Note 4

32

Hsync

Horizontal Sync Input

33

Vsync

Vertical Sync Input

34

NC

No connection

35

U/D

Up/down selection

36

RESET

Global reset pin.

Note 6

37-40

NC

No connection

Item

Dimension

Unit

Size

7.0

inch

Dot Matrix

800 x RGB x 480    (TFT)

dots

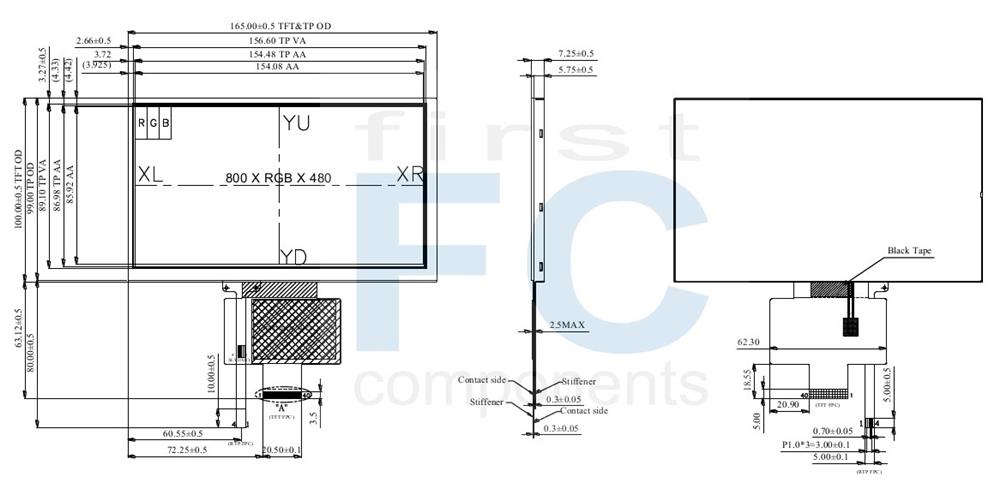

Module dimension

165 x 100.0x 7.25

mm

Active area

154.08 x 85.92

mm

Pixel Pitch

0.1926 X 0.179

mm

LCD type

TFT, Normally White, Transmissive

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

Aspect Ratio

16:9

Backlight Type

LED ,Normally White

TFT Interface

24 bit RGB

Color arrangement

RGB-STRIPE

Driver IC

HX8264-E&HX8664-B or Equivalent

With /Without TP

With RTP

Surface

Anti-Glare

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C
