WF57-320240SD#0S1-FC

TFT 5.7" 320x240, Monochrome, LCD + IC Controller, Interface MCU (Parallel) IC ST7511, High Brightness 700cd/m², Frame, Resistive touch panel

DESCRIPTION

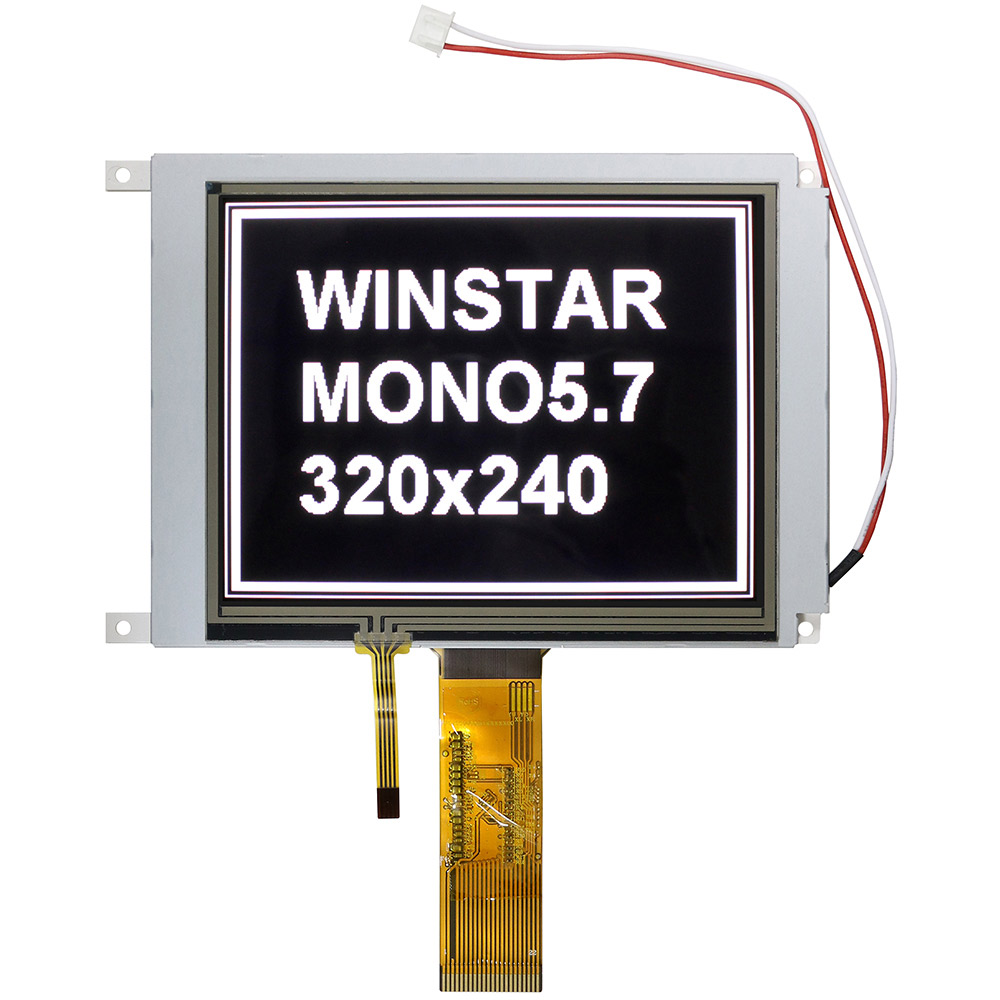

It is a 5.7 inch Monochrome TFT Display 320x240. The external dimensions of the display is 160 x 109 x 7 mm (COG construction), and the active area is 115.2 x 86.4 mm. What is important, it is a TFT monochrome model with TN positive LCD, but applied in the active matrix TFT, which allows for high contrast (800:1), high brightness 1000 cd/m2 and short response times. In short, the mono TFT display performance is much better on contrast, brightness and response time than traditional monochrome LCD module.

This display does not need an extended controller board to drive MCU control. The display can operate in mode 2, 4 or 16 shades of gray scale, depending on the settings. Because the display driver supports several communication modes : 3 - or 4-line serial interface and an 8 -bit parallel interface compatible with standard systems with 8080 or 6800 family, the desired mode is selected by user to choose appropriate interface to control the device system. It is also worth mentioning the possibility of introducing the device in sleep mode, which does not clear the memory contents of the display.

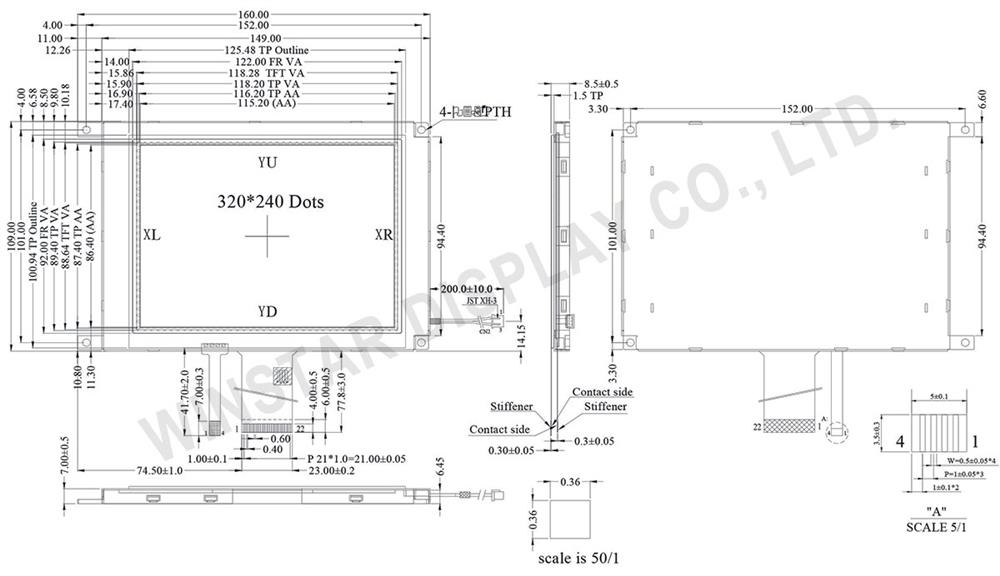

DRAWING




SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 A0 Data/Command select
5 /WR(R/W) Write strobe signal
6 /RD(E) Read strobe signal
7~14 DB0~DB7 Data bus
15 /CS Chip select
16 /RESET(RSTB) Hardware reset
17~18 IF0~IF1 Mode select
19~22 NC No connect



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × 240 dots
Module dimension 160.0 × 109.0 × 8.5 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.36 × 0.36 mm
LCD type TFT, Positive, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Gray Scale 16 Gray scale (4BPP)/ 4 Gray scale (2BPP)/ 2 Gray scale (1BPP)
Driver IC ST7511U
Backlight Type LED, Normally White
Touch Panel Resistive touch panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.3 3.6 V
Supply Current For LCM IDD 20 30 mA
Power Consumption 66 108 mW


SKU: WF57-320240SD#0S1-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€77.90
€70.10
€58.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€77.90 excl tax

DESCRIPTION

It is a 5.7 inch Monochrome TFT Display 320x240. The external dimensions of the display is 160 x 109 x 7 mm (COG construction), and the active area is 115.2 x 86.4 mm. What is important, it is a TFT monochrome model with TN positive LCD, but applied in the active matrix TFT, which allows for high contrast (800:1), high brightness 1000 cd/m2 and short response times. In short, the mono TFT display performance is much better on contrast, brightness and response time than traditional monochrome LCD module.

This display does not need an extended controller board to drive MCU control. The display can operate in mode 2, 4 or 16 shades of gray scale, depending on the settings. Because the display driver supports several communication modes : 3 - or 4-line serial interface and an 8 -bit parallel interface compatible with standard systems with 8080 or 6800 family, the desired mode is selected by user to choose appropriate interface to control the device system. It is also worth mentioning the possibility of introducing the device in sleep mode, which does not clear the memory contents of the display.



DRAWING




SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 A0 Data/Command select
5 /WR(R/W) Write strobe signal
6 /RD(E) Read strobe signal
7~14 DB0~DB7 Data bus
15 /CS Chip select
16 /RESET(RSTB) Hardware reset
17~18 IF0~IF1 Mode select
19~22 NC No connect



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × 240 dots
Module dimension 160.0 × 109.0 × 8.5 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.36 × 0.36 mm
LCD type TFT, Positive, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Gray Scale 16 Gray scale (4BPP)/ 4 Gray scale (2BPP)/ 2 Gray scale (1BPP)
Driver IC ST7511U
Backlight Type LED, Normally White
Touch Panel Resistive touch panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.3 3.6 V
Supply Current For LCM IDD 20 30 mA
Power Consumption 66 108 mW


Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Monochrome
Display Interface MCU (Parallel)
Display IC ST7511
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 22
Pin Pitch 1mm
Preferred - Not Preferred Preferred
