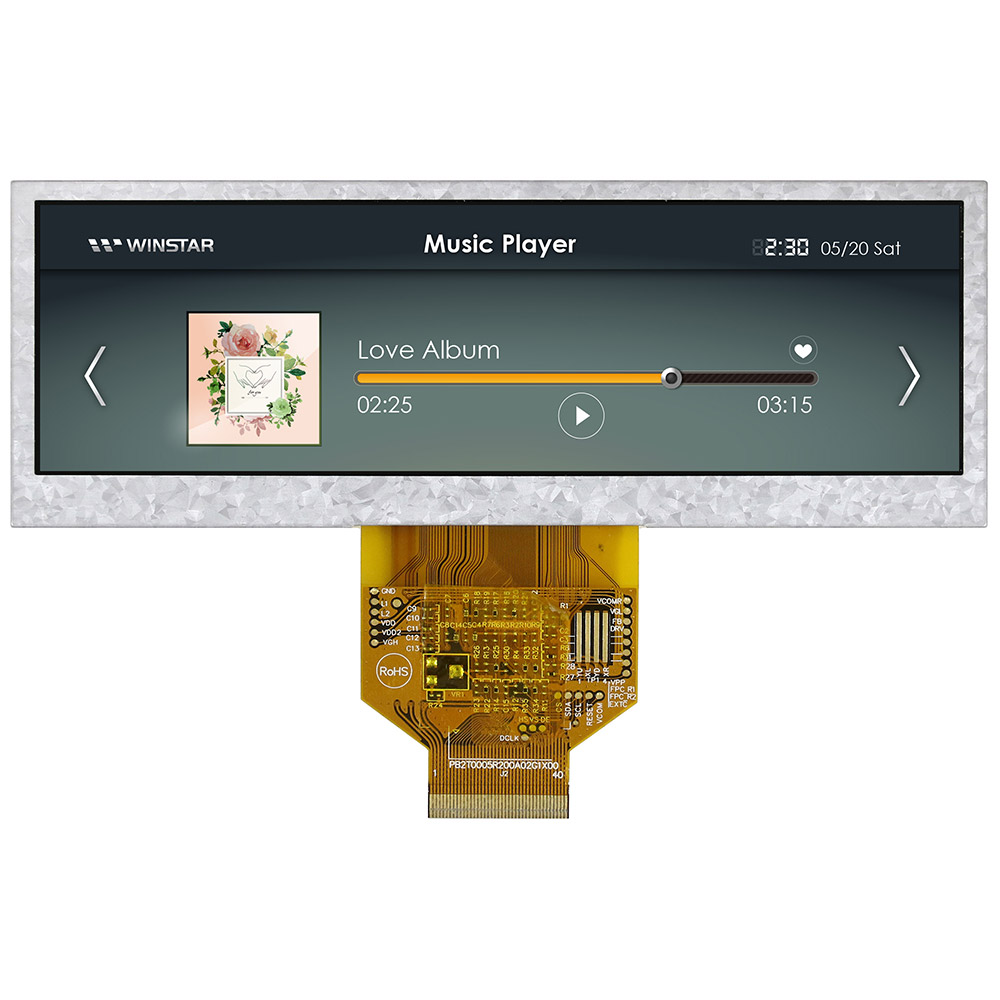

WF52-480128AD#0S0-FC

TFT 5.2" 480x128, Bar Type, Interface RGB, High Brightness 1100cd/m², View direction 6H, No touch

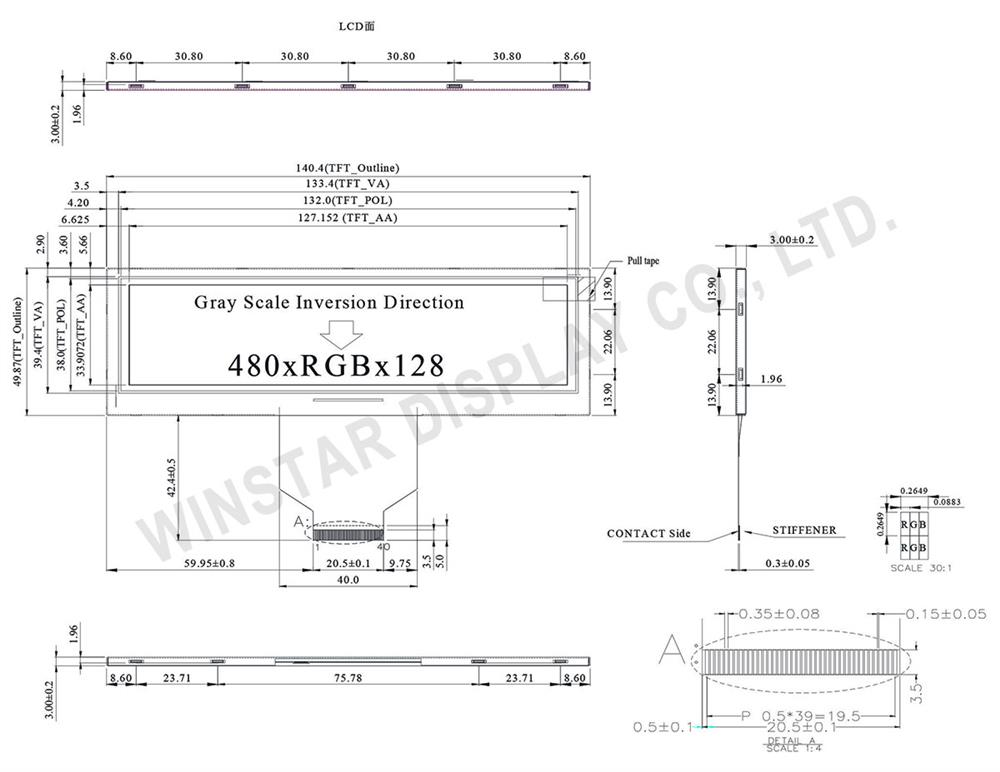

DRAWING



SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock (DCLK)
31 LR Right /Left selection; Default R/L is Pull High
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 NC No connection
35 UD Up/down selection; Default U/D is Pull High
36 RESET Reset signal
37~40 NC No connection



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 140.4 × 49.87 × 3.0 mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED,Normally White
Driver IC ST7252 Or Equal
Interface RGB 24bit
With /Without TP Without touch panel (screen)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 20 mA



SKU: WF52-480128AD#0S0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€44.00
€36.70
€31.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€44.00 excl tax

DRAWING



SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock (DCLK)
31 LR Right /Left selection; Default R/L is Pull High
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 NC No connection
35 UD Up/down selection; Default U/D is Pull High
36 RESET Reset signal
37~40 NC No connection



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 140.4 × 49.87 × 3.0 mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED,Normally White
Driver IC ST7252 Or Equal
Interface RGB 24bit
With /Without TP Without touch panel (screen)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 20 mA



Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
