WF50-800480FH#VSP3-FC
WF50-800480FH#VSP3-FC

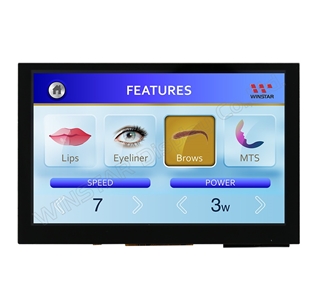

TFT 5" 800x480, HDMI / Raspberry Interface, IC TFP401, Wide view angle (IPS), High Brightness 750cd/m², Incl. 2 connectors, Capacitive touch panel Mouse mode with USB interface (GG, ILI2130 IC), Suitable for Raspberry Pi 1~3 & Pi3B+ versions

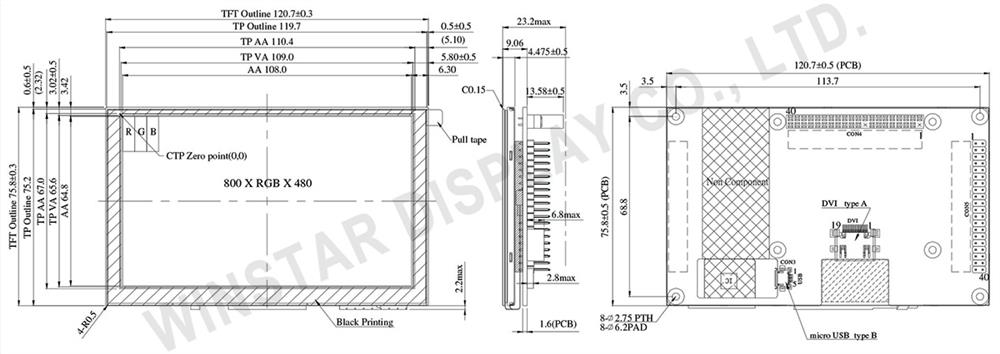

DRAWING
INTERFACE
1.LCM PIN Definition(CON4)
Pin
Symbol
Function
1
NC
No connection
2
5V
Raspberry Pi:Power 5V
3
GPIO02
Raspberry Pi:GPIO02
4
5V
Raspberry Pi:Power 5V
5
GPIO03
Raspberry Pi:GPIO03
6
GND
Raspberry Pi:GND
7
GPIO04
Raspberry Pi:GPIO04
8
GPIO14
Raspberry Pi:GPIO14
9
GND
Raspberry Pi:GND
10
GPIO15
Raspberry Pi:GPIO15
11
GPIO17
Raspberry Pi:GPIO17
12
GPIO18
Raspberry Pi:GPIO18 (Backlight Enable)
13
GPIO27
Raspberry Pi:GPIO27
14
GND
Raspberry Pi:GND
15
GPIO22
Raspberry Pi:GPIO22
16
GPIO23
Raspberry Pi:GPIO23
17
NC
No connection
18
GPIO24
Raspberry Pi:GPIO24
19
GPIO10
Raspberry Pi:GPIO10
20
GND
Raspberry Pi:GND
21
GPIO09
Raspberry Pi:GPIO09
22
GPIO25
Raspberry Pi:GPIO25
23
GPIO11
Raspberry Pi:GPIO11
24
GPIO08
Raspberry Pi:GPIO08
25
GND
Raspberry Pi:GND
26
GPIO07
Raspberry Pi:GPIO07
27
ID_SD
Raspberry Pi:ID_SD
28
ID_SC
Raspberry Pi:ID_SC
29
GPIO05
Raspberry Pi:GPIO05
30
GND
Raspberry Pi:GND
31
GPIO06
Raspberry Pi:GPIO06
32
GPIO12
Raspberry Pi:GPIO12
33
GPIO13
Raspberry Pi:GPIO13
34
GND
Raspberry Pi:GND
35
GPIO19
Raspberry Pi:GPIO19
36
GPIO16
Raspberry Pi:GPIO16
37
GPIO26
Raspberry Pi:GPIO26
38
GPIO20
Raspberry Pi:GPIO20
39
GND
Raspberry Pi:GND
40
GPIO21
Raspberry Pi:GPIO21
2.(CON5)
Pin
Symbol
Function
1
3.3V
TFT Module Power limit can only output 3.3V,100mA
2
5V
Raspberry Pi:Power 5V
3
GPIO02
Raspberry Pi:GPIO02
4
5V
Raspberry Pi:Power 5V
5
GPIO03
Raspberry Pi:GPIO03
6
GND
Raspberry Pi:GND
7
GPIO04
Raspberry Pi:GPIO04
8
GPIO14
Raspberry Pi:GPIO14
9
GND
Raspberry Pi:GND
10
GPIO15
Raspberry Pi:GPIO15
11
GPIO17
Raspberry Pi:GPIO17
12
GPIO18
Raspberry Pi:GPIO18 (Backlight Enable)
13
GPIO27
Raspberry Pi:GPIO27
14
GND
Raspberry Pi:GND
15
GPIO22
Raspberry Pi:GPIO22
16
GPIO23
Raspberry Pi:GPIO23
17
3.3V
TFT Module Power limit can only output 3.3V,100mA
18
GPIO24
Raspberry Pi:GPIO24
19
GPIO10
Raspberry Pi:GPIO10
20
GND
Raspberry Pi:GND
21
GPIO09
Raspberry Pi:GPIO09
22
GPIO25
Raspberry Pi:GPIO25
23
GPIO11
Raspberry Pi:GPIO11
24
GPIO08
Raspberry Pi:GPIO08
25
GND
Raspberry Pi:GND
26
GPIO07
Raspberry Pi:GPIO07
27
ID_SD
Raspberry Pi:ID_SD
28
ID_SC
Raspberry Pi:ID_SC
29
GPIO05
Raspberry Pi:GPIO05
30
GND
Raspberry Pi:GND
31
GPIO06
Raspberry Pi:GPIO06
32
GPIO12
Raspberry Pi:GPIO12
33
GPIO13
Raspberry Pi:GPIO13
34
GND
Raspberry Pi:GND
35
GPIO19
Raspberry Pi:GPIO19
36
GPIO16
Raspberry Pi:GPIO16
37
GPIO26
Raspberry Pi:GPIO26
38
GPIO20
Raspberry Pi:GPIO20
39
GND
Raspberry Pi:GND
40
GPIO21
Raspberry Pi:GPIO21
3.PCAP USB PIN Definition(CON3)
Pin
Symbol
Function
1
5V
Power 5V
2
D-
Data line -
3
D+
Data line +
4
NC
No connection
5
GND
Power Ground
4.HDMI
Pin No.
Symbol
I/O
Function
1
Rx2+
I
+LVDS Differential Data Input
2
GND
P
Ground
3
Rx2-
I
-LVDS Differential Data Input
4
Rx1+
I
+LVDS Differential Data Input
5
GND
P
Ground
6
Rx1-
I
-LVDS Differential Data Input
7
Rx0+
I
+LVDS Differential Data Input
8
GND
P
Ground
9
Rx0-
I
-LVDS Differential Data Input
10
RxC+
I
+LVDS Differential Clock Input
11
GND
P
Ground
12
RxC-
I
-LVDS Differential Clock Input
13-14
NC
-
No connection
15
SCL
I/O
DDC(Data Display Channel) Clock
16
SDA
I/O
DDC(Data Display Channel) Data
17
GND
P
Ground
18
5V
P
Power Supply
19
Detect
I/O
Hot plug detect
I: input, O: output, P: Power
SPECIFICATIONS
General Specifications
Item
Dimension
Unit
Size
5
inch
Dot Matrix
800 × 3(RGB) × 480
dots
Module dimension
120.7 × 75.8 × 23.2 (Max)
mm
Active area
108.0 × 64.8
mm
Dot pitch
0.135 × 0.135
mm
LCD type
TFT, Normally Black, Transmissive
View Direction
80/80/80/80
Aspect Ratio
16:9
Backlight Type
LED, Normally White
Controller IC
TFP401
Interface
Support HDMI Connector (Only DVI Signal)
PCAP IC
ILI2130 from April 2021 (FT5426DQ8 until April 2021)
PCAP FW Version
2
Touchscreen
Projected capacitive touch panel (USB)
Surface
Glare
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
SKU:
WF50-800480FH#VSP3-FC
Brand:
Winstar
Available:
Yes
Be the first to review this product
Accessory Kit
Touch-Panel Connector
-- Details Below in 'Related Products' --
CABLE_USB-MICROUSB [+€16.40]
CABLE_USB90-MICROUSB_79 [+€3.10]
Added Board
-- Details Below in 'Related Products' --
WWHDMI-00# [+€4.10]
Added Accessory 1
-- Details Below in 'Related Products' --
CABLE_HDMI [+€18.10]
Price Breaks
Quantity
1+
5+
10+
Price
€78.50
€70.70
€58.80
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€78.50 excl tax
Overview
Specifications
Download
Contact Us
DRAWING
INTERFACE
1.LCM PIN Definition(CON4)
Pin
Symbol
Function
1
NC
No connection
2
5V
Raspberry Pi:Power 5V
3
GPIO02
Raspberry Pi:GPIO02
4
5V
Raspberry Pi:Power 5V
5
GPIO03
Raspberry Pi:GPIO03
6
GND
Raspberry Pi:GND
7
GPIO04
Raspberry Pi:GPIO04
8
GPIO14
Raspberry Pi:GPIO14
9
GND
Raspberry Pi:GND
10
GPIO15
Raspberry Pi:GPIO15
11
GPIO17
Raspberry Pi:GPIO17
12
GPIO18
Raspberry Pi:GPIO18 (Backlight Enable)
13
GPIO27
Raspberry Pi:GPIO27
14
GND
Raspberry Pi:GND
15
GPIO22
Raspberry Pi:GPIO22
16
GPIO23
Raspberry Pi:GPIO23
17
NC
No connection
18
GPIO24
Raspberry Pi:GPIO24
19
GPIO10
Raspberry Pi:GPIO10
20
GND
Raspberry Pi:GND
21
GPIO09
Raspberry Pi:GPIO09
22
GPIO25
Raspberry Pi:GPIO25
23
GPIO11
Raspberry Pi:GPIO11
24
GPIO08
Raspberry Pi:GPIO08
25
GND
Raspberry Pi:GND
26
GPIO07
Raspberry Pi:GPIO07
27
ID_SD
Raspberry Pi:ID_SD
28
ID_SC
Raspberry Pi:ID_SC
29
GPIO05
Raspberry Pi:GPIO05
30
GND
Raspberry Pi:GND
31
GPIO06
Raspberry Pi:GPIO06
32
GPIO12
Raspberry Pi:GPIO12
33
GPIO13
Raspberry Pi:GPIO13
34
GND
Raspberry Pi:GND
35
GPIO19
Raspberry Pi:GPIO19
36
GPIO16
Raspberry Pi:GPIO16
37
GPIO26
Raspberry Pi:GPIO26
38
GPIO20
Raspberry Pi:GPIO20
39
GND
Raspberry Pi:GND
40
GPIO21
Raspberry Pi:GPIO21
2.(CON5)
Pin
Symbol
Function
1
3.3V
TFT Module Power limit can only output 3.3V,100mA
2
5V
Raspberry Pi:Power 5V
3
GPIO02
Raspberry Pi:GPIO02
4
5V
Raspberry Pi:Power 5V
5
GPIO03
Raspberry Pi:GPIO03
6
GND
Raspberry Pi:GND
7
GPIO04
Raspberry Pi:GPIO04
8
GPIO14
Raspberry Pi:GPIO14
9
GND
Raspberry Pi:GND
10
GPIO15
Raspberry Pi:GPIO15
11
GPIO17
Raspberry Pi:GPIO17
12
GPIO18
Raspberry Pi:GPIO18 (Backlight Enable)
13
GPIO27
Raspberry Pi:GPIO27
14
GND
Raspberry Pi:GND
15
GPIO22
Raspberry Pi:GPIO22
16
GPIO23
Raspberry Pi:GPIO23
17
3.3V
TFT Module Power limit can only output 3.3V,100mA
18
GPIO24
Raspberry Pi:GPIO24
19
GPIO10
Raspberry Pi:GPIO10
20
GND
Raspberry Pi:GND
21
GPIO09
Raspberry Pi:GPIO09
22
GPIO25
Raspberry Pi:GPIO25
23
GPIO11
Raspberry Pi:GPIO11
24
GPIO08
Raspberry Pi:GPIO08
25
GND
Raspberry Pi:GND
26
GPIO07
Raspberry Pi:GPIO07
27
ID_SD
Raspberry Pi:ID_SD
28
ID_SC
Raspberry Pi:ID_SC
29
GPIO05
Raspberry Pi:GPIO05
30
GND
Raspberry Pi:GND
31
GPIO06
Raspberry Pi:GPIO06
32
GPIO12
Raspberry Pi:GPIO12
33
GPIO13
Raspberry Pi:GPIO13
34
GND
Raspberry Pi:GND
35
GPIO19
Raspberry Pi:GPIO19
36
GPIO16
Raspberry Pi:GPIO16
37
GPIO26
Raspberry Pi:GPIO26
38
GPIO20
Raspberry Pi:GPIO20
39
GND
Raspberry Pi:GND
40
GPIO21
Raspberry Pi:GPIO21
3.PCAP USB PIN Definition(CON3)
Pin
Symbol
Function
1
5V
Power 5V
2
D-
Data line -
3
D+
Data line +
4
NC
No connection
5
GND
Power Ground
4.HDMI
Pin No.
Symbol
I/O
Function
1
Rx2+
I
+LVDS Differential Data Input
2
GND
P
Ground
3
Rx2-
I
-LVDS Differential Data Input
4
Rx1+
I
+LVDS Differential Data Input
5
GND
P
Ground
6
Rx1-
I
-LVDS Differential Data Input
7
Rx0+
I
+LVDS Differential Data Input
8
GND
P
Ground
9
Rx0-
I
-LVDS Differential Data Input
10
RxC+
I
+LVDS Differential Clock Input
11
GND
P
Ground
12
RxC-
I
-LVDS Differential Clock Input
13-14
NC
-
No connection
15
SCL
I/O
DDC(Data Display Channel) Clock
16
SDA
I/O
DDC(Data Display Channel) Data
17
GND
P
Ground
18
5V
P
Power Supply
19
Detect
I/O
Hot plug detect
I: input, O: output, P: Power
SPECIFICATIONS
General Specifications
Item
Dimension
Unit
Size
5
inch
Dot Matrix
800 × 3(RGB) × 480
dots
Module dimension
120.7 × 75.8 × 23.2 (Max)
mm
Active area
108.0 × 64.8
mm
Dot pitch
0.135 × 0.135
mm
LCD type
TFT, Normally Black, Transmissive
View Direction
80/80/80/80
Aspect Ratio
16:9
Backlight Type
LED, Normally White
Controller IC
TFP401
Interface
Support HDMI Connector (Only DVI Signal)
PCAP IC
ILI2130 from April 2021 (FT5426DQ8 until April 2021)
PCAP FW Version
2
Touchscreen
Projected capacitive touch panel (USB)
Surface
Glare
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Products specifications
Brand
Winstar
Size
5"
Resolution
800x480
Active Area (mm)
108.00x64.80
Color
Full Color
Display Interface
HDMI
View Angle
IPS
Sunlight Readable
High 601~1200cd/m²
Frame
No
Touch Panel
Capacitive
O. Temperature (°C)
-20~70
Display Connection
HDMI Connector / Raspberry Connector
Touch Panel IC Controller
ILI2130
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
5"
Resolution
800x480
Active Area (mm)
108.00x64.80
Color
Full Color
Display Interface
HDMI
View Angle
IPS
Sunlight Readable
High 601~1200cd/m²
Frame
No
Touch Panel
Capacitive
O. Temperature (°C)
-20~70
Display Connection
HDMI Connector / Raspberry Connector
Touch Panel IC Controller
ILI2130
Preferred - Not Preferred
Preferred
Related products
CABLE_USB-MICROUSB
USB Male - MicroUSB Male Cable, Length 180cm
€16.40 excl tax
WWHDMI-00#
HDMI Connector for TFT module and Raspberry Pi 3B+ Version or below Version
From €2.60 excl tax
CABLE_HDMI
HDMI Cable V1.4 High speed, with Ethernet, Male-male connectors, 1.5 meters
€18.10 excl tax
CN43Q31XXXXXXXXXXX00
Micro-USB connector
From €3.80 excl tax
TST0005R0B4111XXXX05
Capacitive (GG) Touch panel 5", O.D. 119.70x75.20mm, I2C interface (ILI2130 IC), Glass-Glass structure, FPC per ZIF Connector (suitable for B/F/Q families)
From €19.10 excl tax
WWTFTDEMO50F-03#
Evaluation kit for TFT WF50F panel high brightness with CTP. The kit includes: CPU PIC24 + Graphic Controller SSD1963 + FFC cable 36pins + Power adapter 5V 2A (LCD module NOT included)
€58.00 excl tax
CABLE_USB90-MICROUSB_79
USB Male (RA) - MicroUSB Male Cable, Length 79mm
From €2.80 excl tax
Categories
Display Solutions
TFT LCD
TFT Panel
TFT Bar
TFT Round
TFT + Control Board
TFT SPI-Arduino
TFT HDMI
TFT Monochrome
Eval Board TFT
Industrial Monitor
Touch Panel
OLED
E-Paper & W-E
Graphic LCD
Character LCD
LCD Panel
LED Display
Accessories
Custom Display Solutions
Value Added Solutions
Intelligent Displays
Embedded Systems
Wireless & IOT
Recently viewed
WH1602B-TDI-ET#
Cookies help us deliver our services. By using our services, you agree to our use of cookies.
OK
Learn more
Log in or Register to proceed
