    WF43-480272UD#005-FC

    TFT 4.3" 480x272 LCD Panel, Interface RGB, 420cd/m², Frame, Resistive touch panel, Default Data Enable, B/L 50K hours lifetime
    Manufacturer: Winstar
    SKU: WF43-480272UD#005-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €31.30
    €28.10
    €26.50

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €31.30 excl tax
    i h

    DESCRIPTION

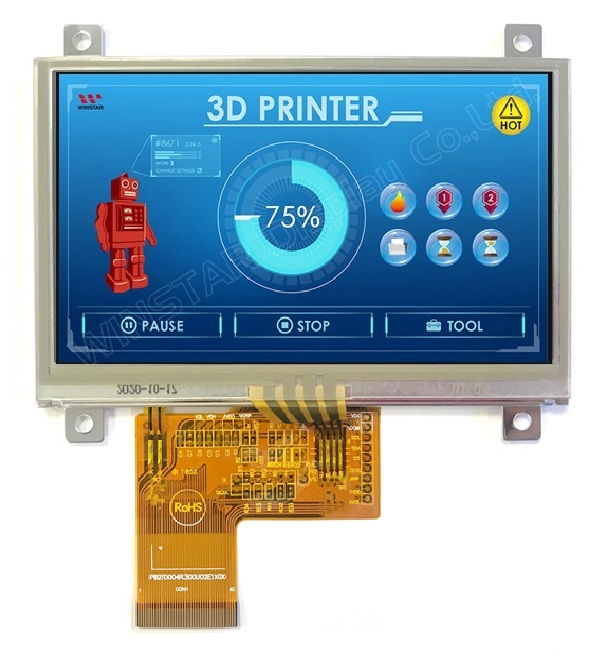

    4.3" Resistive touch panel TFT display with resolution 480x272 pixels. This TFT module is built in with Driver IC ST7282-G4-1L; it supports 24-bit RGB interface; 3.3V (typical value) power supply for Voltage (VDD); it's having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and 16:9 aspect ratio. This TFT LCD 4.3" have competitive price advantage. B/L 50K hours lifetime

    This module has brightness of 500 ~ 600 cd/m2. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



    DRAWING







    INTERFACE



    PinSymbolFunction
    1 LED- Power for LED backlight cathode
    2 LED+ Power for LED backlight anode
    3 GND Power ground
    4 VCC Power voltage
    5 R0 Red data (LSB)
    6 R1 Red data
    7 R2 Red data
    8 R3 Red data
    9 R4 Red data
    10 R5 Red data
    11 R6 Red data
    12 R7 Red data (MSB)
    13 G0 Green data (LSB)
    14 G1 Green data
    15 G2 Green data
    16 G3 Green data
    17 G4 Green data
    18 G5 Green data
    19 G6 Green data
    20 G7 Green data (MSB)
    21 B0 Blue data (LSB)
    22 B1 Blue data
    23 B2 Blue data
    24 B3 Blue data
    25 B4 Blue data
    26 B5 Blue data
    27 B6 Blue data
    28 B7 Blue data (MSB)
    29 GND Power ground
    30 CLK Pixel clock
    31 DISP Display on/off
    32 NC No connection
    33 NC No connection
    34 DE Data Enable
    35 NC No connection
    36 GND Power ground
    37 XR Right electrode
    38 YD Bottom electrode
    39 XL Left electrode
    40 YU Top electrode
    Products specifications
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame Yes
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
