    WF43-480272A3D#AP7-FC

    Be the first to review this product

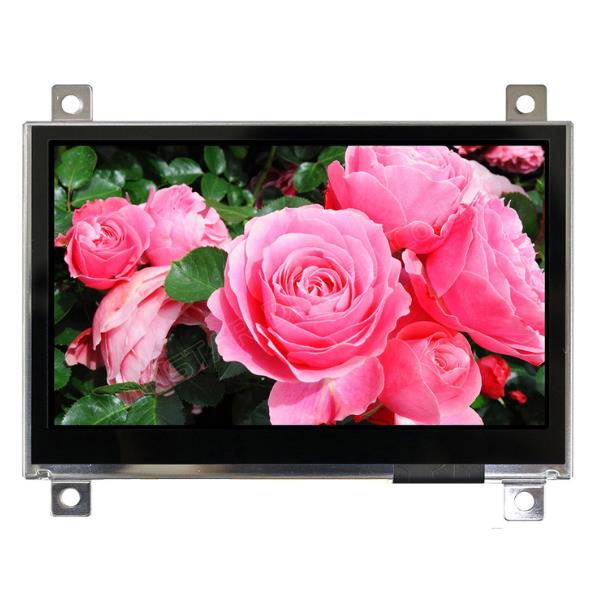

    TFT 4.3" 480x272 LCD Panel, Interface RGB, 400cd/m², IPS, Frame, Capacitive Touch panel I2C interface (GG, ST1624 IC)
    Manufacturer: Winstar
    SKU: WF43-480272A3D#AP7-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €28.30
    €25.40
    €23.90

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €28.30 excl tax
    i h

    DESCRIPTION

    TFT 4.3" is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The module has a 4.28 inch diagonally measured active area with 480x272 resolutions (480 horizontal by 272 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.


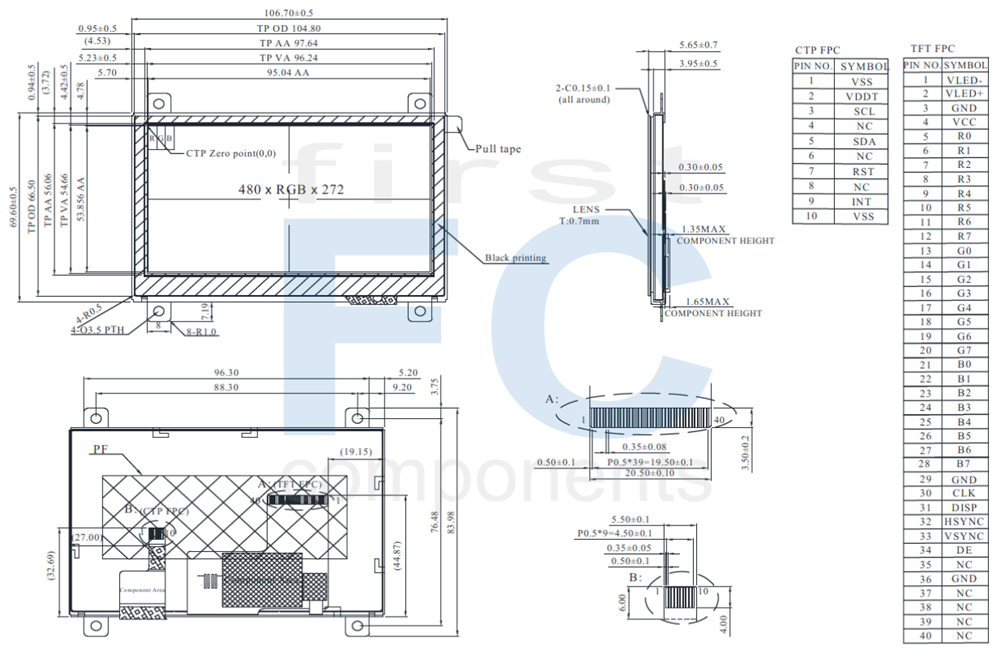

    DRAWING

    SPECIFICATIONS

    Interface

    PinSymbolFunction
    1 VLED- Power for LED backlight cathode
    2 VLED+ Power for LED backlight anode
    3 GND Power ground
    4 VCC Power voltage
    5 R0 Red data
    6 R1 Red data
    7 R2 Red data
    8 R3 Red data
    9 R4 Red data
    10 R5 Red data
    11 R6 Red data
    12 R7 Red data
    13 G0 Green data
    14 G1 Green data
    15 G2 Green data
    16 G3 Green data
    17 G4 Green data
    18 G5 Green data
    19 G6 Green data
    20 G7 Green data
    21 B0 Blue data
    22 B1 Blue data
    23 B2 Blue data
    24 B3 Blue data
    25 B4 Blue data
    26 B5 Blue data
    27 B6 Blue data
    28 B7 Blue data
    29 GND Power ground
    30 CLK Pixel clock input pin (DCLK)
    31 DISP DISP sets the display mode.
    DISP Function Description
    L Standby mode
    H Normal display mode
    32 HSYNC Horizontal sync signal, default is negative polarity
    33 VSYNC Vertical sync signal, defualt is negative polarity
    34 DE Data input enable
    35 NC No connection
    36 GND Power ground
    37 NC No connection
    38 NC No connection
    39 NC No connection
    40 NC No connection

    CTP PIN Definition

    PinSymbolFunction
    1 VSS Ground for analog circuit
    2 VDDT Power Supply: +3.3V
    3 SCL I2C clock input
    4 NC No connection
    5 SDA I2C data input and output
    6 NC No connection
    7 /RST Esternal Reset, Low is active
    8 NC No connection
    9 /INT External interrupt to the host
    10 VSS Ground for analog circuit


    General Specifications

    ItemDimensionUnit
    Size 4.3 inch
    Dot Matrix 480 × RGB × 272 (TFT) dots
    Module dimension 106.7(W) × 83.98(H) × 5.65(D) mm
    Active area 95.04 × 53.856 mm
    Pixel pitch 0.198 × 0.198 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 85/85/85/85
    Aspect Ratio 16:9
    TFT Driver IC NV3047E or equivalent
    TFT Interface 24-bit RGB
    CTP Driver IC ST1624 or equivalent
    CTP Interface I2C
    CTP FW Version 0X01
    CTP Resolution 480*272
    Backlight Type LED, Normally White
    With/Without TP With CTP
    Surface Glare


    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 － +70 ℃
    Storage Temperature TST -30 － +80 ℃


    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage For LCM VCC 3.0 3.3 3.6 V
    Supply Current For LCM ICC - 25 40 mA
    Supply CTP VDDT - 3.3 - V
    ICTP - 15 25 mA
    Products specifications
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller ST1624
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
