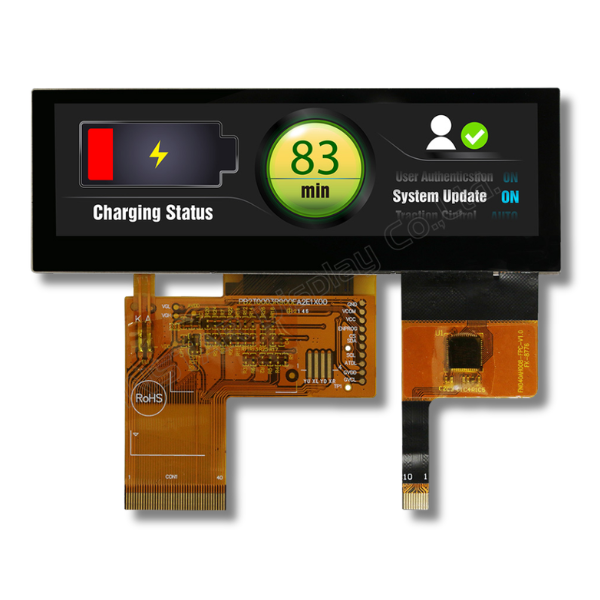

WF39-480128FD#0SPW3-FC

TFT 3.9" 480x128, Bar Type, Interface RGB, High Brightness 800cd/m², Wide View Angle (IPS), Super Extended Temperature, Capacitive Touch Panel I2C interface (GG, IC GT911)

DESCRIPTION

TFT 3.9” is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The Q-Panel has a 3.9 inch diagonally measured active area with 480×128 resolutions (480 horizontal by 128 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this Q-Panel can display 16.7 M colors.

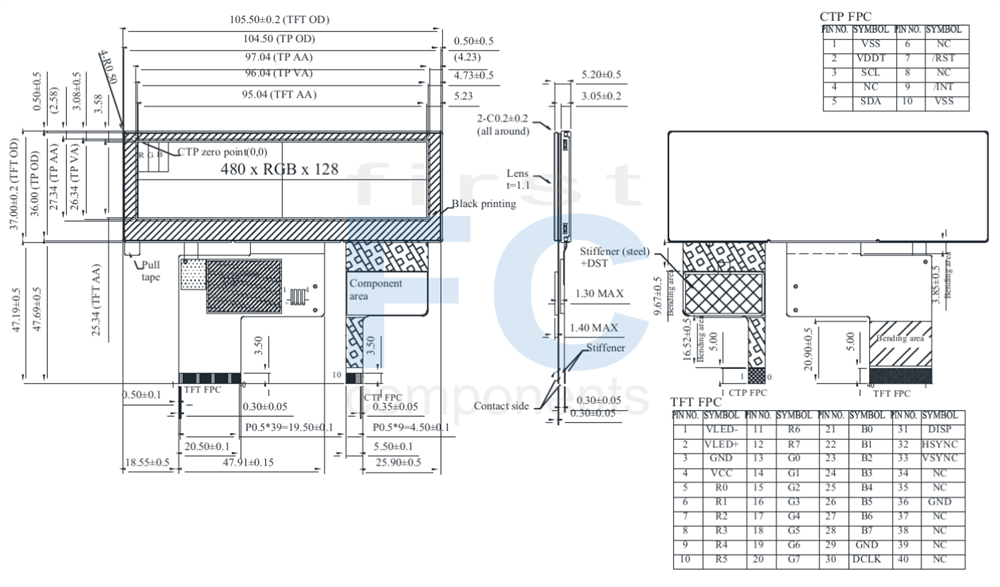

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 DCLK Pixel clock input pin
31 DISP DISP sets the display mode.
DISPFunction Description
L Standby mode
H Normal display mode
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 NC No connection
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply for CTP
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × RGB × 128 (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 5.2(D) mm
Active area 95.04 × 25.34 mm
Pixel Pitch 0.198 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
Aspect Ratio Bar Type
TFT Driver IC ST7282A or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
CTP Driver IC GT911 or equivalent
CTP Interface I2C
CTP FW Version 0X99
CTP Resolution 480*128
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -40 － +90 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 14 25 mA
Supply CTP VDDT 2.8 - 3.3 V
IVDDT - 7 10.5 mA



SKU: WF39-480128FD#0SPW3-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€41.40
€37.20
€35.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€41.40 excl tax

DESCRIPTION

TFT 3.9” is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The Q-Panel has a 3.9 inch diagonally measured active area with 480×128 resolutions (480 horizontal by 128 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this Q-Panel can display 16.7 M colors.

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 DCLK Pixel clock input pin
31 DISP DISP sets the display mode.
DISPFunction Description
L Standby mode
H Normal display mode
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 NC No connection
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply for CTP
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × RGB × 128 (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 5.2(D) mm
Active area 95.04 × 25.34 mm
Pixel Pitch 0.198 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
Aspect Ratio Bar Type
TFT Driver IC ST7282A or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
CTP Driver IC GT911 or equivalent
CTP Interface I2C
CTP FW Version 0X99
CTP Resolution 480*128
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -40 － +90 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 14 25 mA
Supply CTP VDDT 2.8 - 3.3 V
IVDDT - 7 10.5 mA



Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Related products

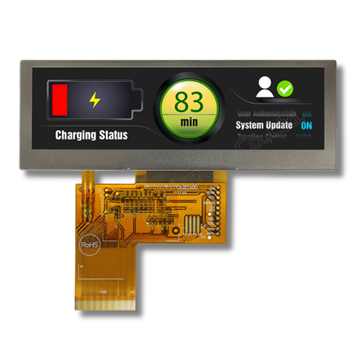

Picture of WF39-480128FD#0SPW0-FC
