WF39-480128BD#001-FC

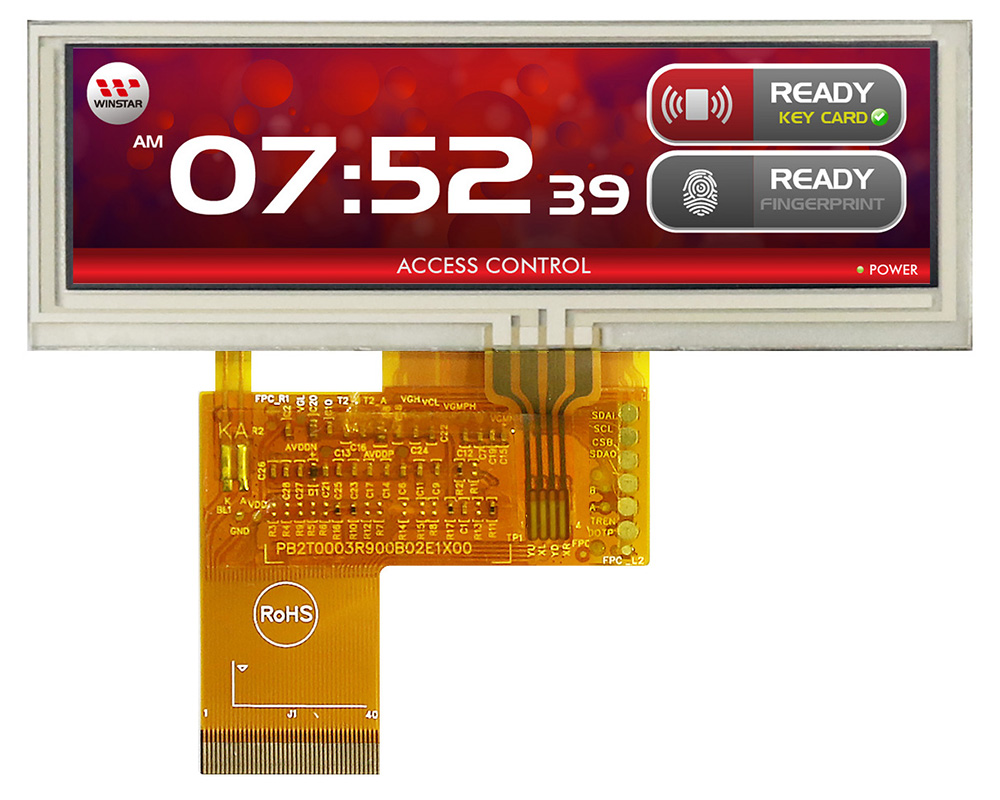

Picture of WF39-480128BD#001-FC Picture of WF39-480128BD#001-FC
TFT 3.9" 480x128, Bar Type, Interface RGB, 350cd/m², View direction 6H, Resistive touch panel

DESCRIPTION

Widescreen 3.9" stretched bar LCD display with resistive touch panel on module. This model is featured with resolution 480x128 pixels; built in with Driver IC HX8278, it supports RGB 24bit interface; 3.3V (typical) power supply; supports SYNC mode or DE mode, default SYNC mode. Its luminance is 350 Nits; Contrast ratio of 500:1, gray scale inversion direction 12 o’clock. Operating temperature from -20℃ to +70℃; storage temperature range from -30℃ to +80℃.

This Bar Type 3.9 inch TFT-LCD display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.

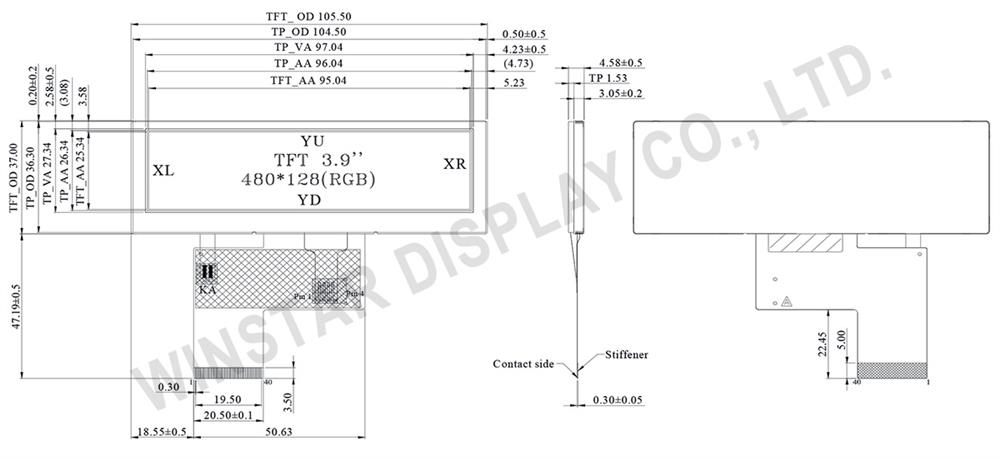

DRAWING



SPECIFICATIONS



Interface

No.SymbolDescription
1 VLED- Backlight LED Cathode
2 VLED+ Backlight LED Anode.
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus
13~20 G0~G7 Data bus
21~28 B0~B7 Data bus
29 GND System Ground
30 DCLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vrtical Sync signal
34 NC No connection (Option DE)
35 NC No connection
36 GND System Ground
37 XR Right electrode
38 YD Bottom electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × 128 × RGB (TFT) dots
Module dimension 105.5(W) × 37.0(H) × 4.58(D) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
TFT Driver IC HX8278-A Or Equal
TFT Interface RGB-24BIT (SYNC mode)
Touch Screen Resistive Touch Screen (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC － － 15 25 mA


SKU: WF39-480128BD#001-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€38.90
€31.10
€26.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€38.90 excl tax
