    WF28-240320JD#0P0-FC

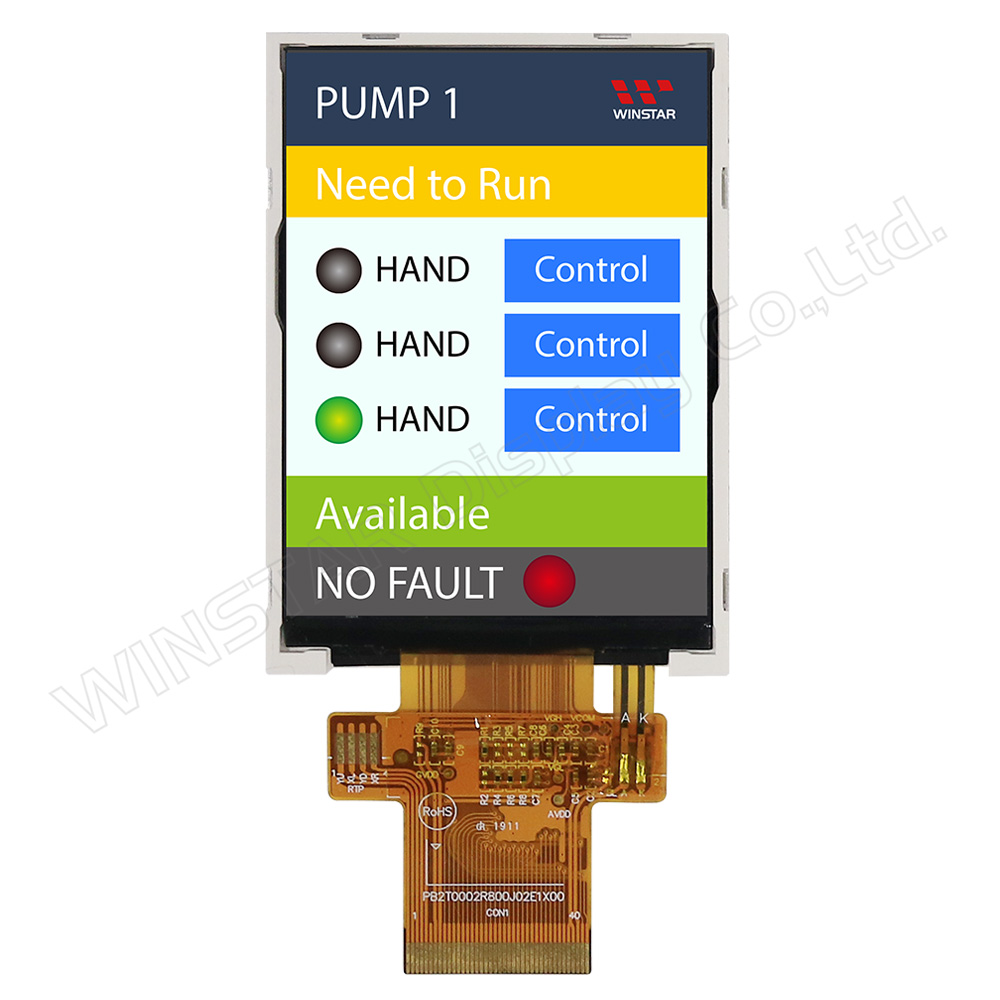

    TFT 2.8" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ILI9341V, 500cd/m², Wide View Angle (IPS), No touch
    Manufacturer: Winstar
    SKU: WF28-240320JD#0P0-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €16.30
    €14.70
    €13.80

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €16.30 excl tax
    i h

    DESCRIPTION



    2.8 inch wider view angle IPS TFT LCD module, with resolution 240x320 pixels. Portrait mode IPS TFT-LCD; this module is built in with ILI9341 controller IC; it supports MCU 8-bit/16-bit or SPI interface, contrast ratio 800 (typical value).&nbsp.  This 2.8” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for interface logic (IOVCC) of WF28J model is from 1.65V to 3.3V, supply for analog circuit is from 2.5V ~3.3V, normally black, transmissive LCD type, aspect ratio 3:4, glare surface glass. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

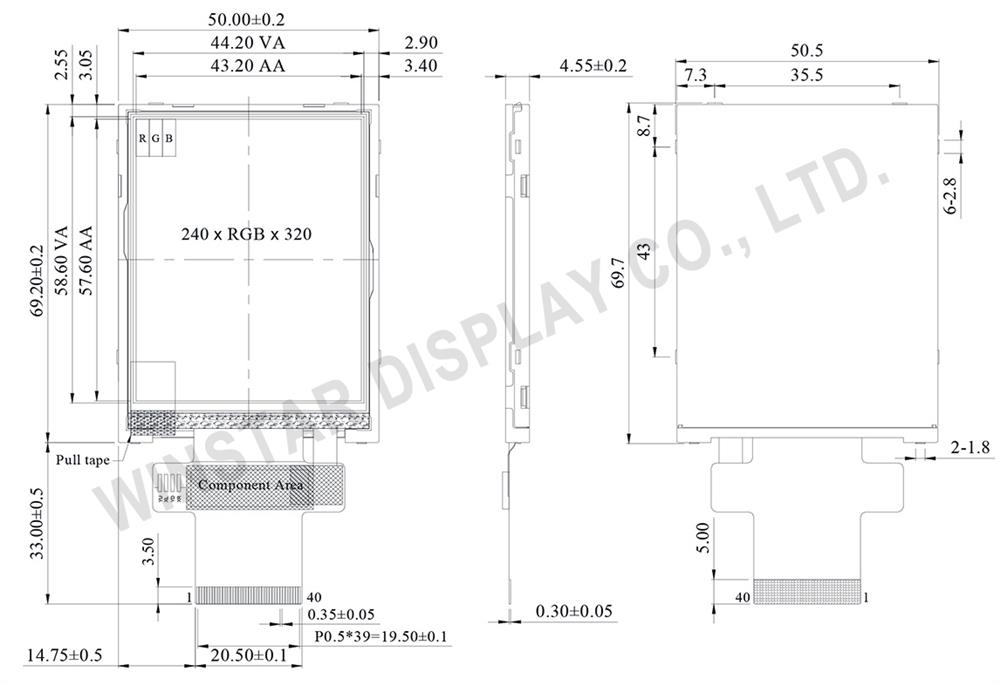

    DRAWING



    2.8 inch 240x320 Sunlight Readable TFT IPS LCD - WF28JSYAJDNN0 - Winstar Display

    SPECIFICATIONS



    Interface Pin Function



    LCM PIN Definition

    NOSymbolFunctionI/O
    1 GND Ground P
    2-6 NC No connection -
    7 VCI High voltage power supply for analog circuit blocks
    (2.5 ~ 3.3 V)
    P
    8 IOVCC Low voltage power supply for interface logic circuits
    (1.65 ~ 3.3 V)
    P
    9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
    If not used, open this pin.
    O
    10 CS Chip select signal. I
    11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
    When DCX = 1, data is selected.
    When DCX = 0, command is selected.
    (SCL): This pin is used as the serial interface clock in 3-wire
    9-bit/4-wire 8-bit serial data interface.
    If not used, this pin should be connected to VDDI or VSS.
    I
    12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
    (D/CX) - 4-line system: Serves as the selector of command or parameter.
    Fix to VDDI level when not in use.
    I
    13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
    Fix to VDDI level when not in use.
    I
    14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system and RGB
    interface mode
    Fix to VSS level when not in use.
    I/O
    30 RESET This signal will reset the device and must be applied to properly initialize the chip.
    Signal is active low.
    I
    31 IM0 Select the MCU interface mode
    IM2IM11M0MCU-Interface ModeDB Pin in use
    Register/ContentGRAM
    0 0 0 80 MCU 8-bit bus interface I D[7:0] D[7:0]
    0 0 1 80 MCU 16-bit bus interface I D[7:0] D[15:0]
    0 1 0 80 MCU 9-bit bus interface I D[7:0] D[8:0]
    0 1 1 80 MCU 18-bit bus interface I D[7:0] D[17:0]
    1 0 1 3-wire 9-bit data serial interface I SDA: In/Out
    1 1 0 4-wire 8-bit data serial interface I SDA: In/Out
    MPU Parallel interface bus and serial interface select
    If use RGB Interface must select serial interface.
    * : Fix this pin at VDDI or VSS.
    I
    32 IM1
    33 IM2
    34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB
    interface mode
    Fix to VSS level when not in use.
    I/O
    35 DB17
    36 LEDK Cathode of LED backlight. P
    37 LEDK Cathode of LED backlight. P
    38 LEDA Anode of LED backlight. P
    39 SDI(SDA) When IM[3] : Low, Serial in/out signal.
    When IM[3] : High, Serial input signal.
    The data is applied on the rising edge of the SCL signal.
    If not used, fix this pin at VDDI or VSS.
    I/O
    40 SDO Serial output signal.
    The data is outputted on the falling edge of the SCL signal.
    If not used, open this pin
    O



    General Specifications

    ItemDimensionUnit
    Size 2.8 inch
    Dot Matrix 240 x RGB x 320(TFT) dots
    Module dimension 50.5(W) x 69.7(H) x 4.55(D) mm
    Active area 43.2 x 57.6 mm
    Dot pitch 0.18 x 0.18 mm
    LCD type TFT, Normally Black, Transmissive
    TFT Driver IC ILI9341 or equivalent
    TFT Interface MCU/SPI
    Viewing angle 80/80/80/80
    Aspect Ratio 3:4
    Backlight Type LED,Normally White
    Touch Panel Without Touch Panel
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for digital IOVCC - 1.65 - 3.3 V
    Supply Voltage for analog VCI - 2.5 - 3.3 V
    Power Supply for Current ICC IOVCC=VCI
    =VCC=3.28V
    - 12 18 mA
    Products specifications
    Size 2.8"
    Resolution 240x320
    Active Area (mm) 43.20x57.60
    Color Full Color
    Display Interface MCU (Parallel/SPI)
    Display IC ILI9341
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
