WF20-240320BD#0SP0-FC
WF20-240320BD#0SP0-FC
TFT 2" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ST7789VI, High Brightness 950cd/m², Wide View Angle (IPS), No touch

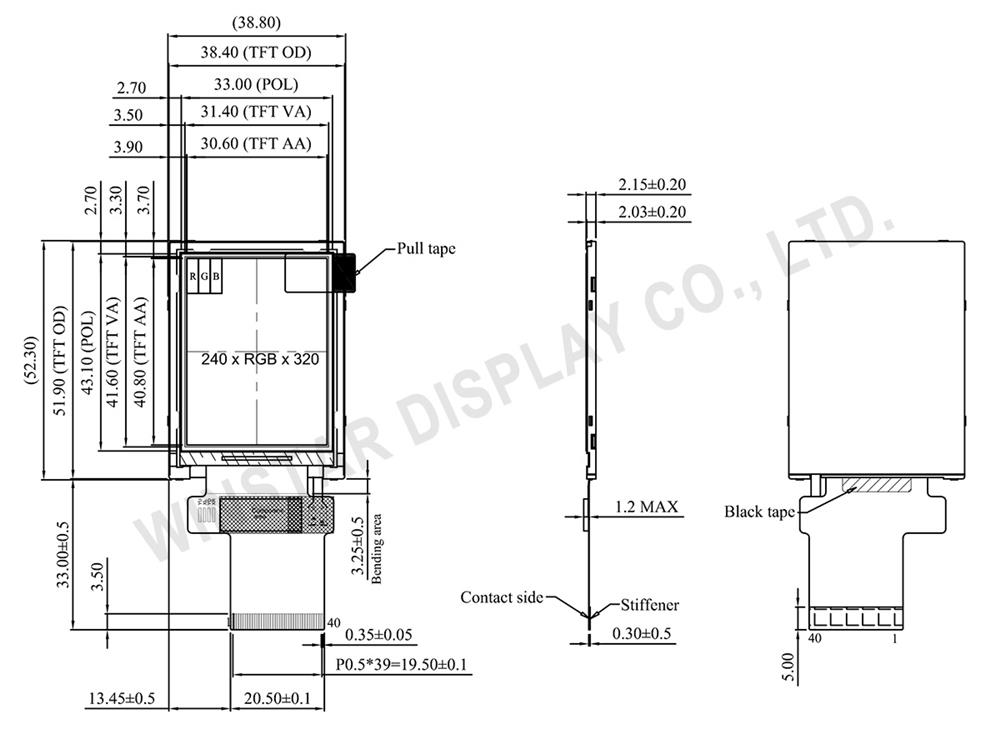

DRAWING
SPECIFICATIONS
Interface Pin Function
No.
Symbol
Function
1
GND
Ground
2
NC
No connection
3
NC
No connection
4
NC
No connection
5
NC
No connection
6
NC
No connection
7
VDD
Power supply
8
VDDI
Power Supply for I/O System.
9
TE
Tearing effect signal is used to synchronize MCU to frame memory
writing.
If not used, please let this pin open
10
CSX
Chip selection pin
Low enable.
High disable.
11
DCX(SCL)
(D/CX): This pin is used to select “Data or Command” in the parallel interface.
DCX=’1’: display data or parameter.
DCX=’0’: command data.
(SCL): When SPI mode,This pin is used to be serial interface clock.
12
WRX(D/CX)
Display data/command selection
Second Data lane in 2 data lane serial interface.
(WRX): Write enable in MCU parallel interface.
(D/CX): When 4-SPI mode,This pin in 4-line serial interface
If not used, please fix this pin at VDDI or GND.
13
RDX
-Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at VDDI or GND.
14~29
DB0~DB15
Data bus line
30
RESX
System reset pin.
signal is active low
31
IM0
The MCU interface mode select.
IM2
IM1
IM0
MPU Interface Mode
Data pin
0
0
0
80-8bit parallel I/F
DB[7:0]
0
0
1
80-16bit parallel I/F
DB[15:0]
0
1
0
80-9bit parallel I/F
DB[8:0]
0
1
1
80-18bit parallel I/F
DB[17:0]
1
0
1
3-line 9bit serial I/F
SDA: in/out
1
1
0
4-line 8bit serial I/F
SDA: in/out
32
IM1
33
IM2
34~35
DB16~DB17
Data bus line
36
VLED-
Cathode of LED backlight.
37
VLED-
Cathode of LED backlight.
38
VLED+
Anode of LED backlight.
39
NC(SDA)
When SPI mode, This pin is SPI interface input/output pin.
The data is latched on the rising edge of the SCL signal.
If not used(NC), please fix this pin at VDDI or GND level.
40
NC
No connection
General Specifications
Item
Dimension
Unit
Size
2
inch
Dot Matrix
240 x RGB x 320(TFT)
dots
Module dimension
38.8(W) x 52.3(H) x 2.15(D)
mm
Active area
30.60 x 40.80
mm
Pixel Pitch
0.1275 x 0.1275
mm
LCD type
TFT, Normally Black, Transmissive
TFT Interface
MCU / SPI
TFT Driver IC
ST7789VI or Equivalent
Viewing angle
80/80/80/80
Aspect Ratio
3:4
Backlight Type
LED,Normally White
Touch Panel
Without Touch Panel
Surface
Glare
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Electrical Characteristics
Item
Symbol
Condition
Min
Typ
Max
Unit
Supply Voltage For Analog
VDD
-
2.4
3.3
3.6
V
Interface Operation Voltage
VDDI
-
1.65
1.8
3.6
V
Supply Current For LCM
IDD
VDD = VDDI
= VCC=3.0V
-
6.0
9.0
mA
SKU:
WF20-240320BD#0SP0-FC
Brand:
Winstar
Available:
No
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
CNR5231XXXXXXXXXXX01 [+€2.80]
CNR6231XXXXXXXXXXX00 [+€2.80]
