WF18-128160GS#000-FC

Picture of WF18-128160GS#000-FC Picture of WF18-128160GS#000-FC
TFT 1.77" 128x160 Portrait LCD Panel, Interface MCU (SPI) IC ST7735S, 500cd/m², No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



MOQ

After sample PO, MP MOQ 500

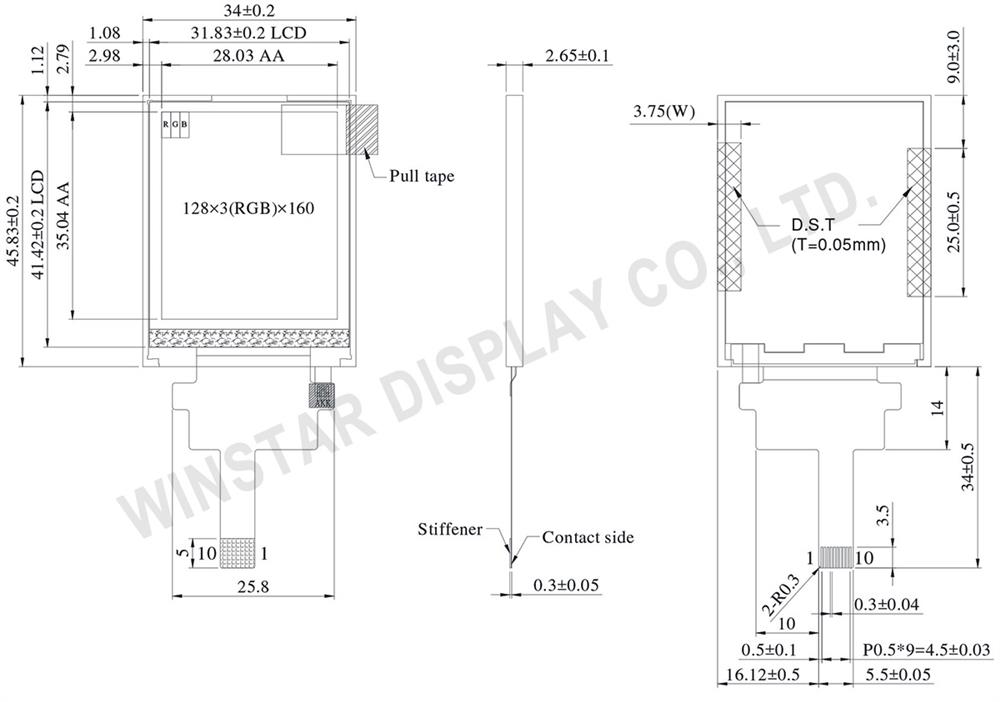

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolI/OFunction
1 LED+ P Back light anode
2 LED- P Back light cathode
3 SPI4W
(VCC=4 WIRE)		 I - SPI4W='0', 3-line SPI Enable.
- SPI4W='1', 4-line SPI Enable.
-If Not Used, Please fix this Pin at DGND Level.
4 VCC P Power Supply.
5 GND P Ground
6 CS I Chip enable (CSX)
7 RST I Reset signal (RESX)
8 SDA I/O Serial input/output signal in serial interface mode.
9 SCL I In Serial Interface, this is used as SCL.
10 D/C I Data/ command selection. (D/CX)



General Specifications

ItemDimensionUnit
Size 1.77 inch
Dot Matrix 128 × RGB × 160(TFT) dots
Module dimension 34.0(W) × 45.83(H) × 2.65(D) mm
Active area 28.03 × 35.04 mm
Dot pitch 0.073 × 0.219 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
IC ST7735S or Equivalent
Interface SPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCI － 2.5 2.75 3.7 V
Supply LCM current ICI(mA) － － 0.9 2 mA


SKU: WF18-128160GS#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€10.30
€9.30
€8.70
€8.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€10.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



MOQ

After sample PO, MP MOQ 500



DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolI/OFunction
1 LED+ P Back light anode
2 LED- P Back light cathode
3 SPI4W
(VCC=4 WIRE)		 I - SPI4W='0', 3-line SPI Enable.
- SPI4W='1', 4-line SPI Enable.
-If Not Used, Please fix this Pin at DGND Level.
4 VCC P Power Supply.
5 GND P Ground
6 CS I Chip enable (CSX)
7 RST I Reset signal (RESX)
8 SDA I/O Serial input/output signal in serial interface mode.
9 SCL I In Serial Interface, this is used as SCL.
10 D/C I Data/ command selection. (D/CX)



General Specifications

ItemDimensionUnit
Size 1.77 inch
Dot Matrix 128 × RGB × 160(TFT) dots
Module dimension 34.0(W) × 45.83(H) × 2.65(D) mm
Active area 28.03 × 35.04 mm
Dot pitch 0.073 × 0.219 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
IC ST7735S or Equivalent
Interface SPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCI － 2.5 2.75 3.7 V
Supply LCM current ICI(mA) － － 0.9 2 mA


Date Notice Link/Description
2026/07/07 PCN

Winstar TFT Serie WF096*F e WF18*F/G/H per EOL ST7735S-G4-1
2026/09/14 EOL

Winstar TFT Series WF18*F/G/H, WF40*C & WF101*J due to Hannstar Panel End of Life



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 1.77"
Resolution 128x160
Active Area (mm) 28.03x35.04
Color Full Color
Display Interface MCU (SPI)
Display IC ST7735S
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 1.77"
Resolution 128x160
Active Area (mm) 28.03x35.04
Color Full Color
Display Interface MCU (SPI)
Display IC ST7735S
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
