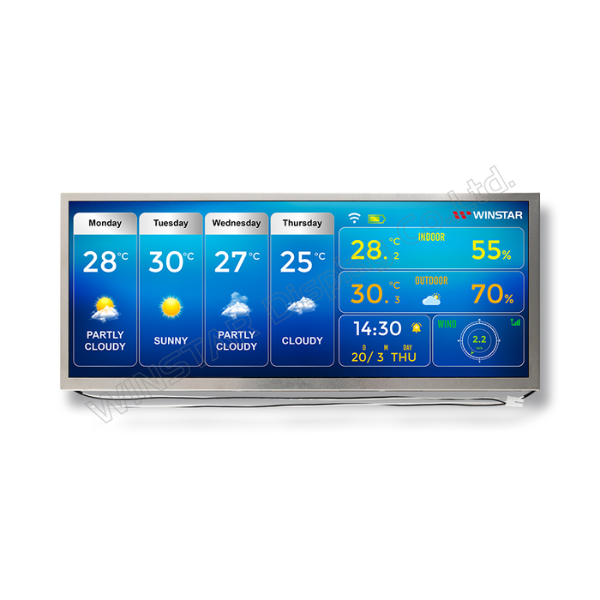

WF123-1920720EL#0PW0-FC

TFT 12.3" 1920x720, Bar Type, Interface LVDS (50 pins), High Brightness 800cd/m², Wide View Angle (IPS), Super extended Temperature, No touch

DESCRIPTION

WF123-1920720EL#0PW0-FC is an ultra-wide temperature 12.3-inch IPS TFT LCD display module with a 1920x720 resolution, designed to deliver stable, precise display performance for various applications. This module supports an 8-bit D-LVDS interface and provides a typical brightness of 800 nits, with a contrast ratio of 1000:1, making it suitable for industrial control, onboard passenger information systems, train carriage display systems, dashboards, retail and commercial displays, as well as medical monitoring systems that require high-quality visuals.

Leveraging IPS technology, the WF123-1920720EL#0PW0-FC ensures excellent color accuracy and wide viewing angles of 88° in all directions (left, right, up, and down), maintaining consistent display quality from virtually any angle. This feature is crucial for applications that require long-term, stable display performance and need to maintain visibility even under varying observation angles.

The module operates within a wide temperature range from -30℃ to +85℃, and the storage temperature range extends from -40℃ to +90℃, ensuring stable performance in harsh environments. This broad temperature tolerance makes the display module ideal for use in industrial, transportation, retail, and other demanding applications.

The module's supply voltage range is 3.0V to 3.6V, with a typical value of 3.3V. It is driven by the FL5894 and ST5086 ICs, enhancing driving stability and display performance. Additionally, as a Bar Type display module, the WF123-1920720EL#0PW0-FC is designed to meet the needs of industrial and commercial applications requiring high resolution, high brightness, and reliable display performance.

This display module not only offers high resolution and brightness but also features excellent integration capabilities, supporting quick customization and easy integration into various display systems. It is the ideal choice for professional applications that demand high-quality displays with high stability and durability.

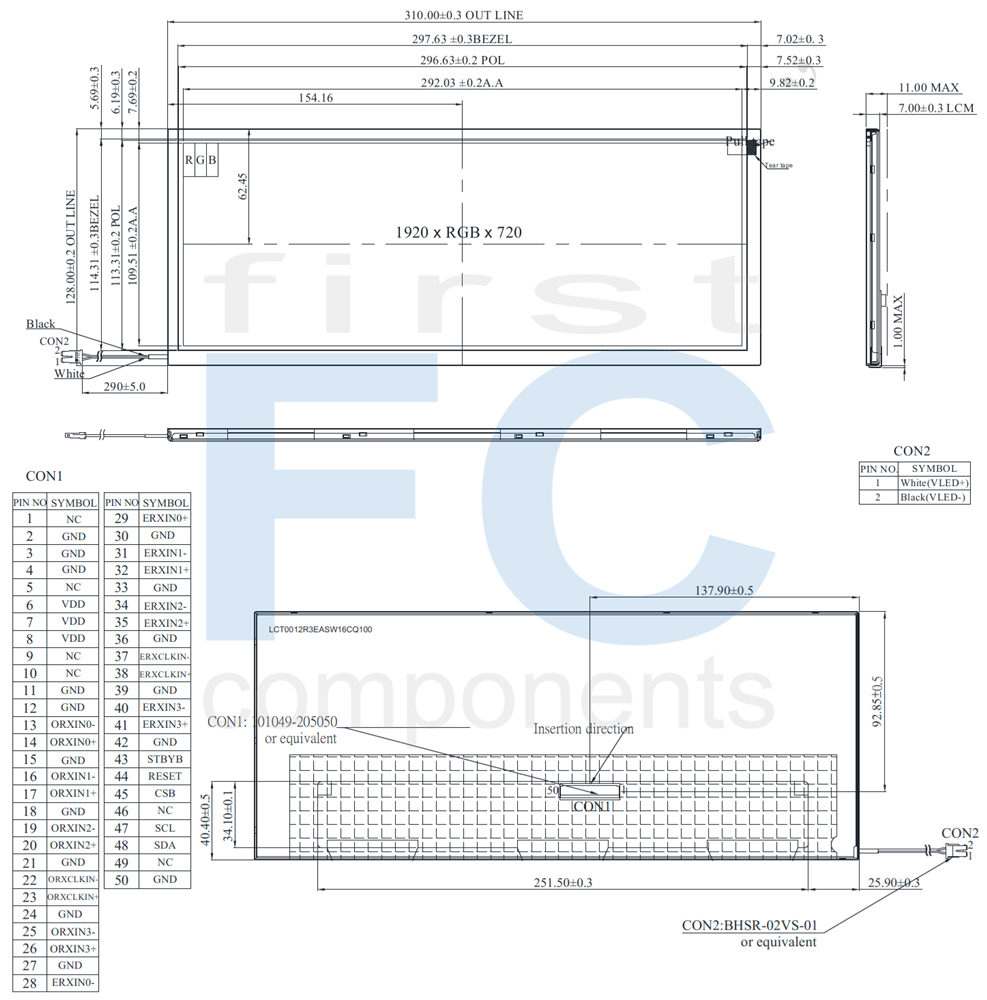

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 12.3 inch
Pixel Number 1920 × RGB × 720 pixel
Module dimension 310.0(H) × 128.0(V) × 11.0 mm
Active Area 292.032(H) × 109.512(V) mm
Pixel Pitch 0.1521(H) × 0.1521 (V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 88/88/88/88
Backlight Type LED, Normally White
TFT Interface 8 bits-D-LVDS
TFT Driver IC FL5894+ST5086
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90



Electrical Characteristics

TFT LCD Module

ItemSymbolMin.Typ.Max.Unit
Supply Voltage/current VDD 3.0 3.3 3.6 V
IDD - - 550  mA
Logic Low input voltage VIL 0 - 0.3*VDD V
Logic High input voltage VIH 0.7*VDD - VDD V


Backlight Driving Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VLED 21.0 26.0 V
Current for LED backlight IL 360 mA
LED life time 30,000 Hr




Interface

TFT LCD MODULE

Pin no.SymbolFunction
1 NC No connection
2 GND Ground
3 GND Ground
4 GND Ground
5 NC No connection
6 VDD Power Supply: +3.3V
7 VDD Power Supply: +3.3V
8 VDD Power Supply: +3.3V
9 NC No connection
10 NC No connection
11 GND Ground
12 GND Ground
13 ORXIN0- LVDS Receiver Signal(-)
14 ORXIN0+ LVDS Receiver Signal(+)
15 GND Ground
16 ORXIN1- LVDS Receiver Signal(-)
17 ORXIN1+ LVDS Receiver Signal(+)
18 GND Ground
19 ORXIN2- LVDS Receiver Signal(-)
20 ORXIN2+ LVDS Receiver Signal(+)
21 GND Ground
22 ORXCLKIN- LVDS Receiver Signal(-)
23 ORXCLKIN+ LVDS Receiver Signal(+)
24 GND Ground
25 ORXIN3- LVDS Receiver Signal(-)
26 ORXIN3+ LVDS Receiver Signal(+)
27 GND Ground
28 ERXIN0- LVDS Receiver Signal(-)
29 ERXIN0+ LVDS Receiver Signal(+)
30 GND Ground
31 ERXIN1- LVDS Receiver Signal(-)
32 ERXIN1+ LVDS Receiver Signal(+)
33 GND Ground
34 ERXIN2- LVDS Receiver Signal(-)
35 ERXIN2+ LVDS Receiver Signal(+)
36 GND Ground
37 ERXCLKIN- LVDS Receiver Signal(-)
38 ERXCLKIN+ LVDS Receiver Signal(+)
39 GND Ground
40 ERXIN3- LVDS Receiver Signal(-)
41 ERXIN3+ LVDS Receiver Signal(+)
42 GND Ground
43 STBYB STBYB Signal
44 RESET RESET Signal
45 CSB SPI signal
46 NC No connection
47 SCL SPI signal
48 SDA SPI signal
49 NC No connection
50 GND Ground
SKU: WF123-1920720EL#0PW0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€137.50
€130.70
€110.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€137.50 excl tax

DESCRIPTION

WF123-1920720EL#0PW0-FC is an ultra-wide temperature 12.3-inch IPS TFT LCD display module with a 1920x720 resolution, designed to deliver stable, precise display performance for various applications. This module supports an 8-bit D-LVDS interface and provides a typical brightness of 800 nits, with a contrast ratio of 1000:1, making it suitable for industrial control, onboard passenger information systems, train carriage display systems, dashboards, retail and commercial displays, as well as medical monitoring systems that require high-quality visuals.

Leveraging IPS technology, the WF123-1920720EL#0PW0-FC ensures excellent color accuracy and wide viewing angles of 88° in all directions (left, right, up, and down), maintaining consistent display quality from virtually any angle. This feature is crucial for applications that require long-term, stable display performance and need to maintain visibility even under varying observation angles.

The module operates within a wide temperature range from -30℃ to +85℃, and the storage temperature range extends from -40℃ to +90℃, ensuring stable performance in harsh environments. This broad temperature tolerance makes the display module ideal for use in industrial, transportation, retail, and other demanding applications.

The module's supply voltage range is 3.0V to 3.6V, with a typical value of 3.3V. It is driven by the FL5894 and ST5086 ICs, enhancing driving stability and display performance. Additionally, as a Bar Type display module, the WF123-1920720EL#0PW0-FC is designed to meet the needs of industrial and commercial applications requiring high resolution, high brightness, and reliable display performance.

This display module not only offers high resolution and brightness but also features excellent integration capabilities, supporting quick customization and easy integration into various display systems. It is the ideal choice for professional applications that demand high-quality displays with high stability and durability.

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 12.3 inch
Pixel Number 1920 × RGB × 720 pixel
Module dimension 310.0(H) × 128.0(V) × 11.0 mm
Active Area 292.032(H) × 109.512(V) mm
Pixel Pitch 0.1521(H) × 0.1521 (V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 88/88/88/88
Backlight Type LED, Normally White
TFT Interface 8 bits-D-LVDS
TFT Driver IC FL5894+ST5086
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90



Electrical Characteristics

TFT LCD Module

ItemSymbolMin.Typ.Max.Unit
Supply Voltage/current VDD 3.0 3.3 3.6 V
IDD - - 550  mA
Logic Low input voltage VIL 0 - 0.3*VDD V
Logic High input voltage VIH 0.7*VDD - VDD V


Backlight Driving Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VLED 21.0 26.0 V
Current for LED backlight IL 360 mA
LED life time 30,000 Hr




Interface

TFT LCD MODULE

Pin no.SymbolFunction
1 NC No connection
2 GND Ground
3 GND Ground
4 GND Ground
5 NC No connection
6 VDD Power Supply: +3.3V
7 VDD Power Supply: +3.3V
8 VDD Power Supply: +3.3V
9 NC No connection
10 NC No connection
11 GND Ground
12 GND Ground
13 ORXIN0- LVDS Receiver Signal(-)
14 ORXIN0+ LVDS Receiver Signal(+)
15 GND Ground
16 ORXIN1- LVDS Receiver Signal(-)
17 ORXIN1+ LVDS Receiver Signal(+)
18 GND Ground
19 ORXIN2- LVDS Receiver Signal(-)
20 ORXIN2+ LVDS Receiver Signal(+)
21 GND Ground
22 ORXCLKIN- LVDS Receiver Signal(-)
23 ORXCLKIN+ LVDS Receiver Signal(+)
24 GND Ground
25 ORXIN3- LVDS Receiver Signal(-)
26 ORXIN3+ LVDS Receiver Signal(+)
27 GND Ground
28 ERXIN0- LVDS Receiver Signal(-)
29 ERXIN0+ LVDS Receiver Signal(+)
30 GND Ground
31 ERXIN1- LVDS Receiver Signal(-)
32 ERXIN1+ LVDS Receiver Signal(+)
33 GND Ground
34 ERXIN2- LVDS Receiver Signal(-)
35 ERXIN2+ LVDS Receiver Signal(+)
36 GND Ground
37 ERXCLKIN- LVDS Receiver Signal(-)
38 ERXCLKIN+ LVDS Receiver Signal(+)
39 GND Ground
40 ERXIN3- LVDS Receiver Signal(-)
41 ERXIN3+ LVDS Receiver Signal(+)
42 GND Ground
43 STBYB STBYB Signal
44 RESET RESET Signal
45 CSB SPI signal
46 NC No connection
47 SCL SPI signal
48 SDA SPI signal
49 NC No connection
50 GND Ground
Products specifications
Brand Winstar
Size 12.3"
Resolution 1920x720
Active Area (mm) 292.03x109.51
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
