WF101-19201200NL#0P3-FC

Picture of WF101-19201200NL#0P3-FC Picture of WF101-19201200NL#0P3-FC
TFT 10.1" 1920x1200, LCD Module, Interface LVDS, 400cd/m², Wide View Angle (IPS), Standard Temp., Capacitive touch panel USB interface (GG, GT928 IC)

DESCRIPTION

WF101-19201200NL#0P3-FC is a WUXGA 10.1 inch TFT LCD and touchscreen features. With the projected capacitive touch panel, the module allows for intuitive and responsive touch interactions, simultaneously detecting up to 10 fingers. Plus, it is equipped with IPS technology, offering a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical).

This TFT LCD has a high resolution of 1920x1200 dots and a 400 cd/m2 brightness to ensure image clarity and detail for various display applications. The driver IC of the module is FL5893DA, with a 2-ch LVDS interface support. The power supply voltage (VCC) for this TFT-LCD HD is from 3.0V to 3.6V, and the typical value is 3.3V.



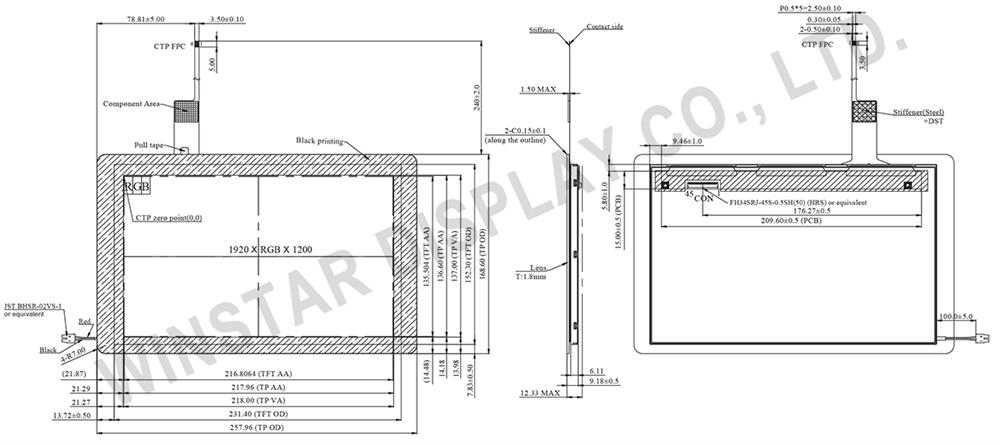

DRAWING

10.1 inch LVDS IPS 1920x1200 PCAP Touchscreen TFT Display - WF101NTYA4LNG0



SPECIFICATIONS

Interface

TFT LCD MODULE

Pin No.SymbolDescription
1-5 NC No connection
6 GND Ground
7 ELV3P EVEN LVDS Positive data signal (+)
8 ELV3N EVEN LVDS Negative data signal (-)
9 GND Ground
10 ELV2P EVEN LVDS Positive data signal (+)
11 ELV2N EVEN LVDS Negative data signal (-)
12 GND Ground
13 ELVCLKP EVEN LVDS Positive CLK signal (+)
14 ELVCLKN EVEN LVDS Negative CLK signal (-)
15 GND Ground
16 ELV1P EVEN LVDS Positive data signal (+)
17 ELV1N EVEN LVDS Negative data signal (-)
18 GND Ground
19 ELV0P EVEN LVDS Positive data signal (+)
20 ELV0N EVEN LVDS Negative data signal (-)
21 GND Ground
22 OLV3P Odd LVDS Positive data signal (+)
23 OLV3N Odd LVDS Negative data signal (-)
24 GND Ground
25 OLV2P Odd LVDS Positive data signal (+)
26 OLV2N Odd LVDS Negative data signal (-)
27 GND Ground
28 OLVCLKP Odd LVDS Positive CLK signal (+)
29 OLVCLKN Odd LVDS Negative CLK signal (-)
30 GND Ground
31 OLV1P Odd LVDS Positive data signal (+)
32 OLV1N Odd LVDS Negative data signal (-)
33 GND Ground
34 OLV0P Odd LVDS Positive data signal (+)
35 OLV0N Odd LVDS Negative data signal (-)
36 GND Ground
37-39 NC No connection (PIN39 and PIN40 cannot be short-circuited together)
40 NC No connection alone
41-45 VDDIN Power supply VDDIN=3.3V (Typ.)


Backlight PIN Definition

PinSymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Power supply


PCAP PIN Definition

PinSymbolFunction
1 SDA I2C data input and output
2 SCL I2C clock input
3 RST External Reset, Low is active
4 INT External interrupt to the host
5 VDDT Power Supply : +3.3V
6 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 10.1 inch
Dot Matrix 1920(H) X RGB X 1200(V) dots
Module dimension 257.96 x 168.6 x 12.33 Max mm
Active area(AA) 216.8064(H) x 135.504(V) mm
Pixel pitch 0.11292(H) x 0.11292(V) mm
LCD type TFT, Normally Black, Transmissive
Interface 2ch-LVDS
Driver IC FL5893DA or Equivalent
Viewing Angle 80/80/80/80
Aspect Ratio 16:10
PCAP IC GT928 or Equivalent
PCAP Interface I2C
PCAP FW Version 81
PCAP Resolution 1920 * 1200
Backlight Type LED,Normally White
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Power Supply Voltage VDDIN 3.0 3.3 3.6 V
VRP - - 300 mV
Power Supply Current IDD - 300 360 mA
Power Consumption PLCD - 1 1.2 W
Rush current IRUSH - - 3.0 A
Supply PCAP VDDT 3.1 3.3 3.5 V
IVDDT - 73 110 mA
SKU: WF101-19201200NL#0P3-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€151.40
€148.90
€123.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€151.40 excl tax

DESCRIPTION

WF101-19201200NL#0P3-FC is a WUXGA 10.1 inch TFT LCD and touchscreen features. With the projected capacitive touch panel, the module allows for intuitive and responsive touch interactions, simultaneously detecting up to 10 fingers. Plus, it is equipped with IPS technology, offering a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical).

This TFT LCD has a high resolution of 1920x1200 dots and a 400 cd/m2 brightness to ensure image clarity and detail for various display applications. The driver IC of the module is FL5893DA, with a 2-ch LVDS interface support. The power supply voltage (VCC) for this TFT-LCD HD is from 3.0V to 3.6V, and the typical value is 3.3V.



DRAWING

10.1 inch LVDS IPS 1920x1200 PCAP Touchscreen TFT Display - WF101NTYA4LNG0



SPECIFICATIONS

Interface

TFT LCD MODULE

Pin No.SymbolDescription
1-5 NC No connection
6 GND Ground
7 ELV3P EVEN LVDS Positive data signal (+)
8 ELV3N EVEN LVDS Negative data signal (-)
9 GND Ground
10 ELV2P EVEN LVDS Positive data signal (+)
11 ELV2N EVEN LVDS Negative data signal (-)
12 GND Ground
13 ELVCLKP EVEN LVDS Positive CLK signal (+)
14 ELVCLKN EVEN LVDS Negative CLK signal (-)
15 GND Ground
16 ELV1P EVEN LVDS Positive data signal (+)
17 ELV1N EVEN LVDS Negative data signal (-)
18 GND Ground
19 ELV0P EVEN LVDS Positive data signal (+)
20 ELV0N EVEN LVDS Negative data signal (-)
21 GND Ground
22 OLV3P Odd LVDS Positive data signal (+)
23 OLV3N Odd LVDS Negative data signal (-)
24 GND Ground
25 OLV2P Odd LVDS Positive data signal (+)
26 OLV2N Odd LVDS Negative data signal (-)
27 GND Ground
28 OLVCLKP Odd LVDS Positive CLK signal (+)
29 OLVCLKN Odd LVDS Negative CLK signal (-)
30 GND Ground
31 OLV1P Odd LVDS Positive data signal (+)
32 OLV1N Odd LVDS Negative data signal (-)
33 GND Ground
34 OLV0P Odd LVDS Positive data signal (+)
35 OLV0N Odd LVDS Negative data signal (-)
36 GND Ground
37-39 NC No connection (PIN39 and PIN40 cannot be short-circuited together)
40 NC No connection alone
41-45 VDDIN Power supply VDDIN=3.3V (Typ.)


Backlight PIN Definition

PinSymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Power supply


PCAP PIN Definition

PinSymbolFunction
1 SDA I2C data input and output
2 SCL I2C clock input
3 RST External Reset, Low is active
4 INT External interrupt to the host
5 VDDT Power Supply : +3.3V
6 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 10.1 inch
Dot Matrix 1920(H) X RGB X 1200(V) dots
Module dimension 257.96 x 168.6 x 12.33 Max mm
Active area(AA) 216.8064(H) x 135.504(V) mm
Pixel pitch 0.11292(H) x 0.11292(V) mm
LCD type TFT, Normally Black, Transmissive
Interface 2ch-LVDS
Driver IC FL5893DA or Equivalent
Viewing Angle 80/80/80/80
Aspect Ratio 16:10
PCAP IC GT928 or Equivalent
PCAP Interface I2C
PCAP FW Version 81
PCAP Resolution 1920 * 1200
Backlight Type LED,Normally White
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Power Supply Voltage VDDIN 3.0 3.3 3.6 V
VRP - - 300 mV
Power Supply Current IDD - 300 360 mA
Power Consumption PLCD - 1 1.2 W
Rush current IRUSH - - 3.0 A
Supply PCAP VDDT 3.1 3.3 3.5 V
IVDDT - 73 110 mA
Products specifications
Brand Winstar
Size 10.1"
Resolution 1920x1200
Active Area (mm) 216.81x135.50
Color Full Color
Display Interface LVDS
Display IC FL5893DA
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 45
Pin Pitch 0.5mm
Touch Panel IC Controller GT928
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1920x1200
Active Area (mm) 216.81x135.50
Color Full Color
Display Interface LVDS
Display IC FL5893DA
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 45
Pin Pitch 0.5mm
Touch Panel IC Controller GT928
Preferred - Not Preferred Preferred
