WF101-1280800KM#0P8-FC

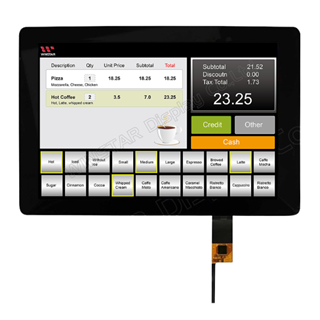

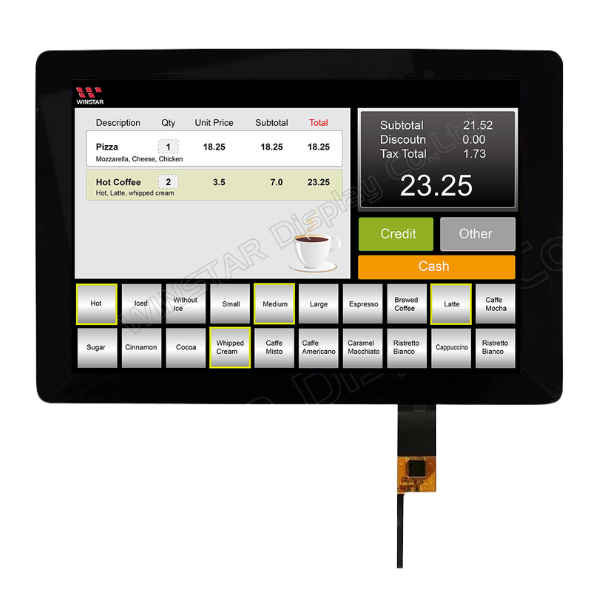

TFT 10.1" 1280x800 LCD Panel, Interface MIPI, 350cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC)

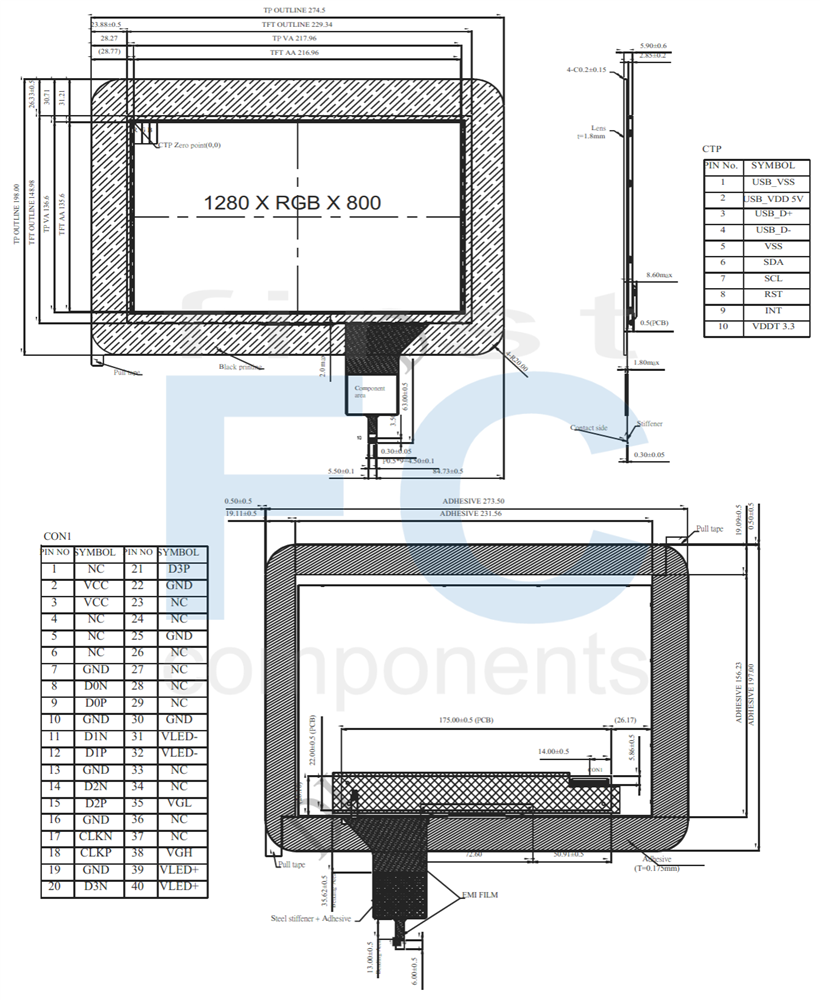

DRAWING

SPECIFICATIONS

Interface

Pin No.SymbolI/OFunction
1 NC - No connection
2 VCC P Power Supply
3 VCC P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 D0N I MIPI data Input
9 D0P I
10 GND P Ground
11 D1N I MIPI data Input
12 D1P I
13 GND P Ground
14 D2N I MIPI data Input
15 D2P I
16 GND P Ground
17 CLKN I Mipi data Input
18 CLKP I
19 GND P Ground
20 D3N I MIPI data Input
21 D3P I
22 GND P Ground
23 NC - No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 NC - No connection
30 GND P Ground
31 VLED- P LED Cathode
32 VLED- P LED Cathode
33 NC - No connection
34 NC - No connection
35 VGL P Connect to stabilizing capacitor between VSSA and VGL.
36 NC - No connection
37 NC - No connection
38 VGH P Connect to stabilizing capacitor between VSSA and VGH.
39 VLED+ P LED Anode
40 VLED+ P LED Anode



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 274.5 × 198.0 × 5.90 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black, Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
TFT Drive IC EK79202D or Equivalent
Backlight Type LED, Normally White
Aspect Ratio 16:10
TFT Interface 4-Lanes MIPI
CTP FW Version V 6.0.0.0.10. 1.60. 1
CTP IC ILI2511 or equivalent
CTP Interface USB (12C available)
CTP Resolution 16384*9600
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Condition

Item

Symbol

ValuesUnit
Min.Typ.MAX.
Power voltage VCC 3.0 3.3 3.5 V
VGH  17.5 18 18.5  V
VGL -11.5 -10.5 -10.0  V
VSP - 5.5  - V
VSN - -5.5  - V
Supply Voltage For Touch Logic USB_VDD 5V 4.4 5.0 5.5 V
SKU: WF101-1280800KM#0P8-FC
Brand: Winstar
Available: No
