WF101-1024600JD#0SP8-FC

TFT 10.1" 1024x600 LCD Panel, Interface RGB, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC)

DESCRIPTION

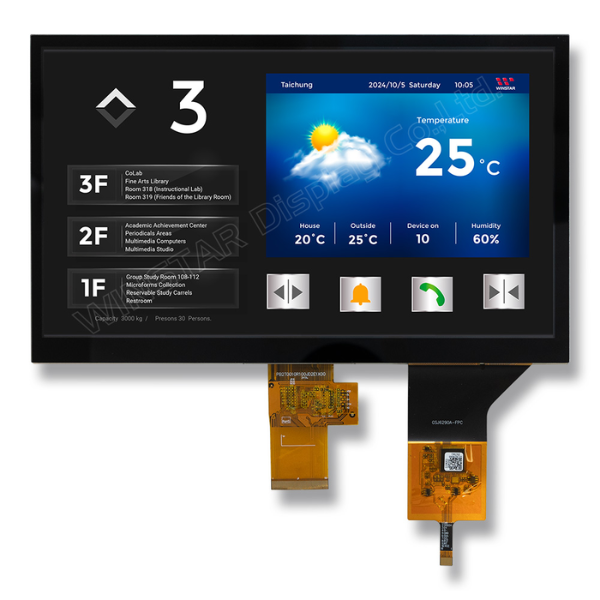

The 10.1-inch 1024x600 High Brightness IPS TFT LCD Module (Model: WF101-1024600JD#0SP8-FC) is equipped with a Projected Capacitive Touch Panel (PCAP) and is designed for various industrial applications. This module combines excellent performance and reliability, providing clear and vibrant display effects in a range of environments. The model features built-in EK79001HN-S and EK73215BCGA TFT driver ICs, supports a 24-bit RGB interface, and utilizes an ILI2511 driver IC for the PCAP, supporting USB interface (I2C available) and 5-point touch functionality.

The module's display has a diagonal size of 10.1 inches with a resolution of 1024x600 pixels, ensuring that every detail is clearly presented. Its overall dimensions are 235 × 143 × 8.78 mm, making it convenient for installation in various devices. The active display area measures 222.72 × 125.28 mm, delivering excellent display quality for users to fully appreciate the detail of the screen.

This TFT LCD display module utilizes IPS panel technology, featuring wide viewing angles of up to 85 degrees, ensuring that colors remain true and consistent from any angle. Brightness can reach 900 cd/m² with a contrast ratio of 800:1, allowing for good readability even in bright environments, making it particularly suitable for touch-enabled entrance devices, elevator displays, smart home applications, medical equipment, and more.

Additionally, the operating temperature range of this display module is -20℃ to +70℃, with a storage temperature range of -30℃ to +80℃, making it suitable for stable operation under various conditions. The power supply requirement is a digital voltage of 3.0~3.6V, ensuring a balance between energy efficiency and performance. This model series also offers non-touch options, making it ideal for applications requiring basic display functionality.

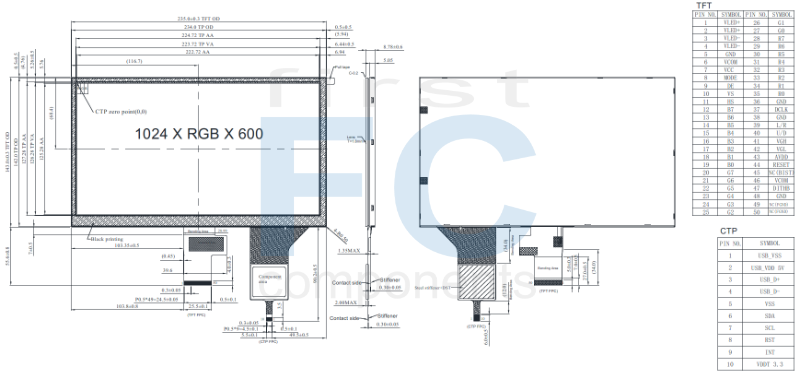

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	10.1	inch
Dot Matrix	1024 × RGB × 600	dots
Module dimension	235(W) × 143(H) × 8.78(D)	mm
Active area	222.72 (H) × 125.28(V)	mm
Pixel pitch	0.2175(W) × 0.2088(H)	mm
LCD type	TFT, Normally Black, Transmissive
Interface	24 bit RGB
Driver IC	EK79001HN-S+EK73215BCGA or equivalent
Viewing Angle	85/85/85/85 (IPS)
Aspect Ratio	16:9
Backlight Type	LED, Normally White
PCAP IC	ILI2511 or equivalent
PCAP Interface	USB (I2C available)
PCAP FW Version:	V6.0.0.0.62.90.1.2
PCAP Resolution	16384*16384
Touch Panel	Projected Capacitive Touch Panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Conditions (At Ta = 25 °C,)

Item	Symbol	Min	Typ	Max	Unit
Digital Power Supply Voltage For LCD	VDD	3	3.3	3.6	V
Analog Power Supply Voltage	AVDD	9.89	10.2	10.5	V
Gate On Power Supply Voltage	VGH	19.4	20.0	20.6	V
Gate Off Power Supply Voltage	VGL	-10.3	-10.0	-9.7	V
Common Power Supply Voltage	VCOM	4.0	4.3	4.6	V
Input logic high voltage	VIH	0.7 Vcc	-	Vcc	V
Input logic low voltage	VIL	0	-	0.3 Vcc	V
Supply PCAP	VDDT	3.0	3.3	3.6	V
	IVDDT	-	90.5	115	V
	USB_VDD 5V	4.4	5.0	5.5	V
	I VDD 5V	-	97.8	120	mA

Interface

TFT LCD Module

Pin No.	Symbol	Function
1	VLED+	LED Anode
2	VLED+	LED Anode
3	VLED-	LED Cathode
4	VLED-	LED Cathode
5	GND	Ground
6	VCOM	Common voltage
7	VCC	Power for Digital Circuit
8	MODE	DE/SYNC mode select
9	DE	Data Input Enable (DEN)
10	VS	Vertical Sync Input (VSD)
11	HS	Horizontal Sync Input (HSD)
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data(LSB)
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data(LSB)
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Sample clock (CLK)
38	GND	Power Ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin.
45	NC(BIST)	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC(FGND)	No connection
50	NC(FGND)	No connection

PCAP PIN Definition

Pin	Symbol	Function
1	USB_VSS	System ground
2	USB_VDD 5V	Power supply
3	USB_D+	Data +
4	USB_D-	Data -
5	VSS	System ground
6	SDA	I2C data input and output
7	SCL	I2C clock input
8	RST	External Reset, Low is active
9	INT	External interrupt to the host
10	VDDT 3.3	Power supply

SKU: WF101-1024600JD#0SP8-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Price Breaks

Quantity

10+

Price

€98.60

€93.80

€79.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
