WF096-80160FD#0P0-FC

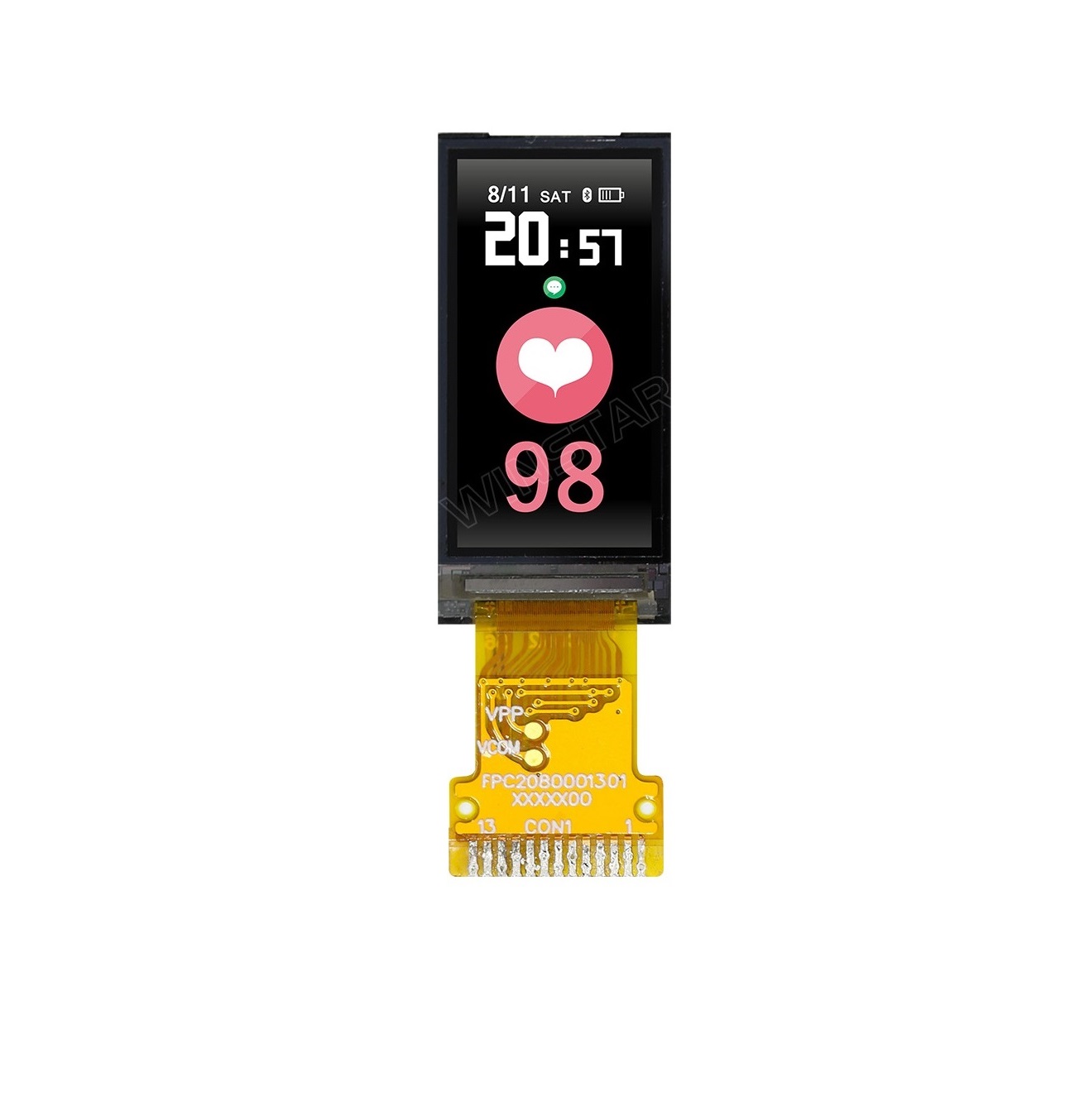

Picture of WF096-80160FD#0P0-FC Picture of WF096-80160FD#0P0-FC
TFT 0.96" 80x160 Portrait LCD Panel, Interface MCU (SPI) IC ST7735S, 500cd/m², No touch

DESCRIPTION



0.96 inch IPS Mini TFT LCD display module, resolution 80 x 160 pixels. This 0.96" TFT module is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 3.0V to 3.6V, with brightness 500 nits (typical value), contrast ratio 800.

This 0.96 inch Mini TFT LCD Display is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having 2:1 aspect ratio. It is ideal for wearable devices, medical devices, etc. Operating temperatures from -20℃ to 70℃; storage temperatures range from -30℃ to 80℃.

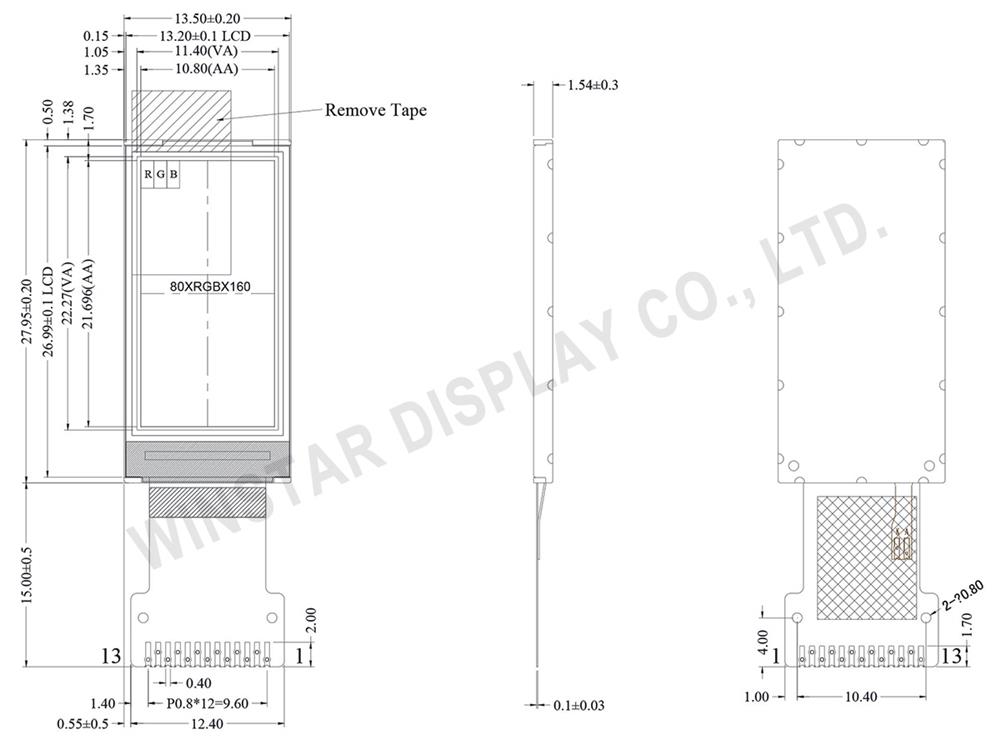

DRAWING





SPECIFICATIONS



Interface

LCM PIN Definition
PinSymbolFunction
1 SPI4W SPI4W='0' , 3-wire SPI.
SPI4W='1' , 4-wire SPI.
2 NC No connection
3 SDA Serial interface data
4 SCL Serial interface clock
5 RS Data/command selection pin (4-wire SPI use)
6 RES Reset pin (low active)
7 CS Chip selection pin (low active)
8 GND Ground
9 NC No connection
10 VCC Power supply
11 LEDK Back light cathode
12 LEDA Back light anode
13 GND Ground



General Specifications

ItemDimensionUnit
Size 0.96 inch
Dot Matrix 80 × RGB × 160(TFT) dots
Module dimension 13.5(W) × 27.95(H) × 1.54(D) mm
Active area 10.8 × 21.696 mm
Dot pitch 0.135 × 0.1356 mm
LCD type TFT, Normally black, Transmissive
Viewing Angle 80/80/80/80  (IPS)
Aspect Ratio 1:2
IC ST7735S
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions
ItemSymbolMinTypMaxUnit
Supply Voltage VCC 3.0 3.3 3.6 V
Supply LCM current ICC － － 2 mA

LED driving conditions
ParameterSymbolMin.Typ.Max.Unit
LED current ILED － 20 － mA
LED voltage VLED 2.8 3.1 3.2 V
LED Life Time   － 50000 － Hr
SKU: WF096-80160FD#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€7.10
€5.20
€4.60
€4.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€7.10 excl tax

DESCRIPTION



0.96 inch IPS Mini TFT LCD display module, resolution 80 x 160 pixels. This 0.96" TFT module is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 3.0V to 3.6V, with brightness 500 nits (typical value), contrast ratio 800.

This 0.96 inch Mini TFT LCD Display is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having 2:1 aspect ratio. It is ideal for wearable devices, medical devices, etc. Operating temperatures from -20℃ to 70℃; storage temperatures range from -30℃ to 80℃.



DRAWING





SPECIFICATIONS



Interface

LCM PIN Definition
PinSymbolFunction
1 SPI4W SPI4W='0' , 3-wire SPI.
SPI4W='1' , 4-wire SPI.
2 NC No connection
3 SDA Serial interface data
4 SCL Serial interface clock
5 RS Data/command selection pin (4-wire SPI use)
6 RES Reset pin (low active)
7 CS Chip selection pin (low active)
8 GND Ground
9 NC No connection
10 VCC Power supply
11 LEDK Back light cathode
12 LEDA Back light anode
13 GND Ground



General Specifications

ItemDimensionUnit
Size 0.96 inch
Dot Matrix 80 × RGB × 160(TFT) dots
Module dimension 13.5(W) × 27.95(H) × 1.54(D) mm
Active area 10.8 × 21.696 mm
Dot pitch 0.135 × 0.1356 mm
LCD type TFT, Normally black, Transmissive
Viewing Angle 80/80/80/80  (IPS)
Aspect Ratio 1:2
IC ST7735S
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions
ItemSymbolMinTypMaxUnit
Supply Voltage VCC 3.0 3.3 3.6 V
Supply LCM current ICC － － 2 mA

LED driving conditions
ParameterSymbolMin.Typ.Max.Unit
LED current ILED － 20 － mA
LED voltage VLED 2.8 3.1 3.2 V
LED Life Time   － 50000 － Hr
Date Notice Link/Description
2024/07/24 PCN

Backlight Change for Winstar's TFT Family WF096-80160FD



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 0.96"
Resolution 80x160
Active Area (mm) 10.80x21.69
Color Full Color
Display Interface MCU (SPI)
Display IC ST7735S
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 13
Pin Pitch 0.8mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 0.96"
Resolution 80x160
Active Area (mm) 10.80x21.69
Color Full Color
Display Interface MCU (SPI)
Display IC ST7735S
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 13
Pin Pitch 0.8mm
Preferred - Not Preferred Preferred
