WF0299-268800AM#0P54-FC

TFT 2.99" 268x800, Bar Type, Interface MIPI IC GC9503, 530cd/m², Wide View Angle (IPS), On-Cell Capacitive touch panel I2C interface (IC CST328)

DESCRIPTION

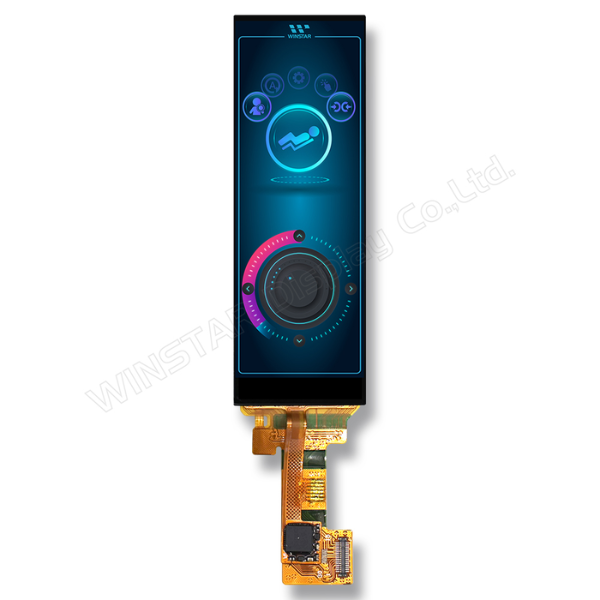

WF0299-268800AM#0P54-FC is a portrait mode 2.99-inch stretched bar type TFT LCD with a resolution of 268x800 pixels and an On-Cell touch panel (capacitive touch). On-Cell technology involves embedding the touch sensor into the LCD module, either on the color filter substrate or between the polarizers. One of the main advantages of On-Cell touch technology is the reduced thickness, as the touch layer is directly integrated into the display panel, eliminating the need for an additional touch layer and thereby reducing the overall thickness of the display.

The module comes with an On-Cell capacitive touch screen with a CST328 driver IC, supporting I2C interface and 2-point touch functionality. This integration enhances the user experience by enabling precise and responsive touch input, while the I2C interface facilitates easy communication with the device's control system.

This On-Cell touch TFT display uses IPS technology, providing wider viewing angles of 80 degrees to the left, right, up, and down. It has a typical brightness of 530 nits and a contrast ratio of 1200:1. The TFT module integrates the GC9503 driver IC, which supports the MIPI DSI serial interface (2 lanes). The MIPI DSI interface offers advantages such as low power consumption, high transmission rates, support for multiple data-encoding formats, and reduced noise and interference.

The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.

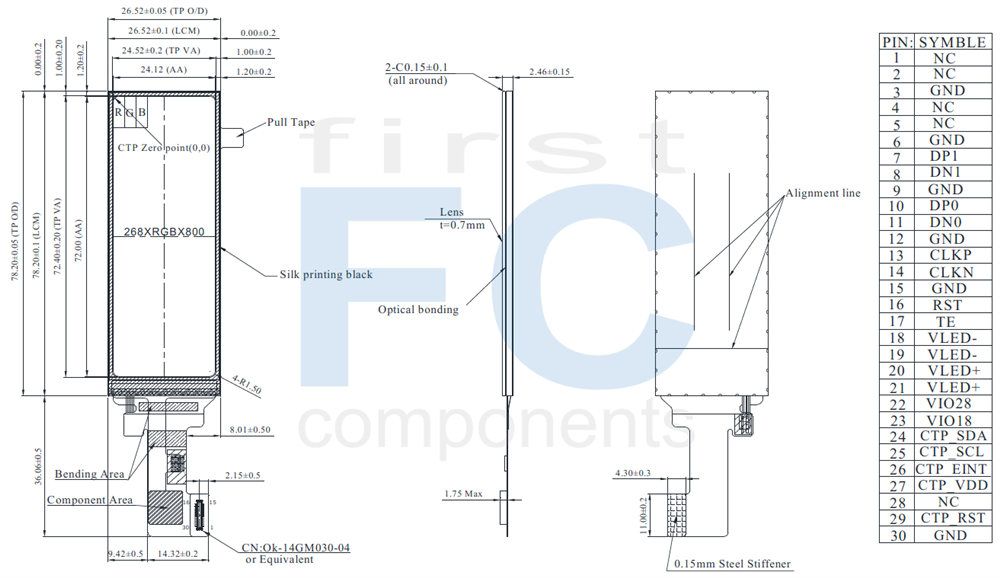

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolDescription
1 NC No connection
2 NC No connection
3 GND Power ground
4 NC No connection
5 NC No connection
6 GND Power ground
7 DP1 MIPI-DSI data lane 1 posivtve input pin
8 DN1 MIPI-DSI data lane 1 negtive input pin
9 GND Power ground
10 DP0 MIPI-DSI data lane 0 posivtve input pin
11 DN0 MIPI-DSI data lane 0 negtive input pin
12 GND Power ground
13 CLKP MIPI-DSI data lane posivtve input pin
14 CLKN MIPI-DSI data lane negtive input pin
15 GND Power ground
16 RST Reset signal(low active)
17 TE Serves TE (Tearing Effect ) pin on MPU interface
18 VLED- LED backlight cathode
19 VLED- LED backlight cathode
20 VLED+ LED backlight anode
21 VLED+ LED backlight anode
22 VI028 Analog power supply
23 VI018 Power supply for the logic power and I/O circuit
24 CTP_SDA TP-SDA
25 CTP_SCL TP-SCL
26 CTP_EINT TP-EINT
27 CTP_VDD TP-VCC
28 NC No connection
29 CTP_RST TP-RESET
30 GND Power ground



General Specifications

ItemDimensionUnit
Size 2.99” inch
Dot Matrix 268 x RGB x 800(TFT) dots
Module dimension 26.52 (W) x 78.2 (H) x 2.46 (D) mm
Active area 24.12 x 72.0 mm
Pixel Pitch 0.09 x 0.09 mm
LCD type TFT, Normally Black, Transmissive
TFT Interface 2-Lanes MIPI
TFT Driver IC GC9503
Viewing angle 80/80/80/80
PCAP Driver IC CST328
PCAP Interface I2C
PCAP FW Version 1.0.3
PCAP Resolution 268*820
Backlight Type LED, Normally White
Touch Panel With PCAP
Surface Glare



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Power Supply voltage 1 VI028~GND -0.3 +4.6 V
Power Supply voltage 2 VI018~GND -0.3 +4.6 V
Logic Input Voltage Range VIN -0.3 VI018+0.5 V
Logic Output Voltage Range VO -0.3 VI018+0.5 V



Electronical Characteristics

ItemSymbolMinTypMaxUnit
Supply voltage for analog circuit VI028 2.6 2.8 3.6 V
Working current for VI028 43.0 65.0 mA
Supply voltage for logic circuit VI018 1.65 1.8 3.3 V
Input voltage 'H' level VIH 0.7*VI018 VI018 V
Input voltage 'L' level VIL GND 0.3*VI018 V
Output voltage 'H' level VOH 0.8*VI018 VI018 V
Output voltage 'L' level VOL GND 0.2*VI018 V
Supply CTP CTP_VDD 2.65 2.8 3.3 V
CTP_IDD 7.0 11.0 mA
SKU: WF0299-268800AM#0P54-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€18.00
€13.20
€11.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€18.00 excl tax
