    PMOLED 3.12" Graphic 256x64, Yellow color, COF, 3V, Interface 6800,8080,SPI, Anti-glare
    Manufacturer: Winstar
    SKU: WEX25664L#B01-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €31.50
    €28.40
    €26.70

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €31.50 excl tax
    i h

    DESCRIPTION

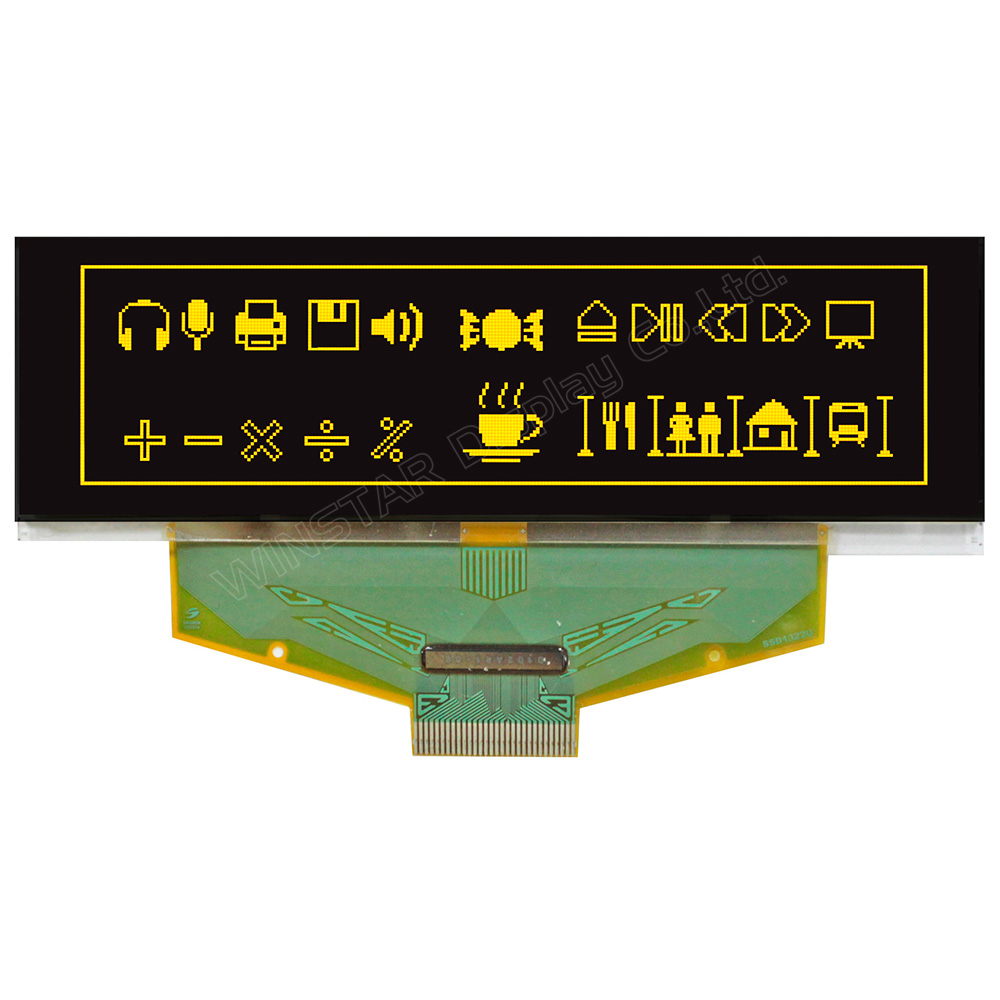

    Winstar COF 3.12 inch of standard OLED graphic display. This 256x64 OLED display is built-in SSD1322 driver IC which the outline dimension of  88 x 27.8 mm, AA size 76.778 x 19.178 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.

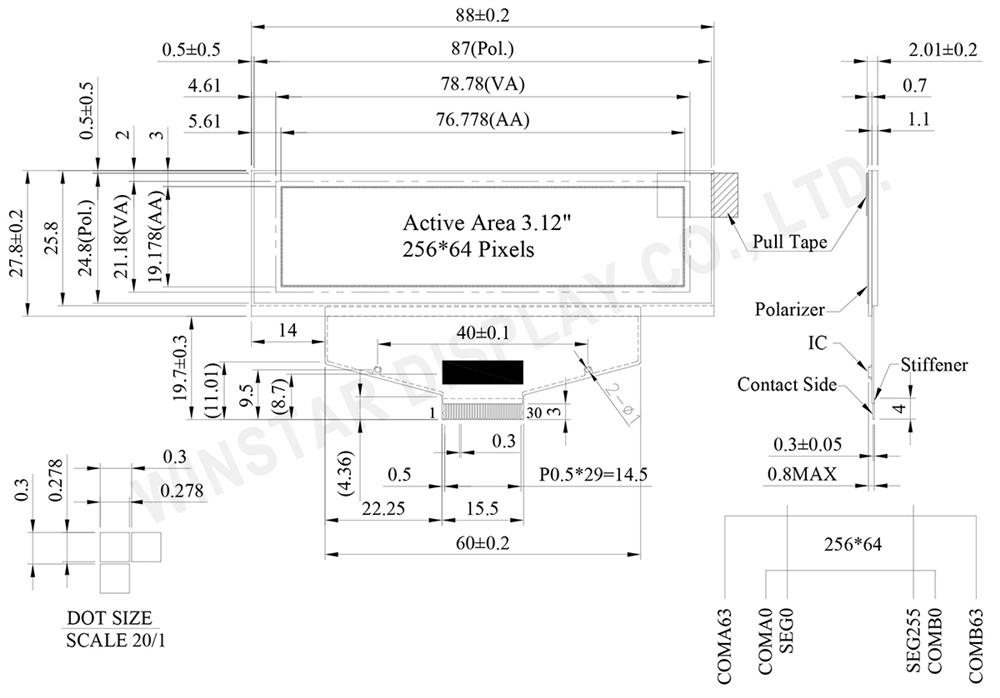

    DRAWING

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 NC No Connection
    2 VSS Ground Pin
    3 VCC Panel driving voltage
    4 VCOMH COM deselected level
    5 VLSS Analog system ground pin
    6~13 D7~D0 Data Bus
    14 E/RD# Chip Enable Signal
    15 R/W# Read/Write Control
    16~17 BS0~BS1 Interface selection
    18 D/C# Data/Command Control Pin
    19 CS# Chip Select Pin
    20 RES# Reset Signal Pin
    21 FR Not Connected
    22 IREF SEG output current refer pin
    23 NC No Connection
    24 VDDIO Voltage for interface logic
    25 VDD Voltage for logic
    26 VCI Low voltage power supply
    27 VSL SEG voltage refer Pin
    28 VLSS Analog system ground pin
    29 VCC Panel driving voltage
    30 NC No Connection



    Mechanical Data

    ItemDimensionUnit
    Module dimension 88.0 × 27.8 mm
    View area 78.78 × 21.18 mm
    Active area 76.778 × 19.178  mm
    Dot pitch 0.278 × 0.278 mm
    Dot size 0.30 × 0.30  mm



    Electronical Characteristics

    ItemSymbolConditionStandard ValueUnit
    MinTypMax
    Supply Voltage VDD --- 2.8 3.0 3.3 V

    Products specifications
    Size 3.12"
    Resolution 256x64
    Active Area (mm) 76.77x19.17
    Dot Size 0.27x0.27
    Polarizer Anti-glare
    Color Yellow
    Power supply 3V
    Display Interface 6800/8080/SPI
    Display IC SSD1322UR1
    Constructive Structure COF
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 30
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
