WEH1601L#BP5N00300-FC

PMOLED 2.25" 16x1, Yellow color, COB, 5V, Interface SPI, WS0010-TX IC, Frame, Glare

DESCRIPTION

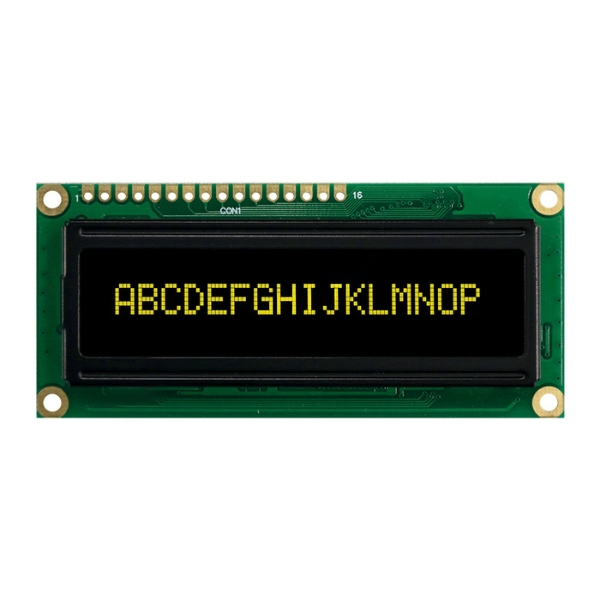

WEH1601L#BP5N00300-FC is a COB 16 Character x 1 line OLED display module which diagonal panel size is 2.25 inch. WEH1601L#BP5N00300-FC is built in with WS0010-TX IC, which offers 4 font sets on one device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian). Its interface is SPI, 1/8 driving duty.

The supply voltage for logic of WEH1601L#BP5N00300-FC is 5V (typical value), display with 50% check board current is 30mA@5VDD (typical value). This OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

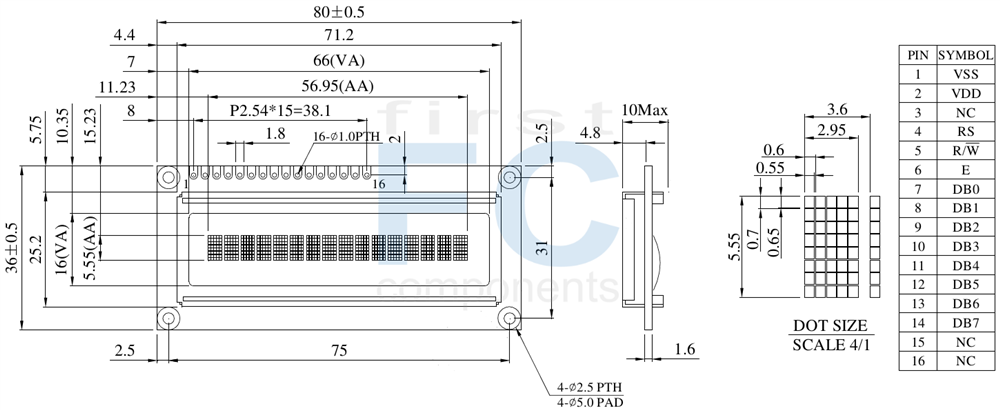

DRAWING

WEH001601A - 16x1 OLED Character Display

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	NC	－
16	NC	－

Mechanical Data

Item	Dimension	Unit
Number of Characters	16 characters x 1 Lines	－
Module dimension	80.0 x 36.0 x 10.0(MAX)	mm
View area	66.0 x 16.0	mm
Active area	56.95 x 5.55	mm
Dot size	0.55 x 0.65	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.95 x 5.55	mm
Character pitch	3.6 x 5.55	mm
Panel type	OLED , Monochrome
Duty	1/8 Duty
IC	WS0010-TX
Interface	SPI
Size	2.25 inch

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8xVDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2xVDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8xVDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2xVDD	V
50% Check Board Operating Current	IDD	VDD=5V	－	30	60	mA

SKU: WEH1601L#BP5N00300-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€19.00

€14.00

€13.50

€13.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€19.00 excl tax
