WEH0802W#AP3N00100-FC

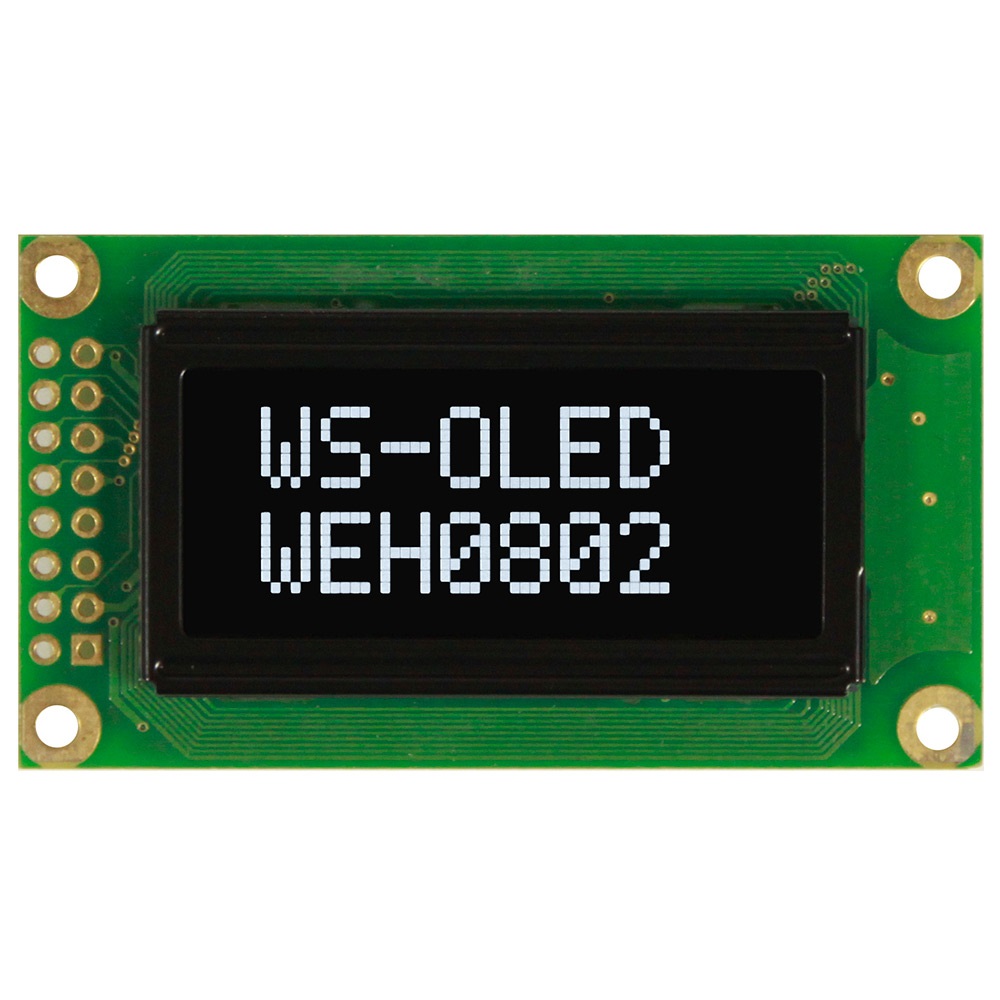

PMOLED 1.2" 8x2, White color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame, Glare

DESCRIPTION

8x2 OLED which has the same outline size, VA size and pin out as Winstar STN LCD item no. WH0802A. This OLED is Winstar 8x2 type (8 Characters x 2 lines). There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

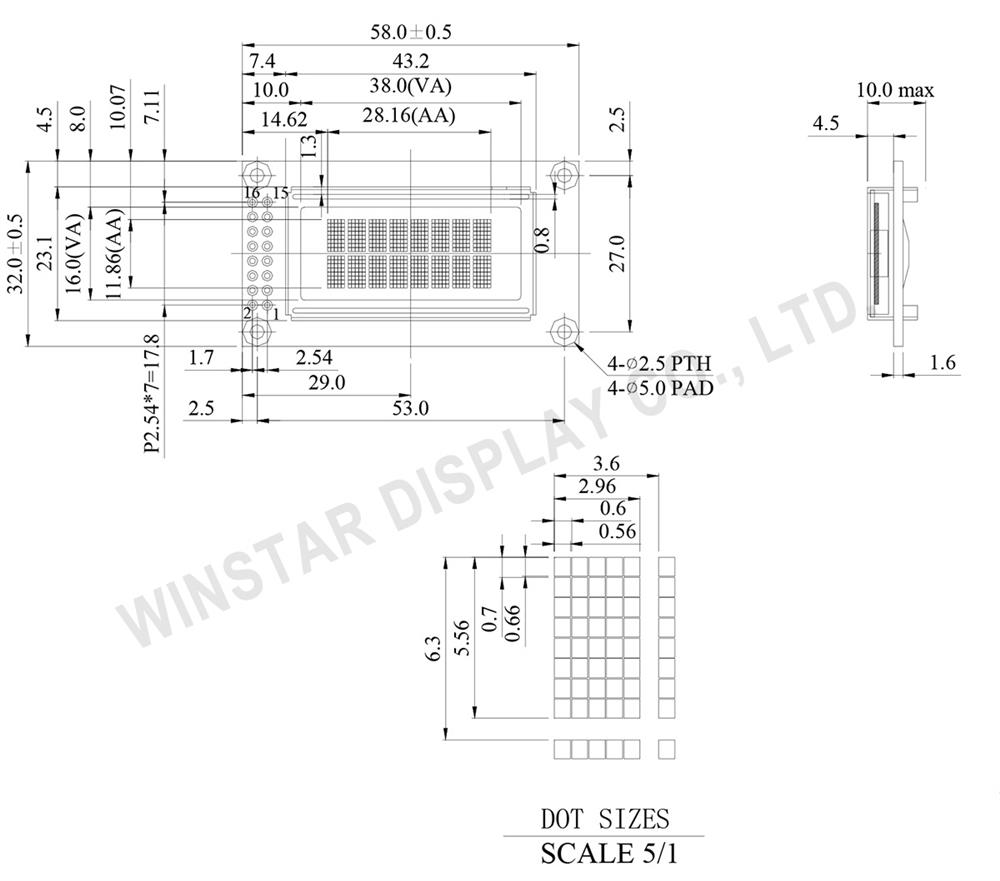

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	58.0 × 32.0	mm
View area	38.0 × 16.0	mm
Active area	28.16 × 11.86	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.56 × 0.66	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEH0802W#AP3N00100-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€13.90

€10.20

€9.90

€9.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€13.90 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	58.0 × 32.0	mm
View area	38.0 × 16.0	mm
Active area	28.16 × 11.86	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.56 × 0.66	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	1.2"
Resolution	8x2
Active Area (mm)	28.16x11.86
Dot Size	0.56x0.66
Polarizer	Glare
Color	White
Power supply	3.3V
Display Interface	6800 (option 8080/SPI)
Display IC	WS0010-TX
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
