WEA25664L#A01-FC

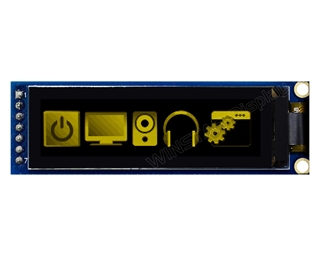

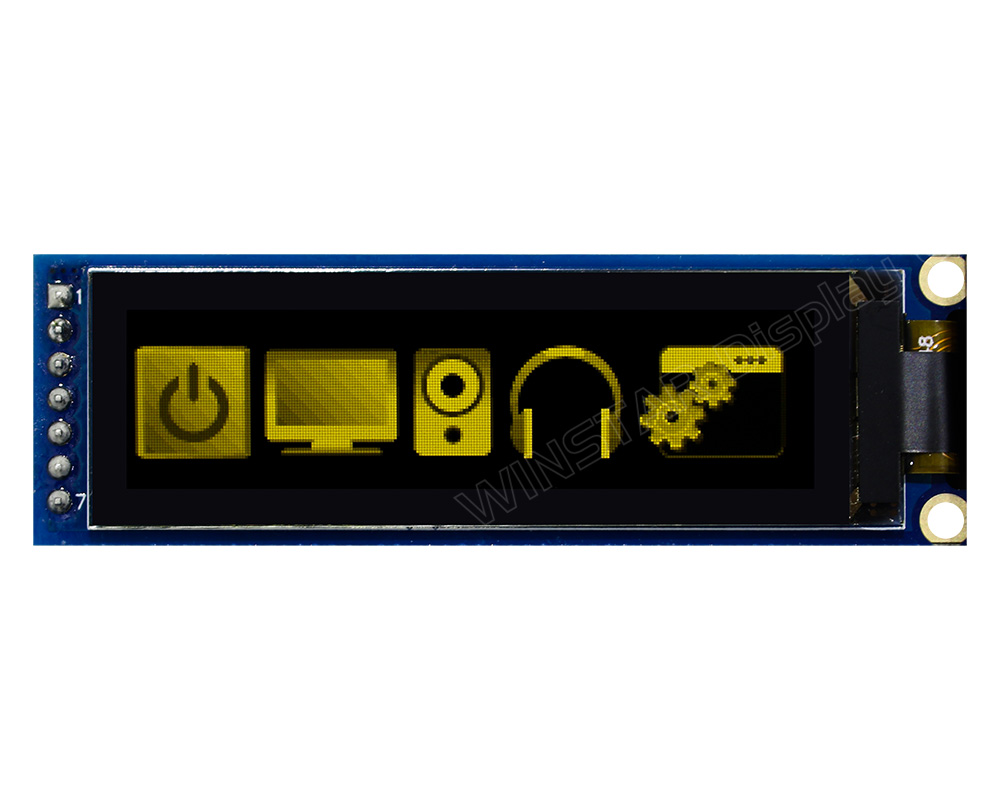

PMOLED 2.08" Graphic 256x64, Yellow, COG + Small PCB, 3~5V, Interface SPI, Anti-glare

DESCRIPTION

Graphic COG with PCB OLED display model, which is made of 256x64 pixels, diagonal size 2.08 inch. It is built in with SSD1362 driver IC; it supports 4-Wire SPI interface, 4 bits grayscale image, 1/64 duty cycle. It has PCB outline size 70.0 x 22.0 mm with mounting holes on board and 7x1 metal pins on module.

It is supported by 3V ~5V, within DC-DC conversion circuit, display with 50% check board current is 90mA@3Vdd (typical value), 1/64 duty cycle. Operating temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

DRAWING

OLED Graphic COG+PCB, 256x64, 2.08 - WEA025664A - Winstar Display

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	Reserved pin. It should be connected to ground.
2	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source.
3	D0	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SID.
4	D1
5	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
6	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[1:0] will be interpreted as data. When the pin is pulled LOW, the data at D[1:0] will be transferred to a command register.
7	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

Mechanical Data

Item	Dimension	Unit
Dot Matrix	256 x 64 Dots	－
Module dimension	70.0 x 22.0 x 1.71	mm
Active Area	51.18 x 12.78	mm
Pixel Size	0.18 x 0.18	mm
Pixel Pitch	0.2 x 0.2	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
Gray Scale	4 Bits
IC	SSD1362
Interface	SPI
Size	2.08 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	VCC	1.65	5.5	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCC	－	2.8	3.3	5.2	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	0	－	0.2×VCC	V
Output High Volt.	VOH	－	0.9×VCC	－	VCC	V
Output Low Volt.	VOL	－	0	－	0.1×VCC	V
50% Check Board operating Current	ICC	VCC=3.3V	－	90	135	mA

SKU: WEA25664L#A01-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€16.80

€12.30

€11.90

€11.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	Reserved pin. It should be connected to ground.
2	VCC	Power supply for panel driving voltage. This is also the most positive power voltage supply pin. It is supplied by external high voltage source.
3	D0	These pins are bi-directional data bus connecting to the MCU data bus. Unused pins are recommended to tie LOW. When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SID.
4	D1
5	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
6	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D[1:0] will be interpreted as data. When the pin is pulled LOW, the data at D[1:0] will be transferred to a command register.
7	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

Mechanical Data

Item	Dimension	Unit
Dot Matrix	256 x 64 Dots	－
Module dimension	70.0 x 22.0 x 1.71	mm
Active Area	51.18 x 12.78	mm
Pixel Size	0.18 x 0.18	mm
Pixel Pitch	0.2 x 0.2	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
Gray Scale	4 Bits
IC	SSD1362
Interface	SPI
Size	2.08 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	VCC	1.65	5.5	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCC	－	2.8	3.3	5.2	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	0	－	0.2×VCC	V
Output High Volt.	VOH	－	0.9×VCC	－	VCC	V
Output Low Volt.	VOL	－	0	－	0.1×VCC	V
50% Check Board operating Current	ICC	VCC=3.3V	－	90	135	mA

Products specifications

Brand	Winstar
Size	2.08"
Resolution	256x64
Active Area (mm)	51.18x12.78
Dot Size	0.18x0.18
Polarizer	Anti-glare
Color	Yellow
Power supply	3~5V
Display Interface	SPI
Display IC	SSD1362
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Pin Strip
Pin Nr.	7
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
