WEA16080W#AP3N00000-FC

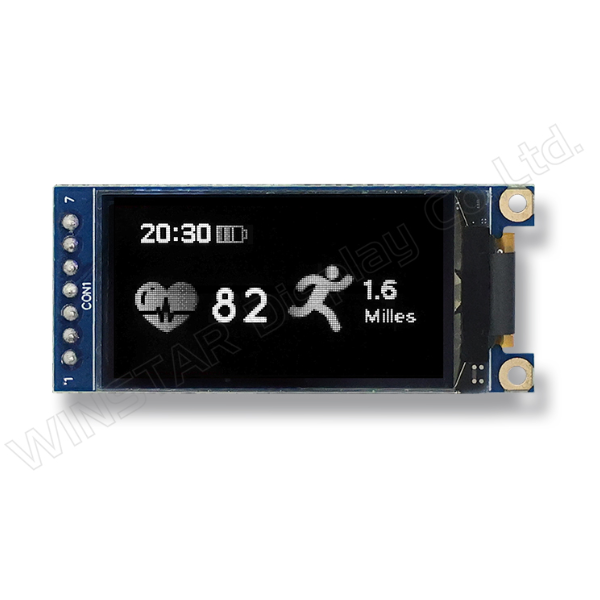

Picture of WEA16080W#AP3N00000-FC Picture of WEA16080W#AP3N00000-FC
PMOLED 1.54" Graphic 160x80, White, COG + PCB, IC SSD1320, 3V, Interface SPI, Glare

DESCRIPTION

The WEA16080W#AP3N00000-FC 1.54-inch OLED Display features a 160x80 resolution and a PCB design that simplifies the customer's PCB design process. It also includes mounting holes for easier installation, offering a reliable solution for various applications.

Key Features:

  • High Resolution: 160x80 pixel matrix, delivering clear visuals across various applications.
  • Superior Contrast: 10,000:1 contrast ratio for vibrant, easy-to-read images, even in challenging lighting conditions.
  • Low Power Consumption: Operates on a 3V supply, ideal for low-power applications.
  • Grayscale Support: 4-bit (16 levels) grayscale for enhanced image quality.
  • Easy Integration: COG structure and PCB design for simple system integration with the SSD1320 driver IC and 4-wire SPI support.
  • Wide Temperature Range: Operates from -40℃ to +80℃, ensuring stable performance under harsh conditions.


Versatile Applications:

  • Wearable Devices: Smartwatches, fitness trackers, and more.
  • Industrial Control Systems: Industrial equipment and control panels.
  • Portable Devices: Handheld or battery-powered devices.
  • Consumer Electronics: Health trackers, portable media players, etc.


The WEA16080W#AP3N00000-FC OLED Display offers an efficient and reliable display solution for portable, wearable, and industrial products.

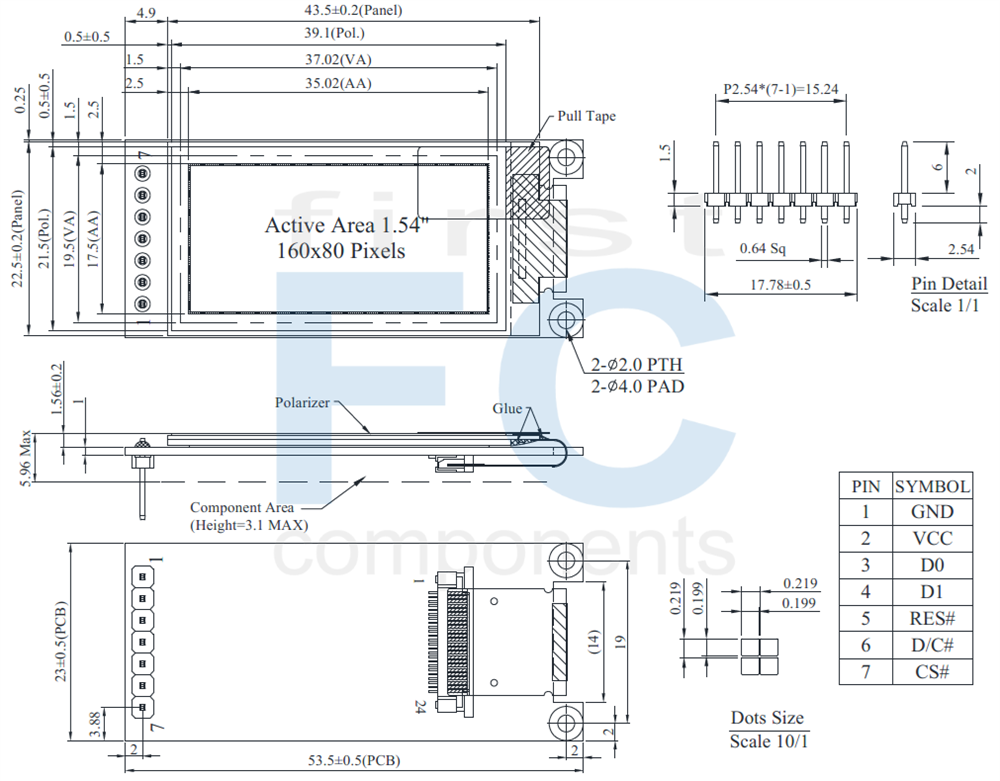

DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 160 x 80 Dots －
Module dimension 43.5 x 22.5 x 5.96 mm
Active Area 35.02 x 17.50 mm
Pixel Size 0.199 x 0.199 mm
Pixel Pitch 0.219 x 0.219 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/80 Duty
Gray Scale 4 bits
Interface 4-Wire SPI
IC SSD1320
Size 1.54 inch



Absolute Maximum Ratings

ParameterSymbolMinTyp.MaxUnit
Supply Voltage for Display VCC -0.3 － 5.5 V
Operating Temperature TOP -40 － +80 °C
Storage Temperature TSTG -40 － +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC － 2.8 3.0 5.2 V
High Level Input VIH － 0.8×VCC － VCC V
Low Level Input VIL － 0 － 0.2×VCC V
High Level Output VOH － 0.9×VCC － VCC V
Low Level Output VOL － 0 － 0.1×VCC V
Display 50% Pixel on ICC VCC=3V － 110 220 mA



Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC

Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. It must be connected to external source.
3 D0 The serial clock input
4 D1 The serial data input
5 RES# Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6 D/C# Data/Command Control
This pin is Data/Command control pin.
7 CS# Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.

SKU: WEA16080W#AP3N00000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€11.70
€8.60
€8.30
€8.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€11.70 excl tax

DESCRIPTION

The WEA16080W#AP3N00000-FC 1.54-inch OLED Display features a 160x80 resolution and a PCB design that simplifies the customer's PCB design process. It also includes mounting holes for easier installation, offering a reliable solution for various applications.

Key Features:

  • High Resolution: 160x80 pixel matrix, delivering clear visuals across various applications.
  • Superior Contrast: 10,000:1 contrast ratio for vibrant, easy-to-read images, even in challenging lighting conditions.
  • Low Power Consumption: Operates on a 3V supply, ideal for low-power applications.
  • Grayscale Support: 4-bit (16 levels) grayscale for enhanced image quality.
  • Easy Integration: COG structure and PCB design for simple system integration with the SSD1320 driver IC and 4-wire SPI support.
  • Wide Temperature Range: Operates from -40℃ to +80℃, ensuring stable performance under harsh conditions.


Versatile Applications:

  • Wearable Devices: Smartwatches, fitness trackers, and more.
  • Industrial Control Systems: Industrial equipment and control panels.
  • Portable Devices: Handheld or battery-powered devices.
  • Consumer Electronics: Health trackers, portable media players, etc.


The WEA16080W#AP3N00000-FC OLED Display offers an efficient and reliable display solution for portable, wearable, and industrial products.



DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 160 x 80 Dots －
Module dimension 43.5 x 22.5 x 5.96 mm
Active Area 35.02 x 17.50 mm
Pixel Size 0.199 x 0.199 mm
Pixel Pitch 0.219 x 0.219 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/80 Duty
Gray Scale 4 bits
Interface 4-Wire SPI
IC SSD1320
Size 1.54 inch



Absolute Maximum Ratings

ParameterSymbolMinTyp.MaxUnit
Supply Voltage for Display VCC -0.3 － 5.5 V
Operating Temperature TOP -40 － +80 °C
Storage Temperature TSTG -40 － +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC － 2.8 3.0 5.2 V
High Level Input VIH － 0.8×VCC － VCC V
Low Level Input VIL － 0 － 0.2×VCC V
High Level Output VOH － 0.9×VCC － VCC V
Low Level Output VOL － 0 － 0.1×VCC V
Display 50% Pixel on ICC VCC=3V － 110 220 mA



Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC

Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. It must be connected to external source.
3 D0 The serial clock input
4 D1 The serial data input
5 RES# Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6 D/C# Data/Command Control
This pin is Data/Command control pin.
7 CS# Chip Select
This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.

Products specifications
Brand Winstar
Size 1.54"
Resolution 160x80
Active Area (mm) 35.02x17.50
Dot Size 0.19x0.19
Polarizer Glare
Color White
Power supply 3V
Display Interface SPI
Display IC SSD1320
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 7
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.54"
Resolution 160x80
Active Area (mm) 35.02x17.50
Dot Size 0.19x0.19
Polarizer Glare
Color White
Power supply 3V
Display Interface SPI
Display IC SSD1320
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 7
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Related products

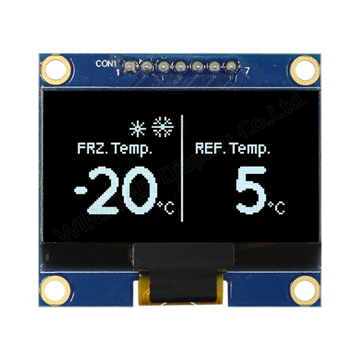

Picture of WEA12864W#AA3N00E00-FC
