    PMOLED 0.96" Graphic 128x64, Yellow, COG + Small PCB, 3V, Interface SPI (6 Pin), Glare
    Manufacturer: Winstar
    SKU: WEA12864L#D58-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €8.80
    €7.90
    €7.50
    €7.30

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €8.80 excl tax
    i h

    DESCRIPTION

    6 pin OLED display module diagonal size 0.96 inch 128x64pixels COG OLED display with PCB board on it. It is built in with SSD1306BZ IC, it communicates via SPI interface only, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. This module has a smaller PCB than standard version.

    This 0.96 inch OLED module is suitable for smart control, industrial control, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

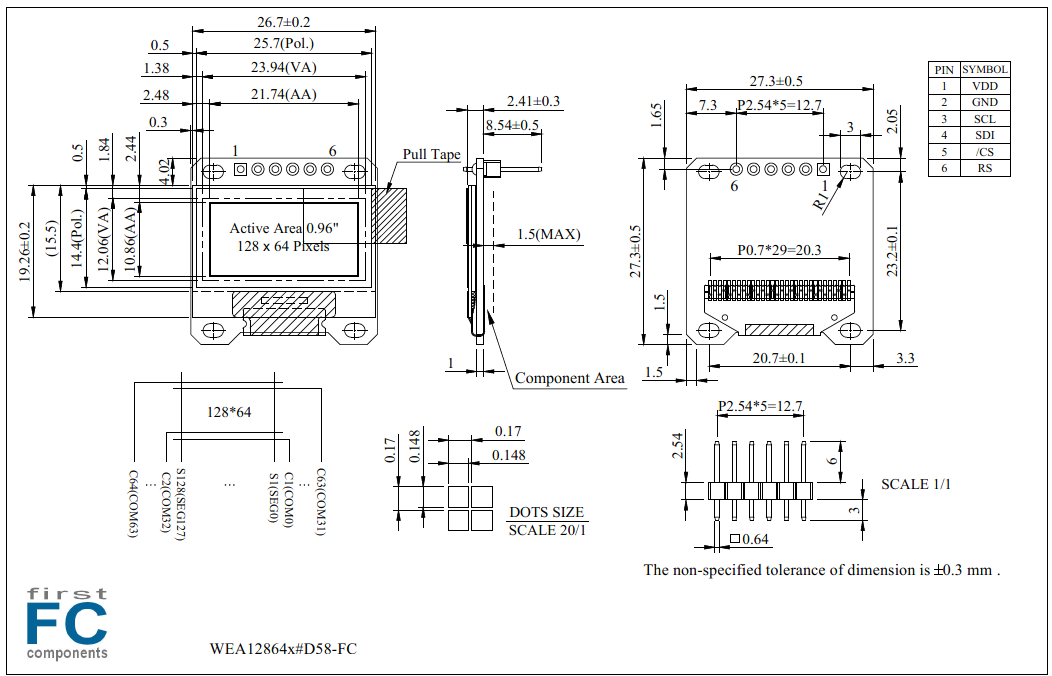

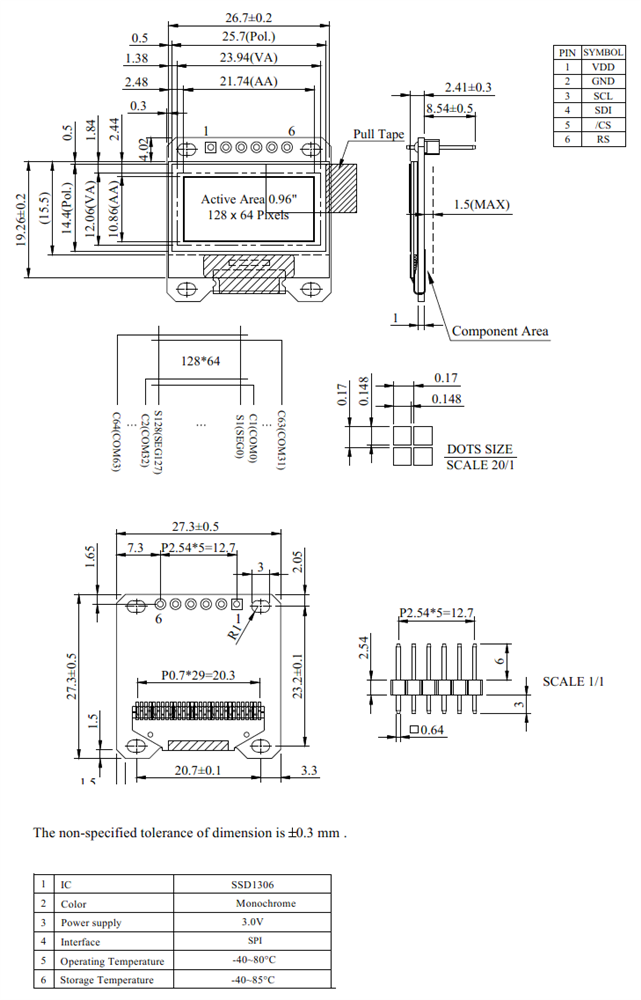

    DRAWING







    Products specifications
    Size 0.96"
    Resolution 128x64
    Active Area (mm) 21.74x10.86
    Dot Size 0.14x0.14
    Polarizer Glare
    Color Yellow
    Power supply 3V
    Display Interface SPI
    Display IC SSD1306BZ
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Pin Strip
    Pin Nr. 6
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
