WEA12832W#KP3N00000-FC

PMOLED 2" Graphic 128x32, White, COG + PCB, 3V, Interface SPI, Glare (SSD1315)

DESCRIPTION

The WEA12832W#KP3N00000-FC is a 2-inch graphic OLED display that combines an ultra-thin design with a high contrast ratio, making it an excellent choice for various applications. Featuring a COG structure with an integrated PCB, this module offers a resolution of 128x32 dots. It is equipped with the SSD1315 IC and supports a 4-wire SPI interface. The module operates at a logic supply voltage of 3.0V.

Thanks to OLED technology, the display achieves a contrast ratio of 10,000:1, ensuring crisp and vibrant visuals, even in challenging lighting conditions. Its slim and lightweight design makes it suitable for applications where space and weight are critical.

The WEA12832W#KP3N00000-FC module is designed to perform reliably across a wide temperature range, operating from -40℃ to +80℃, with storage temperatures ranging from -40℃ to +85℃. For customers who prefer a version without an integrated PCB, the WEO12832W#K00-FC model is available as an alternative.

This OLED display offers not only outstanding performance but also the versatility and durability required for demanding environments.

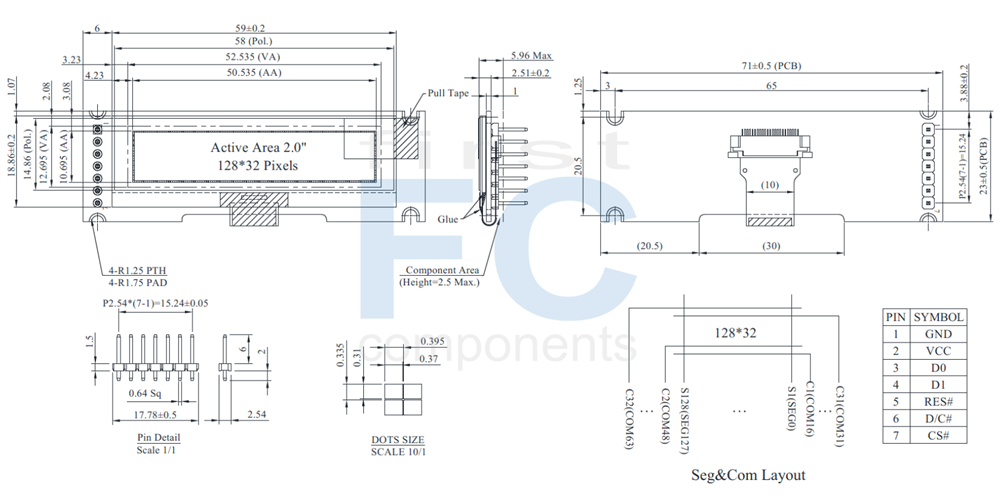

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 32	Dots
Module dimension	59.0 × 18.86 × 5.96 Max.	mm
Active Area	50.535×10.695	mm
Pixel Size	0.370 × 0.310	mm
Pixel Pitch	0.395 × 0.335	mm
Display Mode	Passive Matrix
Display Color	White
Interface	4-Wire SPI
Drive Duty	1/32 Duty
IC	SSD1315
Size	2 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Typ	Max	Unit
Supply Voltage for Display	VCC	-0.3	-	4	V
Operating Temperature	TOP	-40	-	+80	°C
Storage Temperature	TSTG	-40	-	+85	°C

Electronical Characteristics

Items	Symbol	Condition	Min.	Typ.	Max.	Unit
Supply Voltage for Logic	VCC	－	2.8	3.0	3.3	V
High Level Input	VIH	－	0.8xVCC	－	VCC	V
Low Level Input	VIL	－	0	－	0.2xVCC	V
High Level Output	VOH	－	0.9xVCC	－	VCC	V
Low Level Output	VOL	－	0	－	0.1xVCC	V
Display 50% Pixel on	ICC	VCC =3V	－	40	80	mA

Interface Pin Function

No.	Symbol	Function
1	GND	Ground.
2	VCC	Power supply pin for core logic operation.
3	D0	The serial clock input
4	D1	The serial data input
5	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation.
6	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D1 will be interpreted as data. When the pin is pulled LOW, the data at D1 will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection.
7	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

SKU: WEA12832W#KP3N00000-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

Price

€14.80

€13.30

€12.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€14.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

This OLED display offers not only outstanding performance but also the versatility and durability required for demanding environments.

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 32	Dots
Module dimension	59.0 × 18.86 × 5.96 Max.	mm
Active Area	50.535×10.695	mm
Pixel Size	0.370 × 0.310	mm
Pixel Pitch	0.395 × 0.335	mm
Display Mode	Passive Matrix
Display Color	White
Interface	4-Wire SPI
Drive Duty	1/32 Duty
IC	SSD1315
Size	2 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Typ	Max	Unit
Supply Voltage for Display	VCC	-0.3	-	4	V
Operating Temperature	TOP	-40	-	+80	°C
Storage Temperature	TSTG	-40	-	+85	°C

Electronical Characteristics

Items	Symbol	Condition	Min.	Typ.	Max.	Unit
Supply Voltage for Logic	VCC	－	2.8	3.0	3.3	V
High Level Input	VIH	－	0.8xVCC	－	VCC	V
Low Level Input	VIL	－	0	－	0.2xVCC	V
High Level Output	VOH	－	0.9xVCC	－	VCC	V
Low Level Output	VOL	－	0	－	0.1xVCC	V
Display 50% Pixel on	ICC	VCC =3V	－	40	80	mA

Interface Pin Function

No.	Symbol	Function
1	GND	Ground.
2	VCC	Power supply pin for core logic operation.
3	D0	The serial clock input
4	D1	The serial data input
5	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation.
6	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D1 will be interpreted as data. When the pin is pulled LOW, the data at D1 will be transferred to a command register. In I2C mode, this pin acts as SA0 for slave address selection.
7	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

Products specifications

Brand	Winstar
Size	2"
Resolution	128x32
Active Area (mm)	50.53x10.69
Dot Size	0.37x0.31
Polarizer	Glare
Color	White
Power supply	3V
Display Interface	SPI
Display IC	SSD1315
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Pin Strip
Pin Nr.	7
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
