WAA0213BA6#A2N1AA-FC

E-Paper 2.13" 250x122 Color Black on White, Interface SPI with Front-Light 2.13"

DESCRIPTION

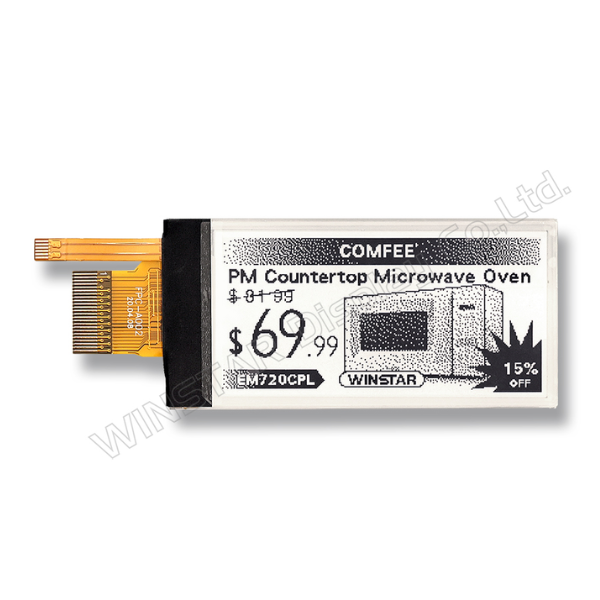

WAA0213BA6#A2N1AA-FC is an Electronic Paper Display (EPD) with a front light panel. The display is capable of showing images in 1-bit black and white with full display capabilities. The 2.13-inch active area has a resolution of 122 × 250 pixels. The module is a TFT-array-driven electrophoretic display with integrated circuits, including a gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM. This module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) systems.

Features

  • 122×250 pixels display
  • High contrast, high reflectance
  • Ultra wide viewing angle
  • Ultra low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Landscape and portrait modes
  • Hard-coat, antiglare display surface
  • Ultra low current deep sleep mode
  • On-chip display RAM
  • Waveforms can be stored in the on-chip OTP or written by the MCU
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages
  • I2C master interface to read external temperature sensor. Built-in temperature sensor
  • With front light panel, 3 LEDs in serial
  • Operating voltage for front light panel: 9V

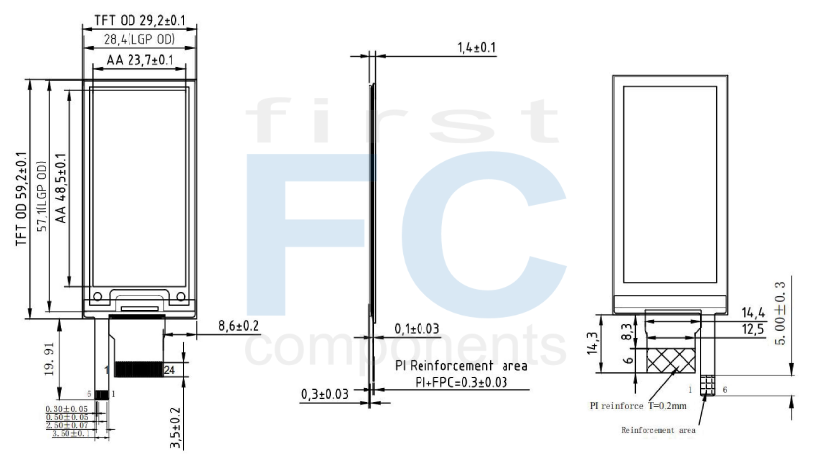

DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.13 Inch
Display Resolution 122(H)×250(V) Pixel
Active Area 23.7×48.5 mm
Pixel Pitch 0.1943×0.1942 mm
Pixel Configuration Square
Outline Dimension 29.2(H)×59.2 (V) ×1.4(D) mm
Module Weight 4.75±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Interface

Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive Source driving voltage(Red)
6 TSCL O I2C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low.
11 D/C# I Data /Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P Power Supply for interface logic pins It should be
connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage
and VSH1
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage
VCOM and VSL
24 VCOM C VCOM driving voltage
SKU: WAA0213BA6#A2N1AA-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€20.10
€14.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€20.10 excl tax

DESCRIPTION

WAA0213BA6#A2N1AA-FC is an Electronic Paper Display (EPD) with a front light panel. The display is capable of showing images in 1-bit black and white with full display capabilities. The 2.13-inch active area has a resolution of 122 × 250 pixels. The module is a TFT-array-driven electrophoretic display with integrated circuits, including a gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM. This module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) systems.

Features

  • 122×250 pixels display
  • High contrast, high reflectance
  • Ultra wide viewing angle
  • Ultra low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Landscape and portrait modes
  • Hard-coat, antiglare display surface
  • Ultra low current deep sleep mode
  • On-chip display RAM
  • Waveforms can be stored in the on-chip OTP or written by the MCU
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages
  • I2C master interface to read external temperature sensor. Built-in temperature sensor
  • With front light panel, 3 LEDs in serial
  • Operating voltage for front light panel: 9V



DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.13 Inch
Display Resolution 122(H)×250(V) Pixel
Active Area 23.7×48.5 mm
Pixel Pitch 0.1943×0.1942 mm
Pixel Configuration Square
Outline Dimension 29.2(H)×59.2 (V) ×1.4(D) mm
Module Weight 4.75±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Interface

Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive Source driving voltage(Red)
6 TSCL O I2C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low.
11 D/C# I Data /Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P Power Supply for interface logic pins It should be
connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage
and VSH1
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage
VCOM and VSL
24 VCOM C VCOM driving voltage
Products specifications
Brand Winstar
Size 2.13"
Resolution 250x122
Active Area (mm) 23.71x48.55
Dot Size 0.19x0.19
Color Black on White
Display Interface SPI
O. Temperature (°C) 0~50
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
