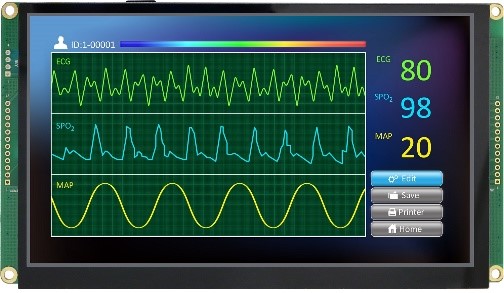

The new TFT M Series called “Clever System” is a easy system for users to begin employ the colorful display on their applications. The M Series has 2 user interfaces: RS232 and SPI interfaces. Winstar Display also design a TFT editing program for end users to design their software more easily.

BENEFITS

  • All in One System: Micro controller is behind the TFT panel and it can drive TFT, backlight and touch panel directly.  Therefore, the users don’t need to develop the entire hardware and firmware.
  • Backlight brightness adjustment; Buffer SRAM, Graphic file Flash, Picture download to module system.
  • Convenient to Upgrade: the software can be upgraded on line.
  • Less Coding Process: there is a UI program which can demo what users want.
  • Reduce I/O Port: The customers can use RS232 or SPI-4 Line to driver TFT directly.

SHORT DEVELOPMENT TIME

Customers can connect TFT Clever System Module with the PC by RS232, therefore the customer can code and design the content in UI. In this regard, there is 5 content design modes: Test (font and background conversion), Graphic (image in QVGA resolution), Pixel (definition and color modification), Geometric (drawing line and square) and Clean (block cleaning).

There is also a Evaluation Toll (EVAL BOARD / CABLE MINI USB / WST PC SW) for a simple and quick compilation of content and RAM upload of the Display's module.



AVAILABLE PRODUCTS

TFT 3.5''







  • Dot Matrix: 320 x RGB x 240mm
  • Module dimension: 100(W) x 66.44(H) x 5.76(D)mm
  • Active area: 70.08 x 52.56mm
  • Dot pitch: 0.219 x 0.073mm
  • View Direction: 12 o'clock
  • Touch panel: RTP optional
  • Surface: No anti-glare



TFT 4.3''









  • Dot Matrix: 480 x RGB x 272mm
  • Module dimension: 125.5(W) x 67.2(H) x 7.6(D)mm
  • Active area: 95.04 x 53.86mm
  • Dot pitch: 0.066 x 0.198mm
  • View Direction: 12 o'clock
  • Touch panel: CTP or RTP optional
  • Surface: No anti-glare



TFT 5.7''













  • Dot Matrix: 320 x RGB x 240mm
  • Module dimension: 141.12(W) x 101.55(H) x 13.5(D)mm
  • Active area: 115.2 x 86.4mm
  • Dot pitch: 0.12 x 0.36mm
  • View Direction: 12 o'clock
  • Gray scale inversion direction: 6 o'clock
  • Touch panel: CTP or RTP optional
  • Surface: No anti-glare

TFT 7''













  • Dot Matrix: 800 x RGB x 480mm
  • Module dimension: 166.2(W) x 101.2(H) x 11.1(D)mm
  • Active area: 154.08 x 85.92mm
  • Dot pitch: 0.0642 x 0.1796mm
  • View Direction: 12 o'clock
  • Touch panel: CTP or RTP optional
  • Surface: Anti-glare

WWTFT-10#


EVALUATION KIT FOR TFT CLEVER SYSTEM:
  • PCB dimension: 100x 52 x 11.54mm
  • Mini USB cable for PC connection
  • Winstar PC software
  • M-Series user guide
  • WWTFT-10#
