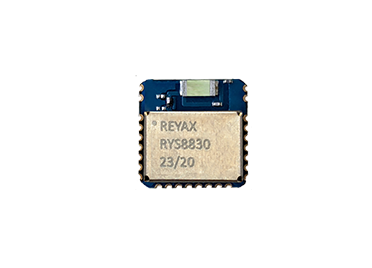

    Small form factor & Ultra Low Power 1.8V UART/I2C interface GNSS antenna module
    Manufacturer: Reyax
    SKU: RYS8830
    PRICE BREAKS
    Quantity
    1+
    5+
    Price
    €13.90
    €12.70

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €13.90 excl tax
    i h
    • SONY CXD5605GF CXD5605AGF multi-GNSS receiver for GPS, GLONASS, SBAS, QZSS, BeiDou and Galileo.
    • Small SMD form factor 121mm^2
    • Enhanced GNSS Filter and Low Noise Amplifier
    • Ultra-low power consumption
    • Up to Position accuracy 1.0 m CEP
    • Embedded Antenna
    • Optional external antenna



    The REYAX RYS8830 is built on the high performance of the SONY CXD5605GF CXD5605AGF GNSS engine.
    The RYS8830 modules utilize concurrent reception of GNSS systems offering high sensitivity in a small SMD form factor.



    Item

    Min. Typical Max. Unit Condition
    Power Supply Voltage 1.71 1.8 1.89 V VDD
      0.9 1.8 1.95 V VDD_LDO_IN

    Satellite acquisition Current

      20   mA
    Satellite tracking Current   13   mA
    Idle Current   3   mA Waiting for command
    Sleep0 mode current   0.6   mA
    Sleep1 mode current   200   uA
    Sleep2 mode current   200   uA

    I2C slave         I2C clock : 400kHz



    Address length : 7 bits

    Slave address : 0x24

    Default Baud Rate    115200   bps 8,N,1
    Digital input level high 0.7*VDD   VDD+0.3 V VIH
    Digital input level low -0.3   0.3*VDD V VIL
    Digital output level high 0.8*VDD   VDD V VOH 2mA
    Digital output level low 0   0.2*VDD V VOL 2mA
    Flash size   8   M-bit
    GNSS Center Frequency   1561.098



    1575.42

    1602.5625

      MHz BeiDou



    GPS

    Glonass

    Navigation update rate   1   Hz
    Accuracy   1   M Signal strength is -130dBm
    Cold starts   35   Sec. Signal strength is -130dBm
    Hot starts   1   Sec.

    Tracking Sensitivity   -161   dBm
    Hot starts Sensitivity   -160   dBm
    Cold starts Sensitivity   -147   dBm
    Operating Temperature -40 25 +85 ˚C
    Dimensions         11mm*11mm*2.2mm
    Weight   0.43   g

    *
    *
    *
    *
