RYR91EU

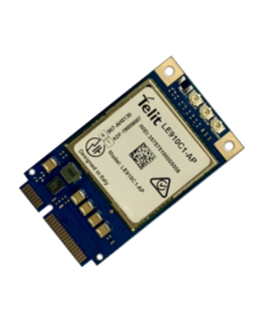

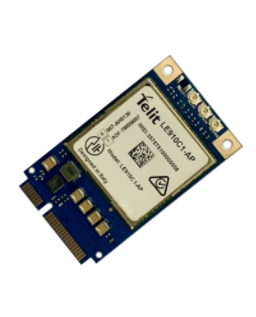

Picture of RYR91EU Picture of RYR91EU
LTE CAT1 / GNSS, Build-in nano SIM card holder, Mini PCIe Signal Type USB2.0
  • TELIT LE910C1 4G CAT1 LTE & GNSS engine
  • Build-in nano SIM card holder
  • HIROSE U.FL-R-SMT-1 RF CONNECTOR
  • Standard mini PCIe
  • Mini PCIe Signal Type USB2.0

The RYR9000 series is based on the PCI Express Mini Card standard with a USB 2.0 interface.



Mode 4G＆GNSS Engine 2G HSPA+ LTE FDD
RYR91EU LE910C1-EU 3, 8 1, 3, 8 1, 3, 7, 8, 20, 28A



Item Min. Typ Max. Unit Description
TELIT LE910C4 Series
LTE FDD Category   4
Downlink Speed   150   Mbps
Uplink Speed   50   Mbps
GNSS
GNSS Center Frequency   1575.42



1602.5625

   MHz GPS



Glonass
Navigation Update Rate   1   Hz
Accuracy 0.8     M CEP
Cold Start 30     Sec.
Warm Start 23     Sec.
Hot Start 1.1     Sec.
Tracking Sensitivity   -160   dBm
Cold Starts Sensitivity   -145   dBm
Hot Starts Sensitivity   -147   dBm





Item Min. Typ Max. Unit Description
General
Operating Voltage Power Input 3 3.3 5.5 V VCC
VIH 1.25 1.8 1.95 V High level input voltage
VIL     0.6 V Low-level input voltage
VOH 1.4 1.8   V High level output voltage
VOL     0.45 V Low level output voltage
USB Interface         V2.0
Operating Temperature Range -40 25 +85 ˚C 4G LTE
Dimension         mini PCIe Standard



50.95mm*30mm
Antenna Connector   3     U.FL-R-SMT-1
Weight   11   g
SKU: RYR91EU
Brand: Reyax
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€60.90
€56.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€60.90 excl tax
  • TELIT LE910C1 4G CAT1 LTE & GNSS engine
  • Build-in nano SIM card holder
  • HIROSE U.FL-R-SMT-1 RF CONNECTOR
  • Standard mini PCIe
  • Mini PCIe Signal Type USB2.0

The RYR9000 series is based on the PCI Express Mini Card standard with a USB 2.0 interface.



Mode 4G＆GNSS Engine 2G HSPA+ LTE FDD
RYR91EU LE910C1-EU 3, 8 1, 3, 8 1, 3, 7, 8, 20, 28A



Item Min. Typ Max. Unit Description
TELIT LE910C4 Series
LTE FDD Category   4
Downlink Speed   150   Mbps
Uplink Speed   50   Mbps
GNSS
GNSS Center Frequency   1575.42



1602.5625

   MHz GPS



Glonass
Navigation Update Rate   1   Hz
Accuracy 0.8     M CEP
Cold Start 30     Sec.
Warm Start 23     Sec.
Hot Start 1.1     Sec.
Tracking Sensitivity   -160   dBm
Cold Starts Sensitivity   -145   dBm
Hot Starts Sensitivity   -147   dBm





Item Min. Typ Max. Unit Description
General
Operating Voltage Power Input 3 3.3 5.5 V VCC
VIH 1.25 1.8 1.95 V High level input voltage
VIL     0.6 V Low-level input voltage
VOH 1.4 1.8   V High level output voltage
VOL     0.45 V Low level output voltage
USB Interface         V2.0
Operating Temperature Range -40 25 +85 ˚C 4G LTE
Dimension         mini PCIe Standard



50.95mm*30mm
Antenna Connector   3     U.FL-R-SMT-1
Weight   11   g
