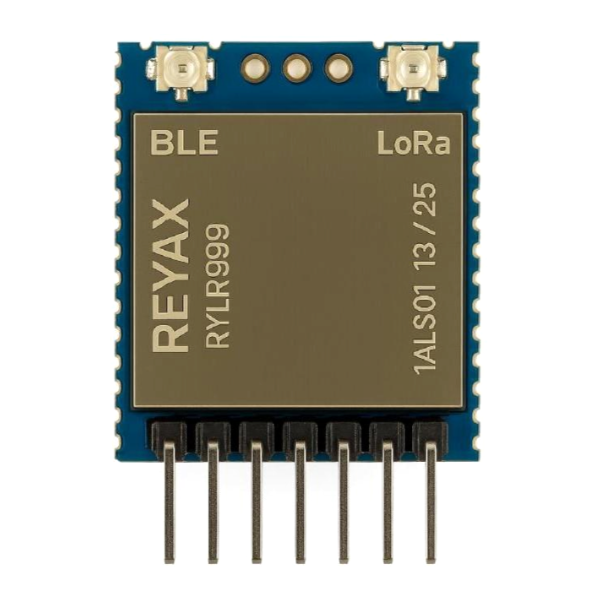

RYLR999

LoRa Frequency Range: 820/960 MHz, Control by AT commands, 25*22*3 mm, -40 to +85°C
  • +20dBm BLE RF output power
  • BLE Transparent mode.
  • BLE converts long-range communication through LoRa®
  • Semtech LoRa® Engine +30dBm RF output power
  • Control easily by AT commands
  • Firmware can be updated using BLE OTA function.

The RYLR999 module features both BLE and LoRa functionalities, each controlled through separate UART interfaces.
The BLE functionality supports long range transmission and complies with the standard GATT profile in transparent mode. Additionally, it allows customization of the broadcast name and other settings.
The LoRa® functionality offers long range transmission and high-sensitivity reception, enabling communication with other REYAX modules. Transmission, reception, and various parameters can be controlled using AT commands.
If two UART interfaces are connected, it can also enable BLE-to-LoRa conversion.

SPECIFICATION

Item Min. Typical Max. Unit Condition
VDD Power Supply 4.75 5 5.25 V
Digital I/O   3.3   V
BLE
RF Output Power   18.5 20 dBm
RF Sensitivity   -104.9   dBm @ 125 kbps GFSK
RF Input Level     10 dBm
RF Frequency Range 2400   2483.5 MHz
Transmit Mode current   190   mA 20dBm
Advertising Current   17   mA BLE broadcast 100ms.
Frequency Accuracy   ±20   ppm

at 25°C ±3°C



LoRa®
RF Output Power   30   dBm
RF Sensitivity -133     dBm
RF Input Level     10 dBm

Frequency Range

820 868/915 960 MHz
Transmit Mode current   650   mA RFOP = 30dBm
Receive Mode current   15.5   mA
Sleep mode current   1.25   uA AT+MODE=1
Frequency Accuracy   ±20   ppm at 25°C ±3°C

Sleep mode current   18.2   uA

AT+CFUN=0

AT+MODE=1

Baud rate   115200   bps 8, N, 1
Temperature sensor Accuracy   2   °C AT+TEMP?

Digital input level high 0.8 3.3 3.4 V VIH
Digital input level low     0.2 V VIL
Digital output level high 3.1 3.3   V

VOH Imax = 1 mA

Digital output level low     0.2 V VOL Imax = -1 mA
Operating Temperature -40 25 +85 ˚C
Dimensions RYLR999_NP         25mm x 22mm x 3mm
Weight   3.2   g
Flash erase cycles   10   K Cycles





SKU: RYLR999
Brand: Reyax
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€22.30
€20.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€22.30 excl tax
  • +20dBm BLE RF output power
  • BLE Transparent mode.
  • BLE converts long-range communication through LoRa®
  • Semtech LoRa® Engine +30dBm RF output power
  • Control easily by AT commands
  • Firmware can be updated using BLE OTA function.

The RYLR999 module features both BLE and LoRa functionalities, each controlled through separate UART interfaces.
The BLE functionality supports long range transmission and complies with the standard GATT profile in transparent mode. Additionally, it allows customization of the broadcast name and other settings.
The LoRa® functionality offers long range transmission and high-sensitivity reception, enabling communication with other REYAX modules. Transmission, reception, and various parameters can be controlled using AT commands.
If two UART interfaces are connected, it can also enable BLE-to-LoRa conversion.

SPECIFICATION

Item Min. Typical Max. Unit Condition
VDD Power Supply 4.75 5 5.25 V
Digital I/O   3.3   V
BLE
RF Output Power   18.5 20 dBm
RF Sensitivity   -104.9   dBm @ 125 kbps GFSK
RF Input Level     10 dBm
RF Frequency Range 2400   2483.5 MHz
Transmit Mode current   190   mA 20dBm
Advertising Current   17   mA BLE broadcast 100ms.
Frequency Accuracy   ±20   ppm

at 25°C ±3°C



LoRa®
RF Output Power   30   dBm
RF Sensitivity -133     dBm
RF Input Level     10 dBm

Frequency Range

820 868/915 960 MHz
Transmit Mode current   650   mA RFOP = 30dBm
Receive Mode current   15.5   mA
Sleep mode current   1.25   uA AT+MODE=1
Frequency Accuracy   ±20   ppm at 25°C ±3°C

Sleep mode current   18.2   uA

AT+CFUN=0

AT+MODE=1

Baud rate   115200   bps 8, N, 1
Temperature sensor Accuracy   2   °C AT+TEMP?

Digital input level high 0.8 3.3 3.4 V VIH
Digital input level low     0.2 V VIL
Digital output level high 3.1 3.3   V

VOH Imax = 1 mA

Digital output level low     0.2 V VOL Imax = -1 mA
Operating Temperature -40 25 +85 ˚C
Dimensions RYLR999_NP         25mm x 22mm x 3mm
Weight   3.2   g
Flash erase cycles   10   K Cycles
