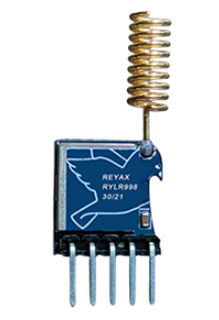

RYLR998

LoRa Module with Integrated Antenna, Frequency Range: 868 / 915 MHz, Control by AT commands, 32*14*2.2 mm

※SEMTECH® Press Release:

https://www.semtech.com/company/press/semtechs-lora-devices-integrated-into-reyax-technologys-new-antenna-transceiver-module

NUVOTON MCU & Semtech LoRa Engine
Excellent blocking immunity
Low receive current
High sensitivity
Control easily by AT commands
Built-in antenna

The RYLR998 transceiver module features the Lora long-range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

Item	Min.	Typical	Max.	Unit	Condition
VDD Power Supply	1.8	3.3	3.6	V	VDD
RF Output Power Range	-20		22	dBm
Filter insertion loss	1	2	3	dB
RF Sensitivity	-129			dBm
RF Input Level			10	dBm
Frequency Range	820	868/915	960	MHz
Frequency Accuracy		±10		ppm
Transmit Mode Current		140		mA	RFOP = +22 dBm
Receive Mode Current		17.5		mA
Sleep mode Current		15		uA	AT+MODE=1
Smart receiving power saving mode average current	0.02	2.7	5.5	mA	AT+MODE=2,3000,3000
Digital Input Level High	0.7*VDD		VDD	V	VIH
Digital Input Level Low	0		0.3*VDD	V	VIL
Digital Output Level High	0.9		VDD	V	VOH
Digital Output Level Low			0.1	V	VOL
Cycling (erase / write) Flash data memory		200		K	Cycles
Weight		2		g
Operating Temperature	-40	25	+85	˚C

SKU: RYLR998

Brand: Reyax

Available: Yes

Be the first to review this product

Accessory Kit

Added Board

Price Breaks

Quantity

Price

€10.20

€9.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€10.20 excl tax
