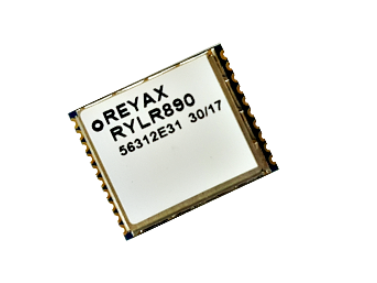

RYLR890

LoRa Frequency Range: 868 / 915 MHz, Semtech SX1276, 13*11*2.2 mm, -40 to +85°C

Application: Iot Applications, Mobile Equipment, Home Security, Industrial Monitoring and Control Equipment, Car Alarm
Frequency Range:868/915 MHz
Semtech SX1276 Engine
High efficiency Power Amplifier
Excellent blocking immunity
Low Receive current
High sensitivity
127 dB Dynamic Range RSSI
Operation temperature: -40℃ to +85℃
Dimension: 13*11*2.2 mm
Weight:1g

The RYLR890 transceiver module feature the LoRa long range modem that provides ultra-long range spread spectrum communication

and high interference immunity whilst minimising current consumption.

Item	Min.	Typical	Max.	Unit	Condition
VDD Power Supply	1.8	3.3	3.6	V
TCXO Power Supply	1.7		3.3	V
TCXO Accuracy		±2		ppm
TCXO Long-term Frequency Stability		±1		ppm/Year
TCXO Rise time		3		ms
RF Output Power Range	-4		15	dBm
Filter insertion loss	1	2	3	dB
Harmonic			-36	dBm
RF sensitivity	-148			dBm
RF Input Level			10	dBm
Frequency Range	820	868/915	1020	MHz
SX1276 Transmit Current		29		mA	RFOP = +13 dBm
SX1276 Receive Current		11.5		mA	LNA Boost On
Sleep Current		0.2		uA
RF Switch Current		10		uA
TCXO Current		2.5		mA
Communication Range		4		KM	Open Space 125KHz
Digital input level high	0.8		VDD	V	VIH
Digital input level low			0.2	V	VIL
Digital output level high	0.9			V	VOH Imax = 1 mA
Digital output level low			0.1	V	VOL Imax = -1 mA
Operating Temperature	-40	25	+85	˚C
Dimensions					13mm11mm2.2mm
Weight		1		g

SKU: RYLR890

Brand: Reyax

Available: Yes

Price Breaks

Quantity

Price

€9.20

€8.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.20 excl tax
