    Embedded Active Patch Antenna High Performance 25x25mm Two Stage LNA GNSS
    Manufacturer: Reyax
    SKU: RYAGN40
    PRICE BREAKS
    Quantity
    1+
    5+
    Price
    €7.80
    €7.20

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €7.80 excl tax
    i h

    DESCRIPTION



    The RYAGN40 active GNSS antenna, it has a wide-band operation over GPS/GLONASS/GALILEO/BeiDou systems. It includes a two-stage high performance LNA and excellent front-end SAW filter to reduce out of band noise.



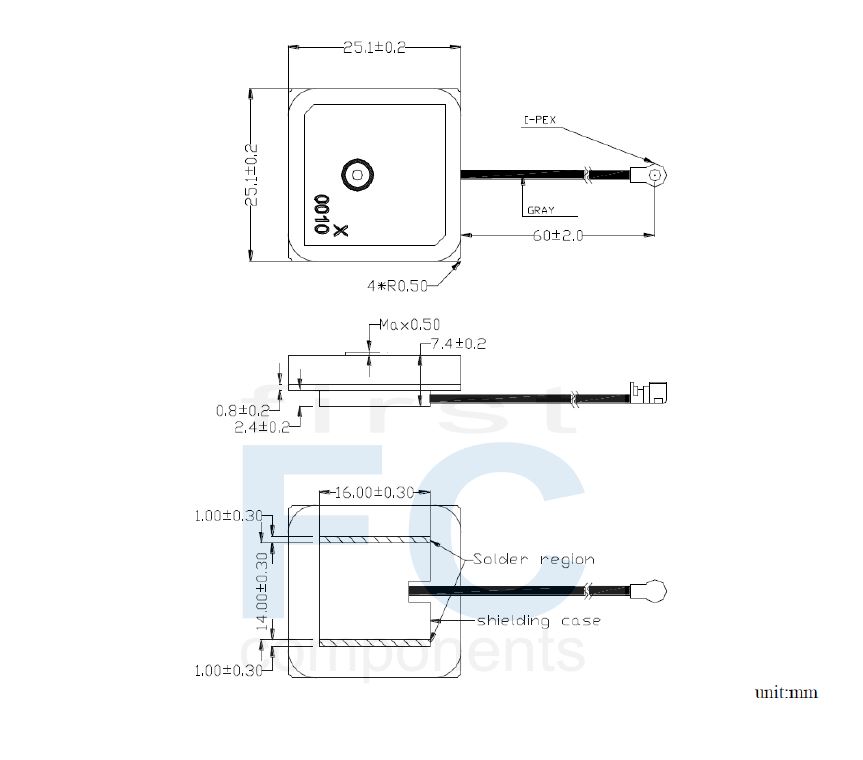

    DRAWING

    SPECIFICATION



    Item



    Typical



    Unit

    Condition

    Operation Voltage

    1.8

    3

    5.5

    V



    RF Frequency Range

    1559.052

    1574.397

    1597

    1561.098

    1575.42

    1602

    1563.144

    1576.443

    1607

    mHz

    BeiDou

    GPS, Galileo

    Glonass

    Total Gain

    24

    22.5

    23.5

    27

    25.5

    26.5

    30

    28.5

    29.5

    dBi

    BeiDou

    GPS, Galileo

    Glonass

    Outer Band Attenuation

    13

    20



    dB

    1584±50MHz

    1584±100MHz

    Output Impedance



    50



    Ω



    Output VSWR





     2



    Power Consumption



    5

    10

    23



    mA

     1.8V

    3V

    5.5V

    Noise Figure



    3



    dB



    Relative Humidity

     40



    95

     %



    Operating Temperature

     -40

    +85

    +25

    ˚C



    Antenna Polarization



    3



    RHCP

    RF Cable Length

    58

    60

    62

    mm

     ψ1.13±0.1mm,

    Color : GRAY

    Body Dimensions









    25.1mm*25.1mm*7.4mm

    Weight



     11.5



     g






    *
    *
    *
    *
