PH128800T004-ZZC06

Picture of PH128800T004-ZZC06 Picture of PH128800T004-ZZC06
TFT 10.1" 1280x800 LCD Panel, Interface LVDS, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, MXT1066 IC), V-Com, B/L Power on FPC

DESCRIPTION

PH128800T004-ZZC06 is a 10.1-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.

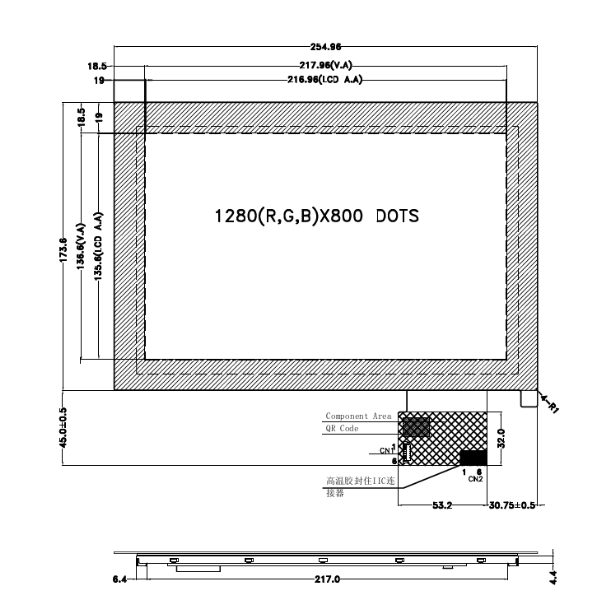

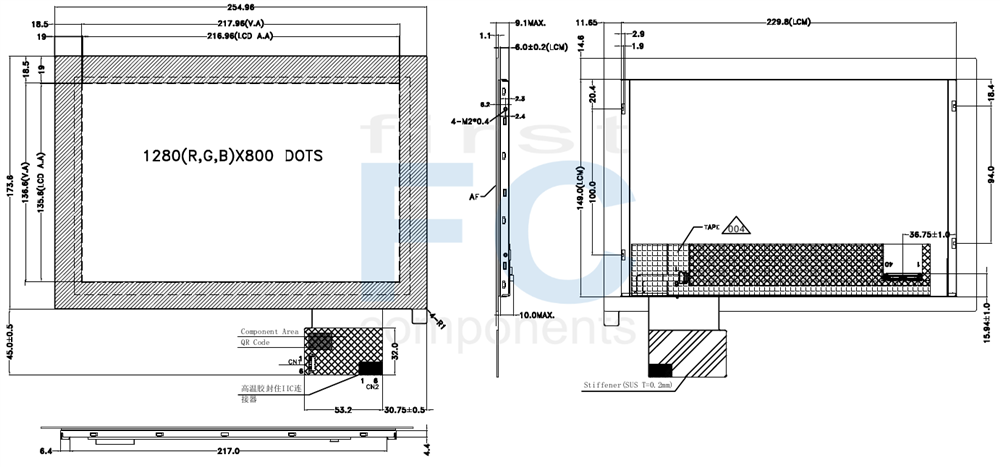

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 NC No Connection
2 VDD Power Supply
3 VDD Power Supply
4 NC No Connection
5 NC No Connection
6 NC No Connection
7 NC No Connection
8 LV0N -LVDS Differential Data Input
9 LV0P

+LVDS Differential Data Input
10 GND Ground
11 LV1N -LVDS Differential Data Input
12 LV1P +LVDS Differential Data Input
13 GND

Ground
14 LV1N -LVDS Differential Data Input
15 LV1P +LVDS Differential Data Input
16 GND Ground
17 LVCLKN -LVDS Differential Clock Input
18 LVCLKP +LVDS Differential Clock Input
19 GND Ground
20 LV3N -LVDS Differential Data Input
21 LV3P +LVDS Differential Data Input
22 GND Ground
23 LED_GND Ground for LED Driving
24 LED_GND Ground for LED Driving
25 LED_GND Ground for LED Driving
26 NC No Connection
27 LED_PWM LED Backlight PWM control signal for dimming
28 LED_EN LED Backlight Enable Input
29 NC No Connection
30 NC

No Connection
31 LED_VCC Power Supply for LED Backlight driving
32 LED_VCC Power Supply for LED Backlight driving
33 LED_VCC Power Supply for LED Backlight driving
34 NC No Connection
35 NC No Connection
36 NC No Connection
37 NC No Connection
38 NC No Connection
39 NC No Connection
40 NC No Connection



CN1 (CTP USB Interface)

Pin
Number		SymbolFunction
1 VDD Power Supply (+5.0)
2 D- D- Differential Data Input
3 D+ D+ Differential Data Input
4 NC No Connection
5 GND Ground
6 NC No Connection



General Specification

ItemDimensionUnit
Screen size(Inch) 10.1(Diagonal) －
Resolution 1280*(R-G-B)*800 Dots mm
Display mode

Transmissive, Normally Black

 mm
Color 16.7M
Interface 8 bit LVDS
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply Voltage VDD - -0.3 +4.0 V
Power Supply Voltage LED_VCC - -0.3 +27 V
Operating Temperature TOP(TS) Note 1 -20 +70 °C
Storage Temperature TST(TA) Note 2 -30 +80 °C
Storage Humidity Hd Ta<60°C 10 90 %RH



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage for LCD Driver VDD - 2.75 3.3 3.6 V
Power Supply Voltage for LED Driver LED_VCC - 8.0 12.0 15.0 V
Power Supply Current IDD VDD03.3V - 400 600 mA
Power Supply Current for LED Driver ILED_VCC

LED_VCC=12V

 - 650 700 mA
Power Consumption Pd

VDD=3.3V

LED_VCC=12V

 - - 1.98+8.4 W
PWM Signal Voltage High VPWM - 1.9 - - V
Low - - - 0.8 V
LED Enable Voltage High VLED_EN - 1.9 - - V
Low - - - 0.8 V
PWM Freqency Fpwm - 100 - 20000 Hz



SKU: PH128800T004-ZZC06
Brand: Powertip
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€147.70
€137.10
€132.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€147.70 excl tax

DESCRIPTION

PH128800T004-ZZC06 is a 10.1-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 NC No Connection
2 VDD Power Supply
3 VDD Power Supply
4 NC No Connection
5 NC No Connection
6 NC No Connection
7 NC No Connection
8 LV0N -LVDS Differential Data Input
9 LV0P

+LVDS Differential Data Input
10 GND Ground
11 LV1N -LVDS Differential Data Input
12 LV1P +LVDS Differential Data Input
13 GND

Ground
14 LV1N -LVDS Differential Data Input
15 LV1P +LVDS Differential Data Input
16 GND Ground
17 LVCLKN -LVDS Differential Clock Input
18 LVCLKP +LVDS Differential Clock Input
19 GND Ground
20 LV3N -LVDS Differential Data Input
21 LV3P +LVDS Differential Data Input
22 GND Ground
23 LED_GND Ground for LED Driving
24 LED_GND Ground for LED Driving
25 LED_GND Ground for LED Driving
26 NC No Connection
27 LED_PWM LED Backlight PWM control signal for dimming
28 LED_EN LED Backlight Enable Input
29 NC No Connection
30 NC

No Connection
31 LED_VCC Power Supply for LED Backlight driving
32 LED_VCC Power Supply for LED Backlight driving
33 LED_VCC Power Supply for LED Backlight driving
34 NC No Connection
35 NC No Connection
36 NC No Connection
37 NC No Connection
38 NC No Connection
39 NC No Connection
40 NC No Connection



CN1 (CTP USB Interface)

Pin
Number		SymbolFunction
1 VDD Power Supply (+5.0)
2 D- D- Differential Data Input
3 D+ D+ Differential Data Input
4 NC No Connection
5 GND Ground
6 NC No Connection



General Specification

ItemDimensionUnit
Screen size(Inch) 10.1(Diagonal) －
Resolution 1280*(R-G-B)*800 Dots mm
Display mode

Transmissive, Normally Black

 mm
Color 16.7M
Interface 8 bit LVDS
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply Voltage VDD - -0.3 +4.0 V
Power Supply Voltage LED_VCC - -0.3 +27 V
Operating Temperature TOP(TS) Note 1 -20 +70 °C
Storage Temperature TST(TA) Note 2 -30 +80 °C
Storage Humidity Hd Ta<60°C 10 90 %RH



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage for LCD Driver VDD - 2.75 3.3 3.6 V
Power Supply Voltage for LED Driver LED_VCC - 8.0 12.0 15.0 V
Power Supply Current IDD VDD03.3V - 400 600 mA
Power Supply Current for LED Driver ILED_VCC

LED_VCC=12V

 - 650 700 mA
Power Consumption Pd

VDD=3.3V

LED_VCC=12V

 - - 1.98+8.4 W
PWM Signal Voltage High VPWM - 1.9 - - V
Low - - - 0.8 V
LED Enable Voltage High VLED_EN - 1.9 - - V
Low - - - 0.8 V
PWM Freqency Fpwm - 100 - 20000 Hz



Products specifications
Brand Powertip
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller MXT1066
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller MXT1066
Preferred - Not Preferred Preferred
