PH128160T068-LAA11

TFT 1.77" 128x160 Portrait LCD Panel, Interface MCU (Parallel) IC ST7735S, 260cd/m², No touch

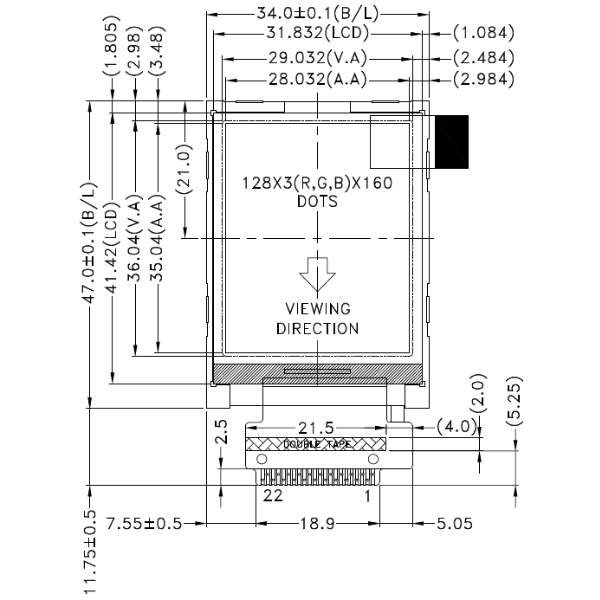

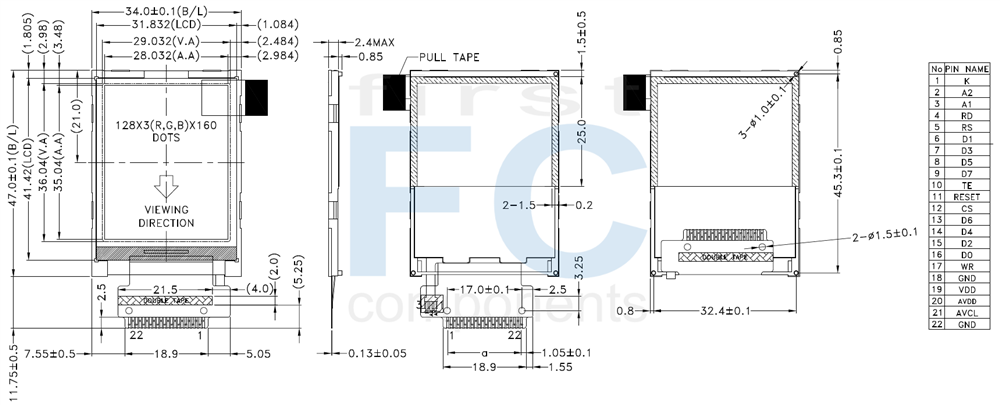

DRAWING

SPECIFICATIONS

Interface Pin Description

Pin	Symbol	Description
1	K	Power Supply for LED Backlight Cathode input
2	A2	Power Supply for LED Backlight Anode input
3	A1	Power Supply for LED Backlight Anodeinput
4	RD	Read signal input, Active "L"
5	RS	The signal for command or parameter select under parallel mode Low: command ; High: parameter
6	D1	Bi-directional data bus
7	D3	Bi-directional data bus
8	D5	Bi-directional data bus
9	D7	Bi-directional data bus
10	TE	Tearing effect output pin to synchronies MPU to frame rate, activated by S/W command
11	RESET	This signal will reset the device and it must be applied to properly initialize the chip, Active "L"
12	CS	Chip selection pin, Active "L"
13	D6	Bi-directional data bus
14	D4	Bi-directional data bus
15	D2	Bi-directional data bus
16	D0	Bi-directional data bus
17	WR	Write enable in MPU parallel interface, Active "L"
18	GND	System ground
19	VDD	Power supply for analog, digital, I/O system and booster circuit
20	AVDD	Power pin for analog circuits. Please Open This Pins
21	AVCL	A power supply pin for generating GVCL. Please Open This Pins
22	GND	System ground

General Specification

Item	Standard Value
Display Type	128 x 160 Dots
Module dimension	34.0(W) × 47.0(L) × 2.46(H)
Active Area	28.03(W) × 35.04(L)
LCD Type	a-Si TFT, Normally White TN mode, Transmissive
Screen size (inch)	1.77 inch
Viewing Direction	12 O'clock
Color Configuration	R.G.B. vertical stripe
Interface	8-bit interface for 80 system
Driver IC	ST7735S
ROHS	This product conforms the RoHS of PTC

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Power Supply Voltage	VDD	-	-0.3	+4.8	V
Power Supply Voltage	\|VGH-VGL\|	-	-0.3	30.0	V
Input Voltage	VIN	-	-0.3	VDD+0.3	V
Operating Temperature	T_OP (Ts)	Note 1	-20	+70	°C
Storage Temperature	T_ST (Ta)	Note 2	-30	+80	°C
Storage Humidity	H_D	Ta≤60°C	10	90	%RH

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Interface operation voltage	VDD	I/O supply voltage	2.5	3.0	3.3	V
Input High Voltage	V_IH	-	0.7*VDD	-	VDD	V
Input Low Voltage	V_IL	-	GND	－	0.3*VDD	V
Output High Voltage	V_OH	IOH=-0.1mA	0.8*VDD	-	VDD	V
Output Low Voltage	V_OL	IOL=0.1mA	GND	-	0.2*VDD	V
Supply Current	IDD	VDD=3.0V	-	2	3	mA

GND=0V, Ta=25°C

SKU: PH128160T068-LAA11

Brand: Powertip

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€6.90

€6.30

€5.40

€4.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€6.90 excl tax
