PH102600T013-ZHC05

Picture of PH102600T013-ZHC05 Picture of PH102600T013-ZHC05
TFT 7" 1024x600 LCD Panel, Interface RGB, Wide View Angle (IPS), High Brightness 1000cd/m², Capacitive touch panel I2C interface (GG, HY4635 IC), V-Com, B/L Power on FPC

DESCRIPTION

PH102600T013-ZHC05 is a 7-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



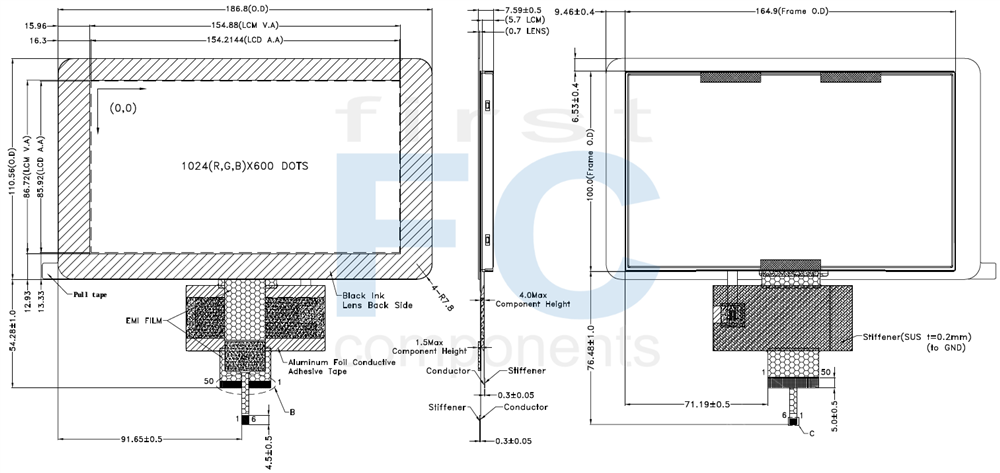

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Data Enable
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  NC  No Connect
46  NC  No Connect
47  NC No Connect
48  NC  No Connect
49  /RESET  Global Reset (Low Active)
50  GND   Power ground



CTP Interface

Pin
Number		SymbolFunction
1 GND Ground
2 TPVDD Power Supply for CTP
3 SCL I2C Clock
4 SDA I2C Data
5 INT

The interrupt from the CTP to the Host

H: ctp interrupt not requested

L:CTP request interrupt
6 RESET RESET for CTP

General Specification

ItemStandard Value
Display Resolutions 1024 × 3(RGB) x 600 Dots
LCD Type Full View Angle,  Normally black, Transmissive type
Screen size (inch)

7.0 inch
Color configuration RGB - Strip
Interface RGB Interface
Other (controlled/driver IC)

ST5021-G3-1 + ST5651CB-G3-1

(or Compatible IC)
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 3.96 V
Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
Operating Temperature TOP(Ts) Note 1 -20 +70 °C
Storage Temperature TST (Ta) Note 2 -30 +80 °C

Note 1. Ts is the tempeature of panel's surface

Note 2: Ta is the ambient temperature of samples

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 12 V
Input Voltage for TFT Panel VIH - 0.7VDD - VDD V
VIL - 0 － 0.3VDD V
Supply Current for TFT Panel IDD IDD@VDD=3.3V - 140 210 mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - 1.0 1.5 A
Supply Current for Backlight Unit ICC ICC@VCC=12V - 400 600 mA
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 0.1 - 8 KHz



SKU: PH102600T013-ZHC05
Brand: Powertip
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€67.60
€60.20
€57.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€67.60 excl tax

DESCRIPTION

PH102600T013-ZHC05 is a 7-inch display, featuring IPS /with V com, BL power, high brightness.

Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 GND Power ground
2 VDD Power for Digital Circuit
3 VDD Power for Digital Circuit
4 VCC Power for LED backlight
5 VCC Power for LED backlight
6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
7 GND Power ground
8 R0 Red Data
9 R1

Red Data
10 R2 Red Data
11 R3 Red Data
12 GND Power ground
13 R4

Red Data
14 R5 Red Data
15 R6 Red Data
16 R7 Red Data
17 GND Power ground
18 G0 Green Data
19 G1 Green Data
20 G2 Green Data
21 G3 Green Data
22 GND Power ground
23 G4 Green Data
24 G5 Green Data
25 G6 Green Data
26 G7 Green Data
27 GND Power ground
28 B0 Blue Data
29 B1 Blue Data
30 B2

Blue Data
31 B3 Blue Data
32 GND Power ground
33 B4 Blue Data
34 B5 Blue Data
35 B6 Blue Data
36 B7 Blue Data
37 GND Power ground
38 HS Line synchronization signal. Horizontal Sync Input.
39 VS Frame synchronization signal. Vertical Sync Input.
40 GND Power ground
41 DE Data Enable
42  GND Power ground
43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
44  GND Power ground
45  NC  No Connect
46  NC  No Connect
47  NC No Connect
48  NC  No Connect
49  /RESET  Global Reset (Low Active)
50  GND   Power ground



CTP Interface

Pin
Number		SymbolFunction
1 GND Ground
2 TPVDD Power Supply for CTP
3 SCL I2C Clock
4 SDA I2C Data
5 INT

The interrupt from the CTP to the Host

H: ctp interrupt not requested

L:CTP request interrupt
6 RESET RESET for CTP

General Specification

ItemStandard Value
Display Resolutions 1024 × 3(RGB) x 600 Dots
LCD Type Full View Angle,  Normally black, Transmissive type
Screen size (inch)

7.0 inch
Color configuration RGB - Strip
Interface RGB Interface
Other (controlled/driver IC)

ST5021-G3-1 + ST5651CB-G3-1

(or Compatible IC)
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
Power Supply for TFT Panel VDD GND=0 -0.3 3.96 V
Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
Operating Temperature TOP(Ts) Note 1 -20 +70 °C
Storage Temperature TST (Ta) Note 2 -30 +80 °C

Note 1. Ts is the tempeature of panel's surface

Note 2: Ta is the ambient temperature of samples

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
Power Supply for Backlight Unit VCC GND=0V 5 12 12 V
Input Voltage for TFT Panel VIH - 0.7VDD - VDD V
VIL - 0 － 0.3VDD V
Supply Current for TFT Panel IDD IDD@VDD=3.3V - 140 210 mA
Supply Current for Backlight Unit ICC ICC@VCC=5V - 1.0 1.5 A
Supply Current for Backlight Unit ICC ICC@VCC=12V - 400 600 mA
Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
VPL GND=0V - - 0.4 V
Dimming Clock Rate fP GND=0V 0.1 - 8 KHz



Products specifications
Brand Powertip
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller HY4635
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller HY4635
Preferred - Not Preferred Preferred
