    PCAP Monitor / TFT 4.3" CPT Replace

    PCAP Monitor / TFT 4.3" CPT Replace
    • PCAP Multi Touch Ultra Protection for Monitor Open Frame / Panel Mount. HDMI-VGA Display Interface & USB-I2C-UART PCAP Interface
    • TFT 4.3" WQVGA (480x272) V Panel in Replacement of the EOL Glass CPT  (Chunghwa Picture Tubes Ltd)


    PCAP Multi Touch Ultra Protection for Monitor Open Frame / Panel Mount. HDMI-VGA Display Interface & USB-I2C-UART PCAP Interface

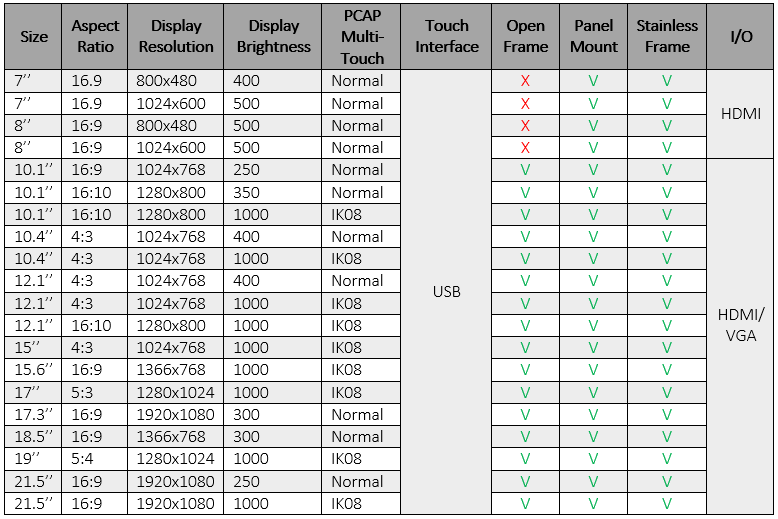

    Touch Screen Monitor

    • Monitor sizes 7’’~21.5’’ (WVGA-WSVGA-XGA-WXGA-SXGA-HD1080)
    • Monitor type: Open Frame / Panel Mount
    • I/O: HDMI / DVI / VGA / DP
    • PCAP Multi-Touch Interface: USB
    • Optional Features: IK08~IK09 Protection Optical Bonding

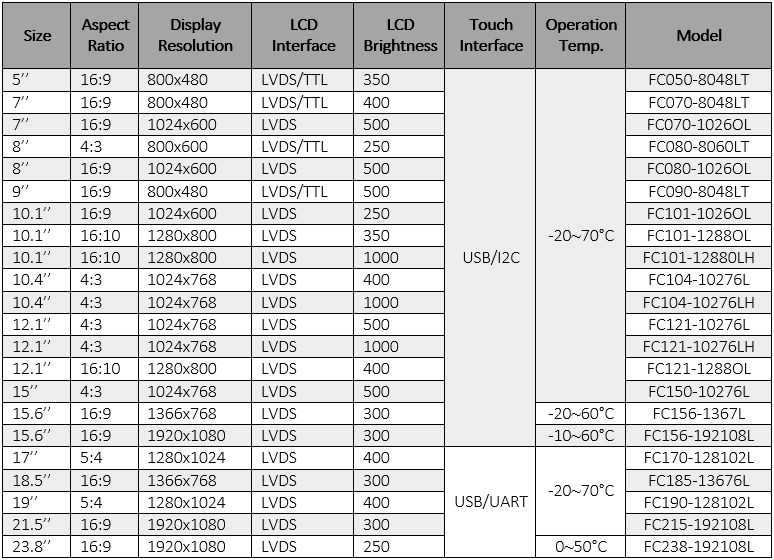

    Multi-Touch Display

    • Display sizes 5’’~32’’ (LVDS/TTL interface)
    • Display Brightness: 350~1000nits
    • Touch interface: USB/I2C
    • Lamination 1: Air Bonding (3M VHB)
    • Lamination 2: Optical Bonding (OCA, OCR)
    • Optional Features: Display Kits (A/D boards)

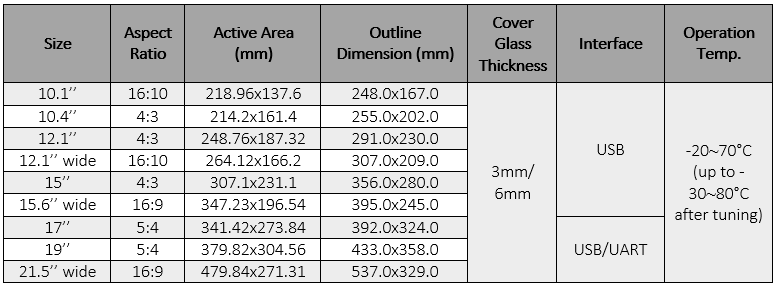

    PCAP Multi Touch - Ultra Protection

    • Touch panel sizes 10.1’’~21.5’’
    • Tempered Top Glass with Black Window Printing
    • Ceramic Printing to Resist UV (6mm glass model)
    • Up to IK09 Impact Resistance (6mm glass model)
    • Solid Connection with Rectangular Connector
    • Low Resistance Sensor – Great SNR and Linearity
    • High Driving Voltage Controller – CS 10Vrms, RS 50V/m

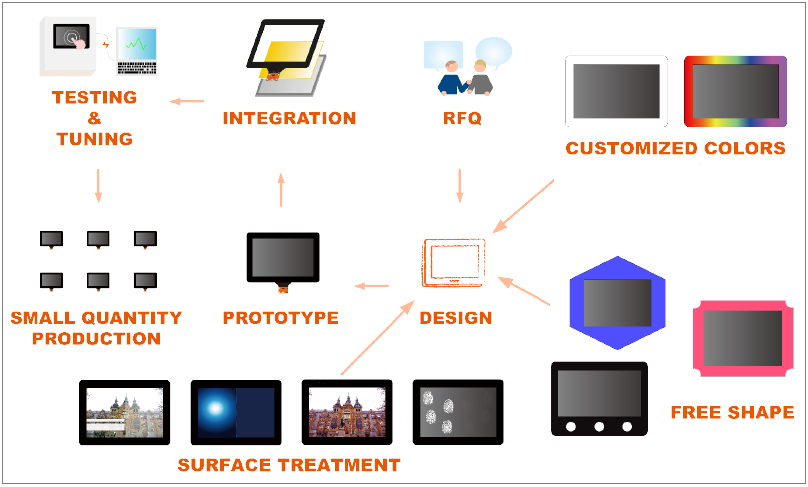

    PCAP Multi Touch - General Purpose and Customization

    • Standard Lineup: 5’’~32’’ compatible to common LCDs (AUO, Innolux, IVO)
    • Easy Customization and Small Quantity production
    • Over 90% Transparency
    • Surface Hardness over 7H (pencil hardness)



    For more information about P/Ns, quotations and technical documentations please contact us sending an e-mail to [email protected]. We’ll contact you soon with our feedback.







    TFT 4.3" WQVGA (480x272) V Panel in Replacement of the EOL Glass CPT  (Chunghwa Picture Tubes Ltd)

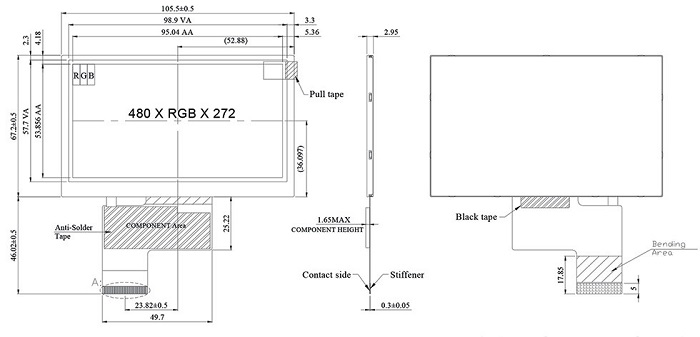

    WF43V*** is a WQVGA (480x272) diagonal size 4.3'' color TFT. It is built in with ST7282-G4-1L driver IC and supports 24-bit RGB interface. It’s available without touch panel or with Resistive / Capacitive Touch Screen. WF43V*** is the New Family that has replaced WF43H*** Family which adopted the EOL CPT (Chunghwa Picture Tubes Ltd) TFT Panel

    • Module dimension: 105.5(W) x 67.2(H) x 2.95(D) mm
    • Active area: 95.04 x 53.856 mm
    • Dot pitch: 0.066 x 0.198 mm
    • LCD type: TFT, Normally White, Transmissive
    • Aspect Ratio: 16:09
    • Backlight Type: LED, Normally White
    • Touch Panel: PCAP / RTP optional
    • Normal / High brightness (up to 1000nits)
    • Standard / Wide view angle (O-Film technology)
    • Surface: glare
