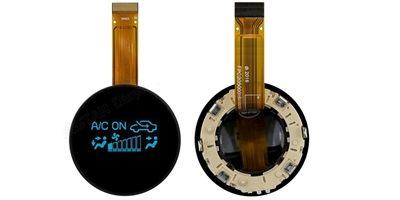

OLED with Circular Encoder Knob 0.96'' 128x64 pixels
COG OLED Encoder Module with Rotary Switch suitables for applications that require a Control Knob such as smart home applications, intelligent technology devices, audio systems, etc. It is built in with SSD1306 IC and supports 4-line SPI and I2C interface. Supply voltage (VCI) minimum 1.65V - maximum 3.3V, 1/64 driving duty. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.
- Size: 0.96''
- Dot Matrix: 128 x 64 Dots
- Module dimension: Ø39.4 x 24.8mm
- Active Area: 21.74 x 10.86mm
- Pixel Size: 0.148 x 0.148mm
- Pixel Pitch: 0.17 x 0.17mm
- Display Mode: Passive Matrix
- Panel type: OLED
- Color: White/Yellow/Blue
- Duty: 1/64
- Controller IC: SSD1306
- Interface: 4-wire SPI,I2C
Other Available Versions
● WEO128128W#D0DK-FC (Knob Touch Encoder)
● WEO128128W#D0D-FC (Circular Touch OLED)
Contact us for other versions...
