OLED Display with Built-in Power Board for Easy Integration with Every App

OLED Display with Built-in Power Board  for Easy Integration with Every App
  • Available Sizes from 0.49'' to 5.5''
  • Strip-Pin Connector (only 4 or 6pins) and/or Soldering-Pad 2,45mm Pitch
  • Easy Assembly through 4 Fixing Holes on the PCB
  • Capacitive Touch Panel Integrated in the Main Connector

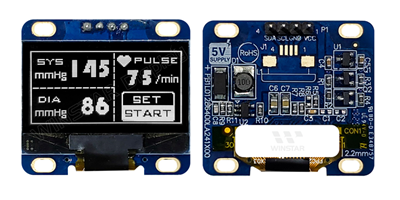

Our COG-COF OLED Displays with Built-in Power Board are designed to help customers to Reduce Time-To-Market and to provide an easy & quick way for OLED panel setup. Wide range of product sizes from 0.49'' to 5.5'' in different resolutions and colors. Easy connecting function (Strip-Pin / Soldering-Pad 2,45mm pitch). Capacitive Touch option is available on some sizes with cable integrated in the main connector. 4 holes allow an easy fixing of the modules in all applications: smart home applications, medical devices, measuring instruments, etc.

Modules Architecture:

FC Featured Products:



2.93'' Character 20x2, Yellow/ White color, Interface 6800, 8080, SPI, I2C WEP2002L#AP3N00001-FC



2.89'' Character 20x4, Yellow/ White color, Interface 6800, 8080, SPI, I2C WEP2004W#C00-FC



0.71'' Graphic 64x48, Yellow/ White/ Sky-Blue color, Interface I2C WEA4864L#A00-FC

 ________________________________________________________________________________________________




0.49'' Graphic 64x32, Yellow/ White/ Sky-Blue color,  Interface I2C WEA6432W#A00-FC



0.66'' Graphic 64x48, Yellow/ White color, 4 Pins, Glare, Interface I2C  WEA6448L#A00-FC



0.84'' Graphic 96x16, Yellow/ White/ Sky-Blue color, Interface I2C WEA9616W#A00-FC

  ________________________________________________________________________________________________



1.1'' Graphic 96x64, Yellow/ White color, Anti-glare, Interface SPI WEA9664L#B00-FC   2.23'' Graphic 128x32, PCAP, Yellow/ White color, Interface 6800, 8080, SPI ,I2C, WEP12832W#A8D-FC   0.91'' Graphic 128x32, Yellow/ White color, Glare,  Interface SPI WEA12832W#D00-FC
 ________________________________________________________________________________________________



1.04'' Graphic 128x32, White color only, 3~5V, Glare, Interface SPI WEA12832W#E00-FC   0.91'' Graphic 128x32, Yellow/ White/ Sky-Blue color, Interface I2C WEA12832W#F00-FC   1.54'' Graphic 128x64, Yellow/ White, 3~5V, Anti-glare, Interface SPI WEA12864W#A01-FC
________________________________________________________________________________________________



0.96'' Graphic 128x64, Yellow/ White/ Blue color, Interface I2C WEA12864L#D00-FC   2.7'' Graphic 128x64, PCAP, Yellow/ White color, Interface 6800, 8080, SPI, I2C WEP12864W#QP3D00000-FC   1.28'' Graphic 128x64, Yellow/ White color, 3~5V, Interface I2C WEA12864L#L00-FC
________________________________________________________________________________________________



1.5'' Graphic 128x128, White, COG+PCB, 3~5V, Anti-glare, Interface I2C WEA128128W#A05-FC   1.92'' Graphic 160x128, Yellow/ White color, Interface 6800, 8080, I2C, SPI WEA160128L#AP3N00000-FC   2.08'' Graphic 256x64, Yellow/ White color, 3~5V, Interface SPI WEA25664W#A01-FC
________________________________________________________________________________________________



3.12'' Graphic 256x64, Yellow/White/Sky-blue color, Interface 6800 ,8080, SPI WEN25664L#BAP3N00000-FC   3.12'' Graphic 256x64, PCAP, Yellow/White/Sky-blue color, Interf. 6800,8080, SPI WEN25664W#BP3D00000-FC   5.5'' Graphic 256x64, PCAP, Yellow/ Green color, Interface 6800, 8080, SPI WEN25664L#DP3D00000-FC
________________________________________________________________________________________________



For more information contact us @ [email protected]
