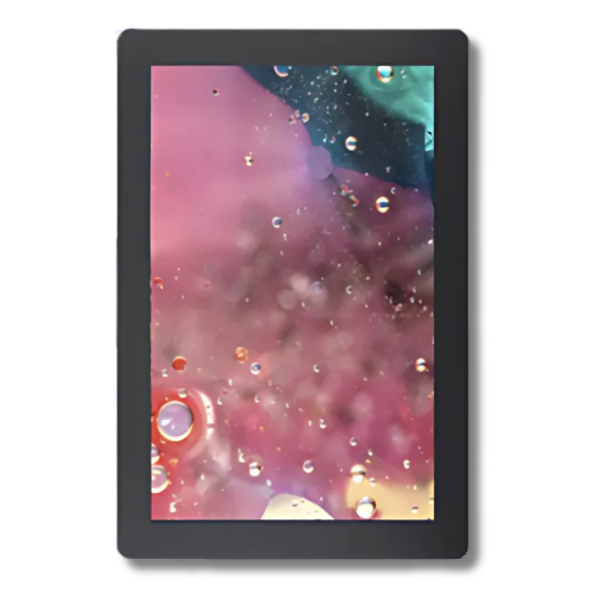

NT080-C001JD
NT080-C001JD
TFT 8" 1920x1200 LCD Panel, Interface MIPI (4-lanes), Super High Brightness 1500cd/m², Wide View Angle (IPS), Capacitive touch panel USB interface (GG, EXC80W32, OCA Bonding)

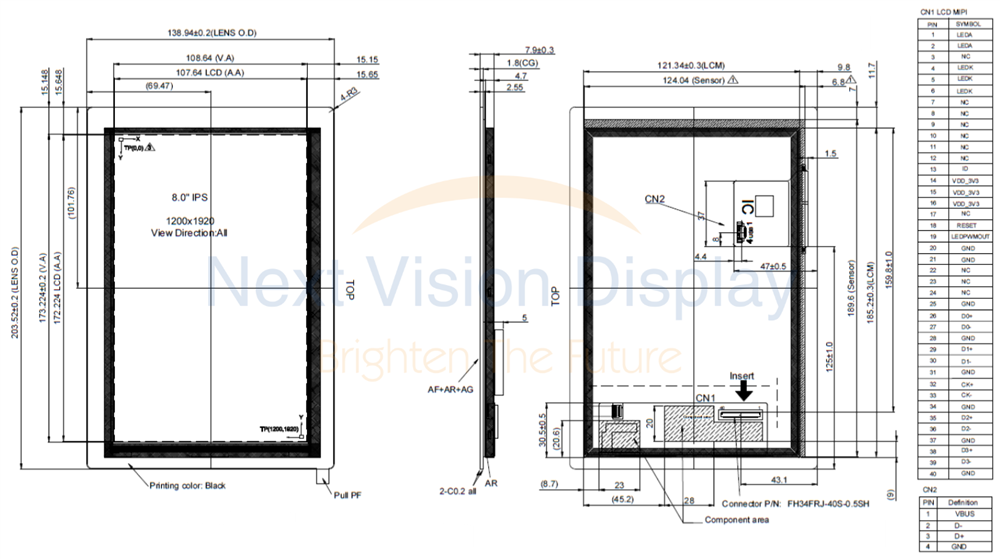

DRAWING
SPECIFICATIONS
General Specifications
LCM
Item
Standard Vakues
Unit
LCD type
8.0" TFT
Dot arrangement
1200 x R.G.B. x 1920
dots
Color filter array
RGB vertical stripe
Display mode
Normally Black
Module size
138.94(W) x 203.52(H) x 7.9(T)
mm
Active area
107.64(W) x 172.224(H)
mm
Interface
MIPI-4 lane
Operating temperature
-20 ~ +70
°C
Storage temperature
-30 ~ +80
°C
Weight
320
g
CTP
Item
Standard Vakues
Unit
Touch Panel Size
8.0"
Touch type
Projective capacitive touch panel
Input Method
Finger / 5 Points touch
Output Interface
USB
Hardness
≧7H
IC
EXC80W32
Operating temperature
-20 ~ +70
°C
Storage temperature
-30 ~ +80
°C
Absolute Maximum Ratings
Item
Symbol
Min
Max
Unit
LCM Supply Voltage
VDD_3V3
-0.3
3.6
V
CTP Supply Voltage
VBUS
-0-3
5.5
V
DC Characteristics
Parameters
Item
Symbol
Min.
Typ.
Max.
Unit
Power Voltage
VDD_3V3
3.0
3.3
3.6
V
Input logic high voltage
V
IH
0.7*VDD
-
VDD
V
Input logic low voltage
V
IL
GND
-
0.3*VDD
V
Current for Power
I
DD
80
140
mA
CTP Parameters
Item
Symbol
Min.
Typ.
Max.
Unit
Power Voltage
VBUS
4.5
5.0
5.5
V
Input logic high voltage
V
IH
0.6* CTP_VDD
-
CTP_VDD+0.5
V
Input logic low voltage
V
IL
0
-
0.3* CTP_VDD
V
Output High Voltage
V
OH
0.7* CTP_VDD
-
-
V
Output Low Voltage
V
OL
-
-
0.3* CTP_VDD
V
Interface
LCM PIN Definition
Pin
Pin Name
Description
1
LEDA
LED backlight (Anode)
2
LEDA
LED backlight (Anode)
3
NC
No connection
4
LEDK
LED backlight (Cathode)
5
LEDK
LED backlight (Cathode)
6
LEDK
LED backlight (Cathode)
7
NC
No connection
8
NC
No connection
9
NC
No connection
10
NC
No connection
11
NC
No connection
12
NC
No connection
13
ID
ID [4:1] These pins select LCM type
14
VDD_3V3
Power supply: +3.3V
15
VDD_3V3
Power supply: +3.3V
16
VDD_3V3
Power supply: +3.3V
17
NC
No connection
18
RESET
Global reset pin
19
LEDPWMOUT
The PWM frequency output for LCD driver control
20
GND
Ground
21
GND
Ground
22
NC
No connection
23
NC
No connection
24
NC
No connection
25
GND
Ground
26
D0+
DSI Data differential signal input pins. (Data lane0)
27
D0-
DSI Data differential signal input pins. (Data lane0)
28
GND
Ground
29
D1+
DSI Data differential signal input pins. (Data lane1)
30
D1-
DSI Data differential signal input pins. (Data lane1)
31
GND
Ground
32
CK+
DSI CLOCK differential signal input pins.
33
CK-
DSI CLOCK differential signal input pins.
34
GND
Ground
35
D2+
DSI Data differential signal input pins. (Data lane2)
36
D2-
DSI Data differential signal input pins. (Data lane2)
37
GND
Ground
38
D3+
DSI Data differential signal input pins. (Data lane3)
39
D3-
DSI Data differential signal input pins. (Data lane3)
40
GND
Ground
SKU:
NT080-C001JD
Brand:
Next Vision Display
Available:
Yes
Be the first to review this product
Accessory Kit
FFC Cable
-- Details Below in 'Related Products' --

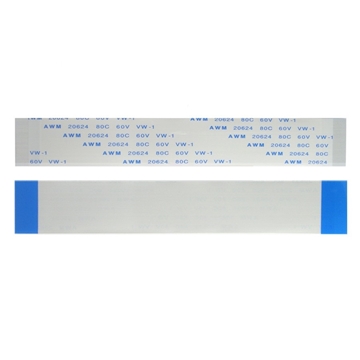

SML2CD40X42BDX6BL-P0.5-S4 [+€4.90]
FC000932K21XXXXXXX00 [+€2.80]
SML2CD40X92BDX6BL-P0.5-S4 [+€4.90]

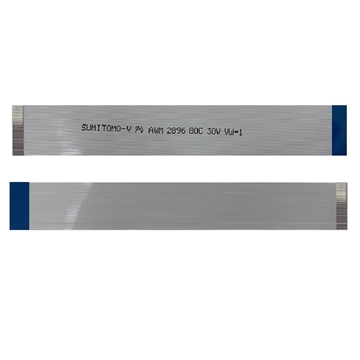

SML2CD40X142ADX6BL-P0.5-S4 [+€4.90]
SML2CD40X142BDX6BL-P0.5-S4 [+€4.90]
Display Connector
-- Details Below in 'Related Products' --
CNR5231XXXXXXXXXXX01 [+€2.80]
CNR6231XXXXXXXXXXX00 [+€2.80]
CNR6231XXXXXXXXXXX02 [+€2.80]

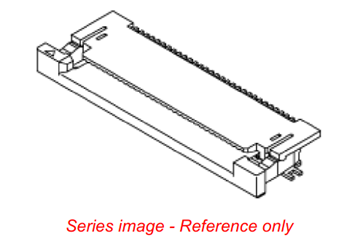

MOLEX_54104-4033 [+€3.00]

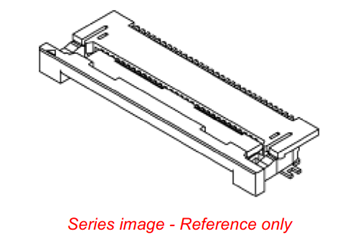

MOLEX_54132-4033 [+€2.80]
Price Breaks
Quantity
1+
5+
10+
Price
€249.30
€231.50
€223.50
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€249.30 excl tax
